5VDC 6KM 4 Port USB2.0 Over Fiber UTP Extender
4-Port USB 2.0 over Fiber/UTP Extender support all kinds of USB device
Model: LNK-U4TF1-2.0

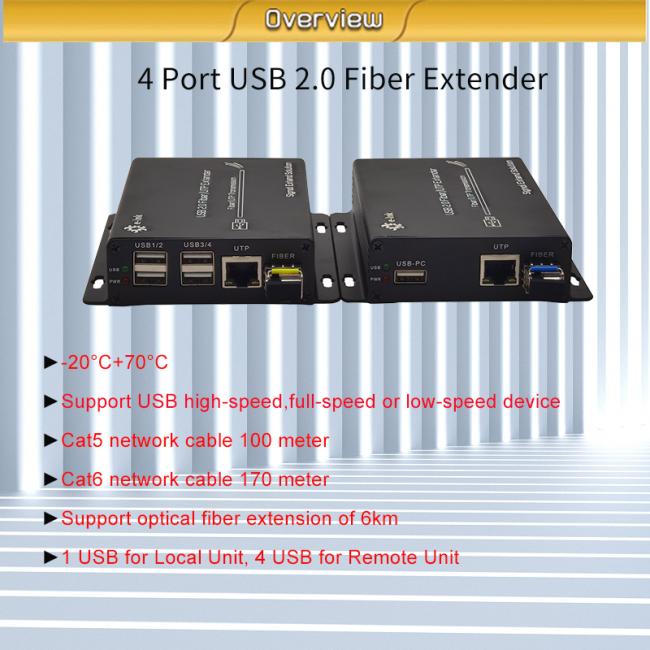

Overview
E-link 4 Port USB 2.0 Fiber/UTP Optic Extender support both Fiber and UTP cable transmission.
This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes the extension of USB signal more than 100 Meter through the network cable. The use of optical fiber cable can extend the distance up to 6KM.
The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

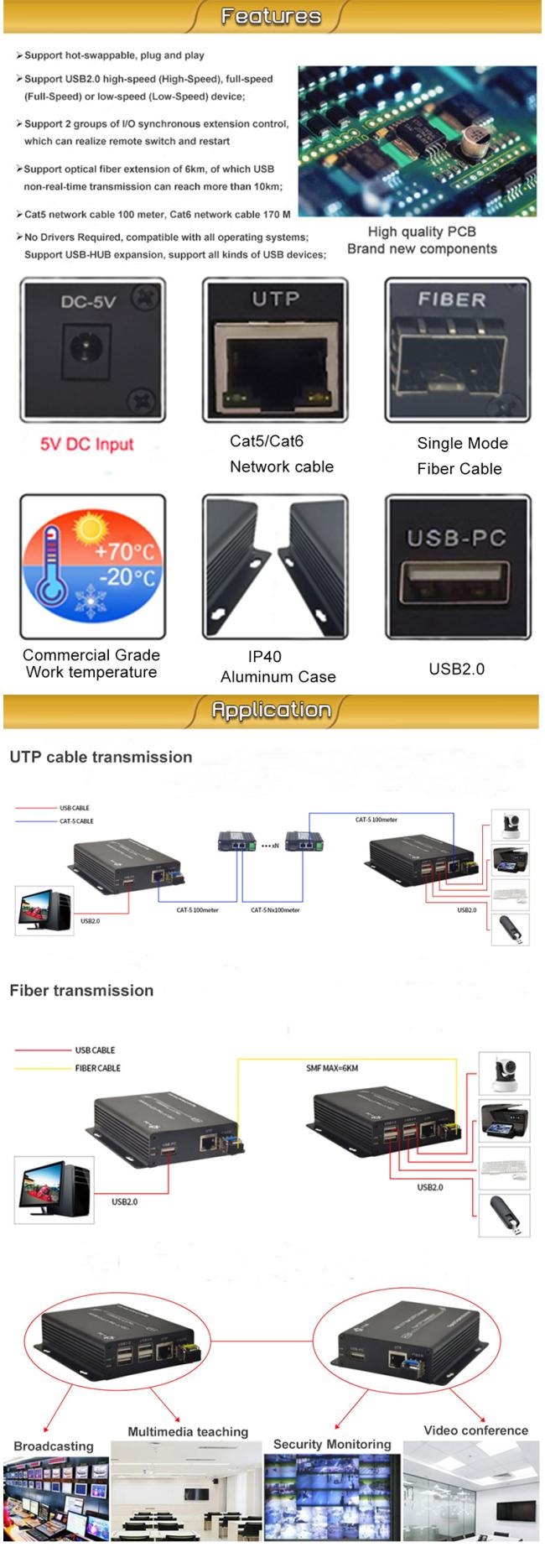

Features
Technical Indexes
| Optical | Connector | Simplex LC |
| Wave length | 1310nm/1550nm | |
| Max. Distance | 6KM | |
| USB2.0 | Input/Output | USB2.0 Type-A Female |
| Physical | Size (L× W ×H) | 104mm x104mm x28mm |
| Case | Aluminum | |
| Color | Black | |
| N.W. | 0.75Kg | |
| Power | Voltage | 5V DC |
| Power consumption | <5W | |
| Environment | Working temperature | -20℃~70℃ |
| Storage temperature | -40~85℃ | |
| Humidity | 0-95% (non-condensing) |
Ordering Information
| Model | Description |
| LNK-U4TF1-2.0 | 4-port USB 2.0 Fiber/UTP extender, 1 USB for Local Unit, 4 USB for Remote Unit, up to 6KM via Single Mode fiber cable, up to 170m via Cat6 cable |
