1550nm 3G SDI FC PC Video Over Fiber Converters 1080P Single Mode
Price:
USD789/Paris
MOQ:
1pairs
Delivery Time:
3-5 working days
Brand:
E-link
Product Description

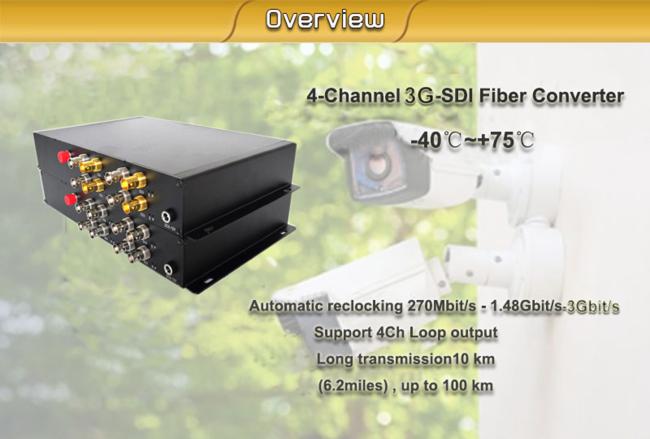

4-Channel 3G-SDI 1080P 3G-SDI Signal Video over Fiber Converters
Product Description
LNK-SDI-4V Series supports 4-channel 3G-SDI standard high-definition video signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber. The video quality is up to broadcast standard. It has been widely used in all large-scale multimedia video recording, high-definition display, Information release and press center,Traffic guidance and information display system, Outdoor large screen display system, Large stage show and entertainment centers, live TV, multimedia conferences, Military command and exercises and other fields.
Technical Indexes
| Serial TV, BNC Input | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
| 270Mbit/s - 1.48Gbit/s – 3Gbit/s | |
| Input number: 4 | |
| Reflection loss: >15DB | |
| Equilibrium: 0-150m @3Gb/s | |
| Connector: FC/PC(SC/PC optional) | |
| Optics | Channel: 1 |
| Type: single-mode | |
| Wavelength: 1310nm /1550nm | |
| Transmission distance (550m-100Km) | |
| Reflection loss: > 15dB | |
| Dithering: < 0.2UI | |
| Connector: FC/PC (SC/PC optional) | |
| Serial TV, BNC output (EO/OE) | Output number:4 |
| Signal level: 800mV nominal | |
| Rise/fall time: 200ps indication | |
| Overshoot: < 10% amplitude | |
| Reflection loss: >15dB | |
| Dithering: < 0.2UI | |
| Connector: 75Ω BNC | |
| Analog audio | Input/ output impedance: 600Ω equilibrium |
| Input/output interface: XLR | |
| Max. input/output level: +15 dBu | |
| Frequency Response: 20Hz-20KHz,±0.1dB | |
| SNR: > 85dB(A weighted) | |
| THD+N: < 0.01%@1KHz | |
| Crosstalk: < -90dB | |
| SDI video format supports |
625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24//25/30/50/60; 1080i 23/24/30/50/59.94; |
