HD-SDI 1080P HD-SDI Signal Video over Fiber Converters
Price:
USD559/Paris
MOQ:
1pairs
Delivery Time:
3-5 working days
Brand:
E-link
Product Description

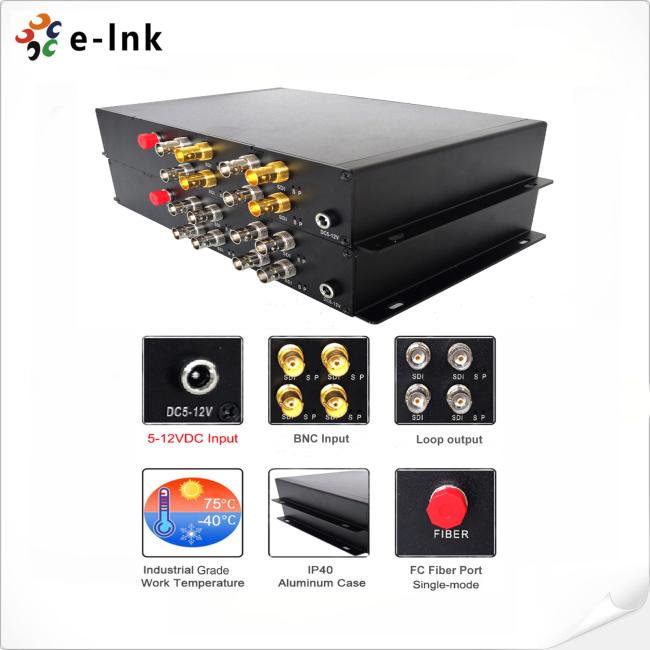

4-Channel HD-SDI 1080P HD-SDI Signal Video over Fiber Converters
Product Description
Technical Indexes
| Serial TV, BNC Input | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
| 270Mbit/s - 1.48Gbit/s | |
| Input number: 4 | |
| Reflection loss: >15DB | |
| Equilibrium: 0-150m @1.485Gb/s | |
| Connector: FC/PC(SC/PC optional) | |
| Optics | Channel: 1 |
| Type: single-mode | |
| Wavelength: 1310nm /1550nm | |
| Transmission distance (550m-100Km) | |
| Reflection loss: > 15dB | |
| Dithering: < 0.2UI | |
| Connector: FC/PC (SC/PC optional) | |
| Serial TV, BNC output (EO/OE) | Output number:4 |
| Signal level: 800mV nominal | |
| Rise/fall time: 200ps indication | |
| Overshoot: < 10% amplitude | |
| Reflection loss: >15dB | |
| Dithering: < 0.2UI | |
| Connector: 75Ω BNC | |
| Analog audio | Input/ output impedance: 600Ω equilibrium |
| Input/output interface: XLR | |
| Max. input/output level: +15 dBu | |
| Frequency Response: 20Hz-20KHz,±0.1dB | |
| SNR: > 85dB(A weighted) | |
| THD+N: < 0.01%@1KHz | |
| Crosstalk: < -90dB | |
| SDI video format supports | 625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30; 1080i 23/24/30; |
