1.25G SM LC HDMI Over Fiber Optic Extender 4 Port USB 2.0 5W
Price:
129/pair
MOQ:
1 pair
Delivery Time:
5-8working days
Brand:
E-link
Product Description

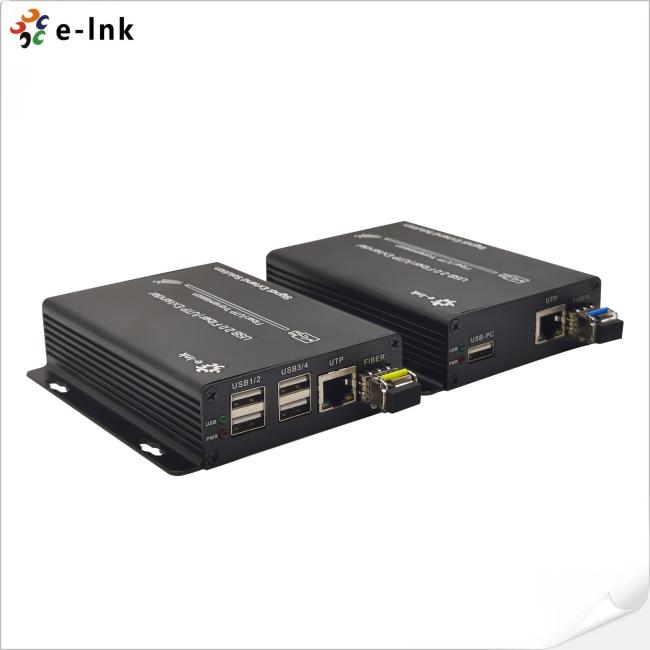

4 Port USB 2.0 Fiber Extender
Overview
4 Fort USB 2.0 Fiber Optic Extender, Also called 4 Fort USB2.0 to Fiber Converter.
This device breaks through the USB transmission distance limit of no more than 5 Meter, and realizes
the extension of USB signal more than 100 Meter through the network cable.
The use of optical fiber cable can extend the distance up to 6KM.
The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Features
► Support USB high-speed (High-Speed), full-speed (Full-Speed) or low-speed (Low-Speed) device;
► Support USB-HUB expansion, support all kinds of USB devices;
► No need to install additional software, compatible with all operating systems;
► Support hot-swappable, plug and play;
.
► Cat5 network cable 100 meter, Cat6 network cable 170 meter;
► Support optical fiber extension of 6km, of which USB non-real-time transmission can reach more than 10km;
.
► Support 2 groups of I/O synchronous extension control, which can realize remote switch and restart.
Technical Indexes
| Optical | Connector | Simplex LC |
| Wave length | 1310nm/1550nm | |
| Max. Distance | 6KM | |
| USB2.0 | Input/Output | USB2.0 Type-A Female |
| Physical | Size (L× W ×H) | 117mm x104mm x28mm |
| Case | Aluminum | |
| Color | Black | |
| N.W. | 0.75Kg | |
| Power | Voltage | 5V DC |
| Power consumption | <5W | |
| Environment | Working temperature | -20℃~70℃ |
| Storage temperature | -40~85℃ | |
| Humidity | 0-95% (non-condensing) |
Ordering Information
| Model | Description |
| LNK-U4TF1-2.0 | 4-port USB 2.0 Fiber/UTP extender, 1 USB for Local Unit, 4 USB for Remote Unit, up to 6KM via Single Mode fiber cable, up to 170m via Cat6 cable |

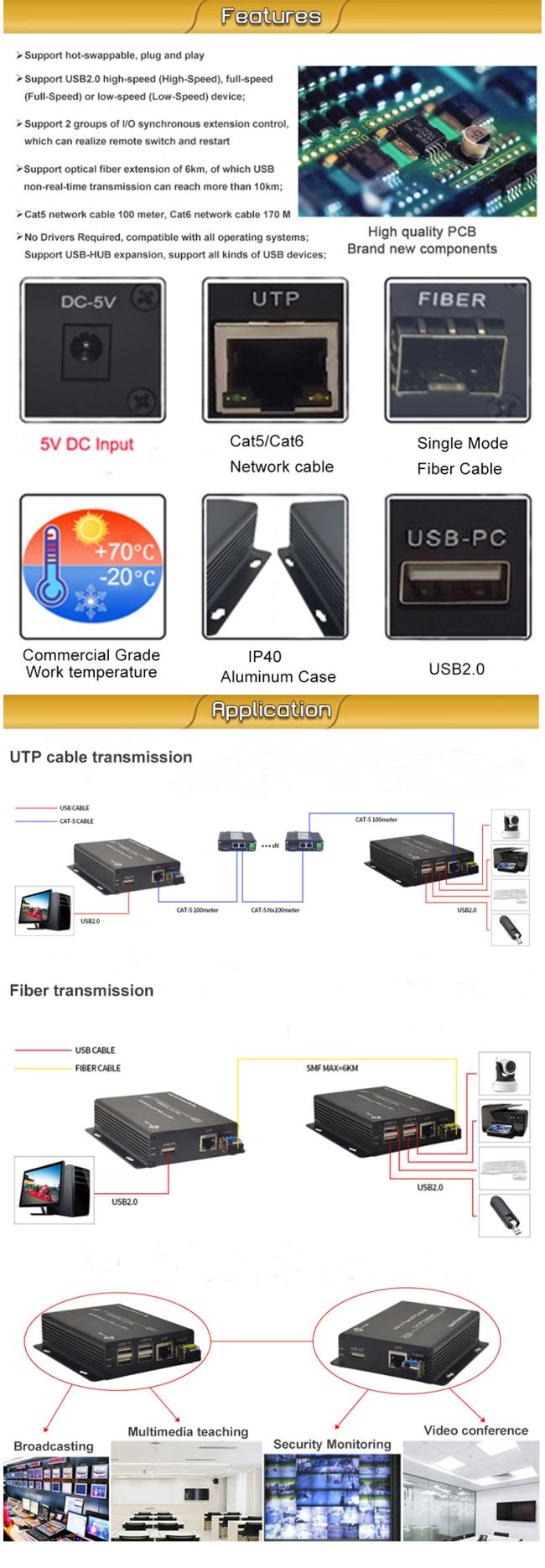

Product Pictures
