1550nm SDI To Fiber Optic Converter 3G 5W DWDM With 4Ch HDMI Output
SDI To Fiber Optic Converter 1Ch 3G-SDI Fiber Extender With 4Ch HDMI Output
3G-SDI Converter Advantages
► Transmitter with 1Ch 3G-SDI input and loop out
► Receiver with 1Ch 3G-SDI output and 4Ch HDMI output
► Fiber optic WDM/CWDM/DWDM technique
► Long transmission capability at least 10 km (6.2miles) , up to 80 km
Technical indexes
|
Video - HDMI |
|
|
Connector |
Female HDMI type A |
|
Impedance |
100Ω |
|
Resolution |
Up to 1920*1200@60Hz |
|
HDMI Cable Range |
<5Meter |
|
Electrical |
|
|
Power adaptor |
DC5V |
|
Power consumption |
<5W |
|
Mechanical |
|
|
Dimensions (LxWxH) |
Transmitter: 72 x 42 x 22 mm |
|

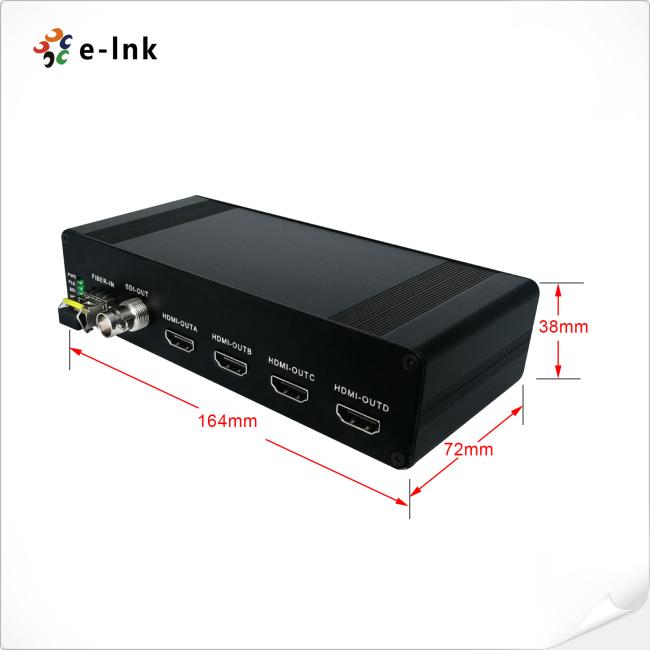

Receiver: 164 x 72 x 38 mm |
|
|
Weight |
1.5KG/pair |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
Overview
LNK-3G-1V4H Series 3G-SDI Fiber Extender supports 1-channel 3G-SDI Video (audio embedded) transmitted via fiber optical cable, and monitor the signal locally over a 3G-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes one transmitter with loop out and one receiver with 1Ch 3G-SDI and 4Ch HDMI Output.
Ordering Information
|
Model |
Description |
|
LNK-3G-1V4H |
3G-SDI Fiber Extender, Transmitter with 3G-SDI input and loop out, Receiver with 1Ch 3G-SDI output and 4Ch HDMI output, SMF, LC Fiber Connector 20KM, used by pairs |
