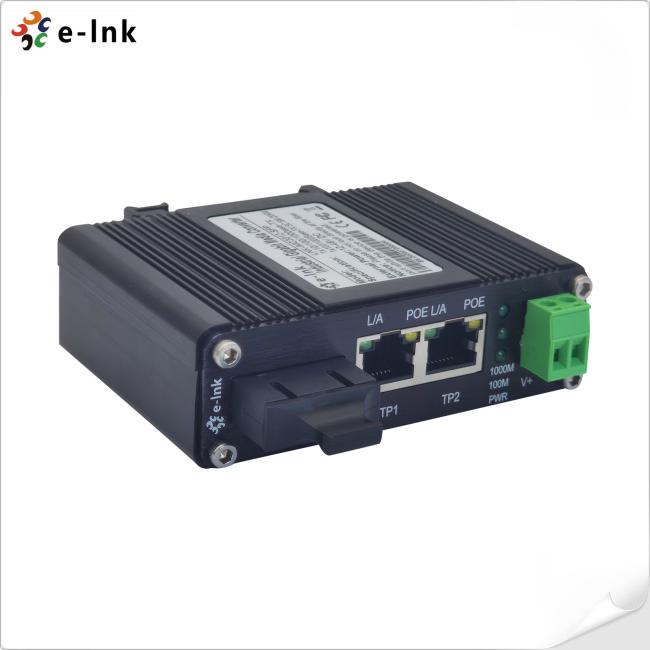

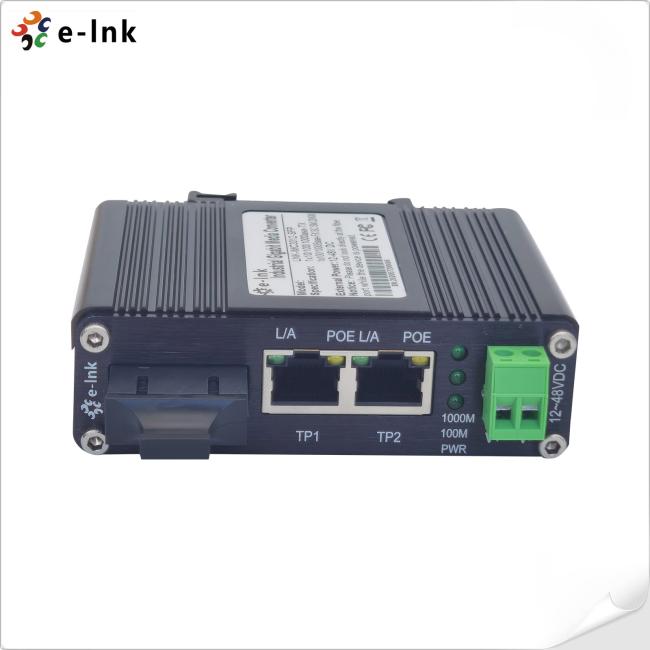

Aluminum Case POE Fiber Media Converter 15.4W 1 Port 1000X To 2 Port 10/100/1000B
POE Fiber Media Converter 1-Port 1000X To 2-Port 10/100/1000B Media Converter
POE Fiber Media Converter Features
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1- Port 1000Base-X SC
Technical indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
2 x RJ45 |
|
Optical Port: |
1 x SC 1000Base-X |
Overview
The LNK-IMC1200GP Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. The Ethernet port support 30W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1200GP Series is easy to mount on a DIN rail or in distribution boxes.
Ordering Information
|
Model |
Description |
|
LNK-IMC1200GP |
Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m |
|
LNK-IMC1200GP-20 |
Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
|
LNK-IMC1200GPS-20 |
Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
