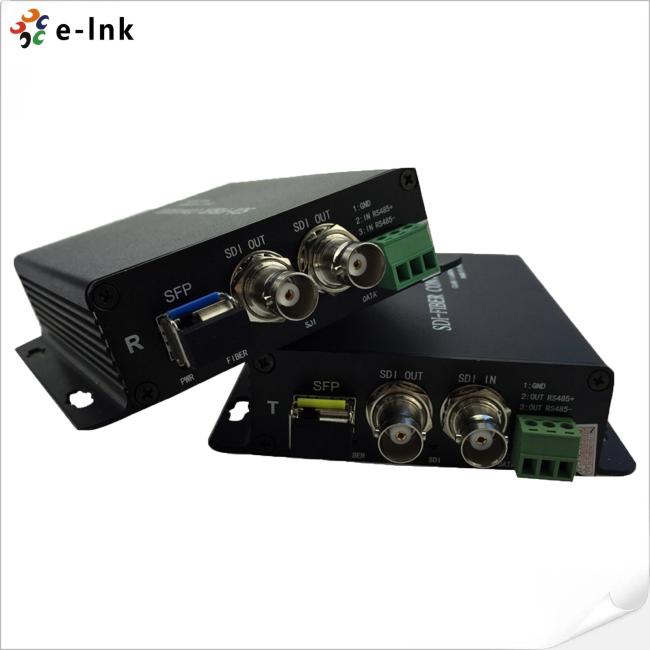

3G Simplex LC SDI Video Converter 550m RS232 With SFP Hot Plugged

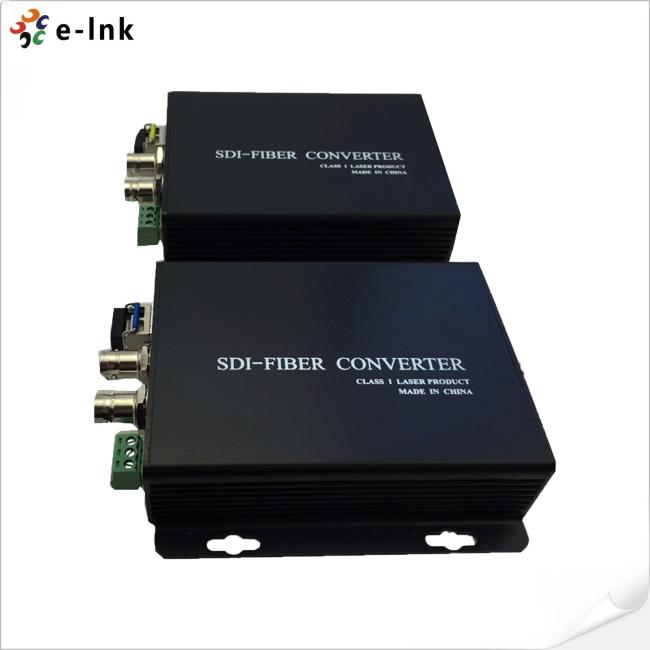

SDI To Fiber Optic Converter SD/HD/3G-SDI Video Converter With SFP Hot-Plugged
SDI Video Converter Advantages
-
Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
-
LED Status Indication to monitor the working conditions;
-
For SMPTE 292M (2.9Gb/s) clock recovery;
-
plug and play product which allows send SD-SDI / HD-SDI / 3G-SDI family digital video interfaces over single fiber.
Technical Indexes
|
Video interface |
BNC |
|
Video input / output voltage |
Typical:1Vpp,Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Data type |
RS485/RS422/RS232/Manchester |
|
Video SDI Standard |
270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI) SMPTE425M3Gb/s Mapping(3G-SDI) SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
Frequency/Rate support |
0~400K bps |
|
Working Temperature |
-40℃～ +80℃ |
|
MTBF |
≥100000 hours |
Overview
E-link’s SDI SD / HD / 3G video digital optical converter adopts international advanced all-digital gigabit optical fiber transmission technology. HD SDI video signal can be transmitted through 1 single fiber with non-distortion, high-quality, long-distance transmission .This series of video to fiber converter has Stable performance, clear picture quality, and high Stability with LED Status Indication on the body of device. At the same time, the switch value, voltage, working status and other reverse useful signal information can be controlled by data RS485. This makes our devices more flexible when different customers’ request comes.
Ordering Information
|
Model |
Description |
|
LNK-HD-SDI-XX-YY |
1 port SDI HD video digital optical converter, distance depends on SFP transceiver |
|
LNK-3G-SDI-XX-YY |
1 port SDI HD video digital optical converter, distance depends on SFP transceiver |
|
- XX |
- Fiber Type, SM - Single Mode, MM - Multi Mode, WD - WDM single fiber (single strand) |
|
- YY |
- distance in km |
