Broadcast Level SDI To Fiber Optic Converter 12G SDI To HDMI 2.0 40M 10KM Distance
SDI To Fiber Optic Converter 12G-SDI To HDMI 2.0 Audio Video Converter For Broadcast Level
SDI To HDMI Converter Advantages
► Convert 12G-SDI to HDMI 2.0b at up to 4K 60p
► SDI supports up to 12G-SDI, support 4:2:2 HDMI2.0 output
► The highest resolution is 4K 60HZ, which can be down-converted to 1080P 60HZ
► Support audio embedding and de-embedding, compatible with AES/RCA audio
► SDI supports 8 Channels for embedded audio
► Fiber SFP port available, support 12G remote transmission
Technical indexes
|
Interface Standard |
12G-SDI |
SMPTE 2082-10 |
|
6G-SDI |
SMPTE 2081-10 |
|
|
3G-SDI |
SMPTE 425-1 3GA & 3GB |
|
|
SMPTE 425-1 3GB-DS |
||
|
HD-SDI |
SMPTE 292 |
|
|
SDI Video Formats |
4096x2160; 3840x2160; 2048x1080; 1920x1080; 1280x720 |
|
|

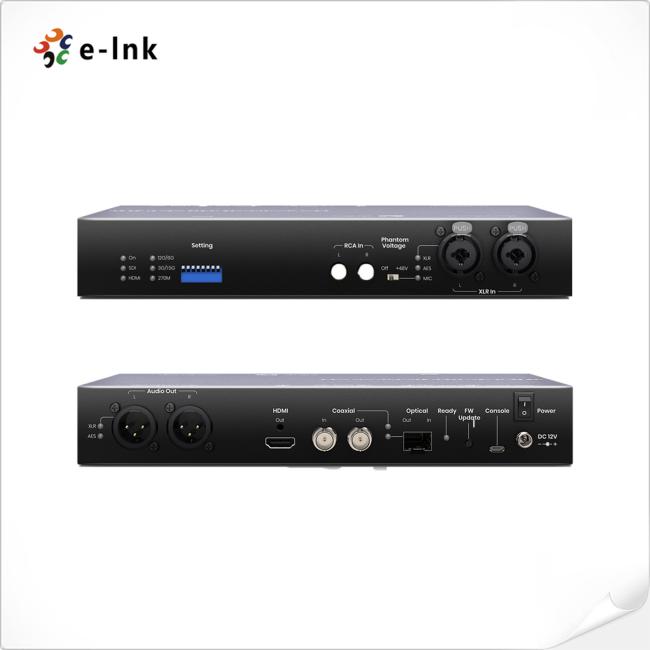

Input Interface |
1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
|
|
Output Interface |
1 x HDMI Type A, 1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
|
|
Audio Interface |
2 x XLR Male Jack |
|
|
2 x XLR Female Combo 6.4 Jack |
||
|
2 x 10KΩ RCA |
||
|
Transmission Distance |
Fiber SFP |
10KM |
|
12G-SDI |
40M |
|
|
3G-SDI |
100M |
|
|
HD-SDI |
200M |
|
Overview

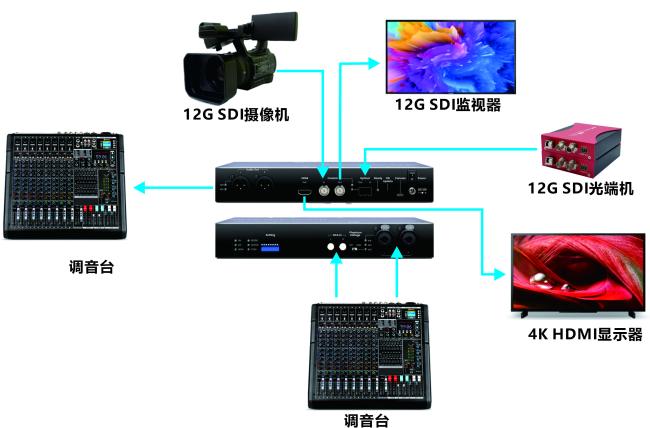

The LNK-CSH-12G is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, It’s with Fiber SFP port available, support 12G remote transmission. The LNK-CSH-12G is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.
Ordering Information
|
Model |
Description |
|
LNK-CSH-12G |
12G-SDI to HDMI 2.0 Converter, broadcast level, support audio embedding and de-embedding, compatible with AES/RCA audio, Fiber SFP port available (not including SFP modules) |
