10.2Gbps HDMI To Fiber Converter HDMI 1.4 HDCP 1.2 With EDID 60KM
HDMI Fiber Extender 4K HDMI 3D Signals LC Connector Transceivers With EDID 60KM
HDMI Fiber Converter Advantages
► Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system
Technical indexes
|
Video |
Maximum pixel clock |
340MHz |
|
Resolution range |
Up to 3840*2160@30Hz |
|
|
Connector |
Female HDMI type A |
|
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
Max 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
104*89*28mm |
Overview
The LNK-H4K100 Fiber optic extender provides long distances extension of HDMI and 3D signals over one fiber optical cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

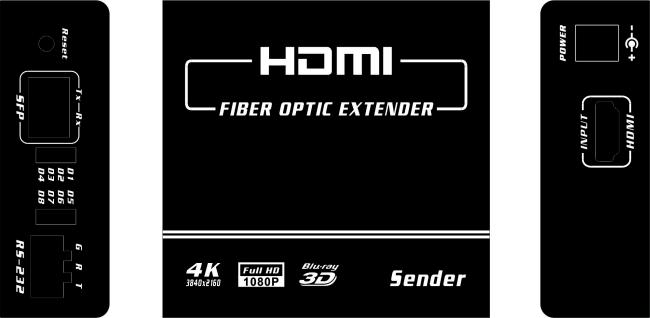

Transmitter

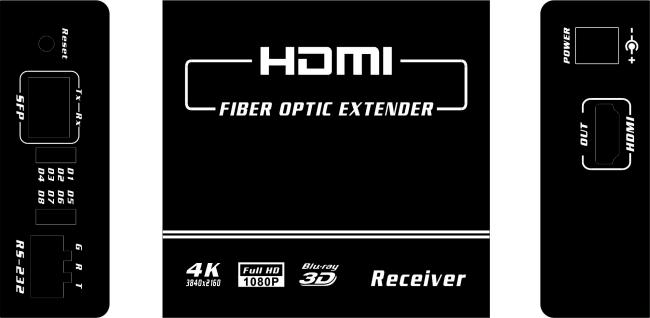

Receiver
Ordering Information
|
Model |
Description |
|
LNK-H4K100 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Multimode, LC, 300m, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-H4K100S-10 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 10km, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-H4K100S-40 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 40km, including 1 transmitter & 1 receiver, used by pairs |
