RS422 RS232 RS485 SDI To Fiber Optic Converter 1310nm 1550nm CWDM

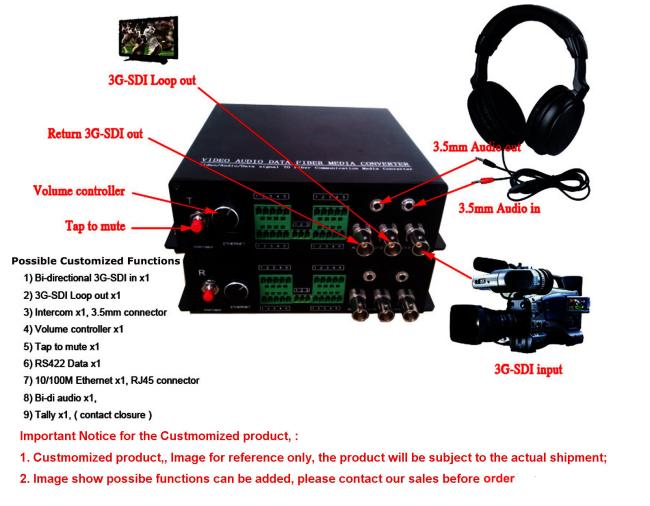

SDI Transceiver 3G/HD/SD-SDI Fiber Multiplexer With 10/100M Ethernet RS422 Tally
Fiber Optical Converter Advantages
► With Remote & Tally & Audio(Intercom) & Return video
► Automatic cable equalization to ensure signal integrity
► 10+Km on single mode fiber or 300m on multi mode fiber
► Terminal block power input, hot swapping and hot plugging
Technical indexes
|
Input power |
DC5V 3A |
|
Wavelength |
1310nm / 1550nm / CWDM |
|
Signal format |
SMPTE 424M, SMPTE 292M, SMPTE 259M |
|
Data rate |
270Mbit/s - 1.48Gbit/s - 3Gbit/s |
|
Cable Equalization |
Automatic cable EQ (Bel den 1694A cable) |
|
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
|
|
Intercom Camera Optic Adaptor |
|
|
Interface |
4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
|
Microphone |
Mic inputs with mute and pre-empt |
|
Headphone |
with volume up or down |
|
Audio |
Balance or unbalance line level |
|
Tally Camera Optic Adaptor |
|
|
Interface |
4pin air head or 3pin mini XLR |
|
Output |
Dry Contact Closure or wet +12V |
|
On: short or +12V |
|
|
Off: open or 0V |
|
|
Ethernet |
|
|
Port |
10/100 Base-T, RJ-45 connector |
|
Work mode |
Full duplex/half duplex |
Overview

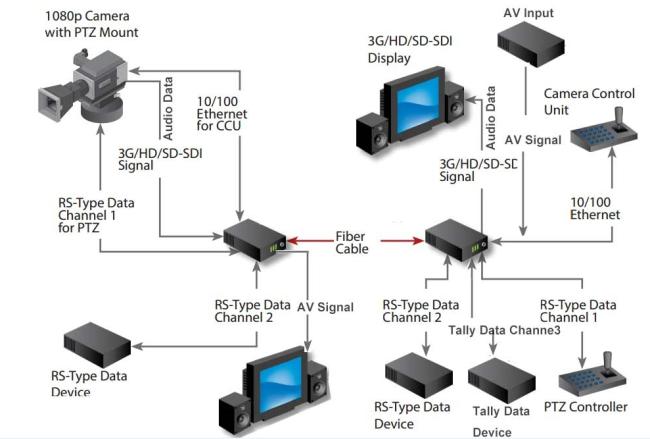

The LNK-MIDI Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to transmit 10/100 Base-T Ethernet RS422, Audio, Ethernet, Tally, Intercom & Return Video over single mode or multi mode fiber. All data channels are available simultaneously. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Remote control data, gen lock, intercom, tally, audio and 10/100M Ethernet is also provided. The system puts all of the signals needed for multi-camera 3G/HD-SDI production onto a SM/MM tactical or SMPTE hybrid fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.
Customizing Information
|
Signal Type |
Channel |
Forward |
backward |
Bi-Directional |
||||
|
1ch |
2ch |
4ch |
8ch |
Other |
||||
|
HD-SDI Video |
|
|
|
|
|
|
|
|
|
3G-SDI Video |
|
|
|
|
|
|
|
|
|
12G-SDI Video |
|
|
|
|
|
|
|
|
|
Analog Audio |
|
|
|
|
|
|
|
|
|
RS232 |
|
|
|
|
|
|
|
|
|
RS422 |
|
|
|
|
|
|
|
|
|
RS485 |
|
|
|
|
|
|
|
|
|
100M Ethernet |
|
|
|
|
|
|
|
|
|
Tally |
|
|
|
|
|
|
|
|
|
Analog Tri-level Sync |
|
|
|
|
|
|
|
|
|
Note: Please circle "✔" for what you need. |
||||||||
