NVG Compatible Infrared LED Light With Low Power Consumption For Airport Taxiway
NVG Compatible Infrared LED Light With Low Power Consumption For Airport Taxiway
Advantage
1.International advanced solar panel reaching at least 10 years service life.
2. Self-contained and low maintenance: all components are incorporated within a compact, stand-alone unit.
3. Strong anticorrosion , Rain and Snow, seismic rresistance protection and UV protection.
4. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
5. Clean, renewable, green and reliable energy source.
6. Dusk-to-dawn operation: Built-in photocell inside light can let lightwork at night and close during the day automatically.
7. More than days autonomy.
8. Recyclable batteries with the lightest environmental.
Product Description
| 1.Mode: | AH-SA/ B |
| 2.Light intensity: | ≥10cd |
| 3.Working mode: | Steady-burning mode or Flash mode |
| 4.Light source: | LED,100,000hours service life |
| 5.Solar panel: | DC3.7V,monocrystalline silicon |
| 6. Material: | -Housing: Polycarbonate -Base: die casting aluminum |
| 7.Autonomy(without sunlight): | at least 5 days(Option 20days) |
| 8.Battery: | Lithium ion battery, replaceable |
| 9.Overall Size(mm): | 162 by 162 by 160 |
| 10.Installation Size(mm): | 140 by140 by M6 |
| 11.Mass | 1Kg |
| 12.Emitting Color: | Red, green, white, yellow/ white, yellow/ white, yellow/ white, red/ white( Customized) |
| 13.Ambient Temperature: | -40℃~+60℃ |
| 14.Wind load: | 80m/s |
| 15. Protection Standard: | IP68 |
| 16. Optional: | charging port |
Function
1.Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
2. Optional Battery Charge port: 100~240VAC
3. Optional NVG-compatible infrared (IR) LEDs
Application
Emergency operations, Helipads, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting, Threshold lighting and obstruction lighting.

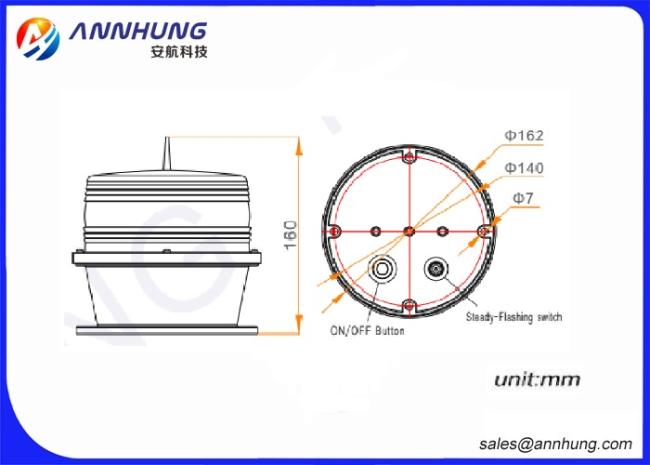

Dimension Drawing
Prodcut Picture
