Nylon Breaker Lock Out Tag Out , 60g Yellow Circuit Breaker Loto Devices
Nylon Material Yellow Color Easy To Use Circuit Breaker Lockout
Product Details:
ZC-D09 breaker lockout.
1. Made of durable and tough impact nylon.
2. Can lock out by using screw driver.
3. Can lock out with padlock shackle diameter <=7mm.
4. Can lock out all kinds of circuit breaker lockouts.
| Model No. | Description |
| ZC-D05 | Can lock handle width <=12mm medium size moulded case circuit breakers |
| ZC-D06 |
Can lock two-pole, three-pole, four-pole miniature circuit breakers |
| ZC-D07 | Can lock handle width <=7.7mm, single-pole miniature circuit breakers |
| ZC-D08-1 | Can lock handle width<=5mm small and medium size moulded case circuit breakers |
| ZC-D08-2 | Can lock handle width<=5mm small and medium size moulded case circuit breakers |
| ZC-D09 | Can lock big circuit breakers |
Application:
Safety Lockout are widely used in Chemical, Electrical, Automobile industry and so on.
•Employers, supervisors and employees all have individual responsibilities regarding lockout under the HSE Act.
•Lockout is important for operators, maintenance staff, contractors, cleaners and any other person required to work near moving parts of machinery.
The safety lockouts and equipment are environment friendly, our company is equipped to cater and offer the best safety products for different segments of industries such as Construction, Petrochemicals, Pharmaceuticals, Power plants, Mining, Iron and steel, etc. We supply various high quality and durable safety lockout devices for the safety operation and identification of hazards.
Circuit Breaker Lockout Range:
| Model No | Details | ||||||||
| ZC-D01 | Miniature Circuit Breaker Lockout, Pin Out Standard | ||||||||
| ZC-D02 | Miniature Circuit Breaker Lockout, Pin In Standard | ||||||||
| ZC-D03 | Miniature Circuit Breaker Lockout, Tie Bar Lockout | ||||||||
| ZC-D04 | Miniature Circuit Breaker Lockout, Pin Out Standard | ||||||||
| ZC-D10 | Universal Miniature Breaker Lockout, Multi-funcational MCB lockout | ||||||||
| ZC-D14 | Clamp-on Breaker Lockout, 120-277V 15*13*137.5px | ||||||||
| ZC-D15 | Clamp-On Breaker Lockout , 480-600V 25.5*17*225px | ||||||||
| ZC-D16 | Clamp-On Breaker Lockout, 480-600V Oversize Lockout 10.5*8*250px | ||||||||
| ZC-D06 | Moulded Case Circuit Breaker Lockout, 51mm*25mm*23mm | ||||||||
| ZC-D07 | Moulded Case Circuit Breaker Lockout, 125mm*63mm*40mm | ||||||||
| ZC-D08-1 | Can lock handle width<=5mm small and medium size moulded case circuit breakers | ||||||||
| ZC-D08-2 | Can lock handle width<=5mm small and medium size moulded case circuit breakers | ||||||||
| ZC-D17 | Safety group breaker lockout, can lock out with padlock shackle diameter <=7mm | ||||||||
| ZC-D21 | Snap-On Breaker Lockout , 120V, 55mm*9mm*21mm | ||||||||
| ZC-D22 | Multi-functional breaker lockout, can lock out with padlock shackle diameter <=7mm | ||||||||
| ZC-D23 | Multi-functional breaker lockout, can lock out with padlock shackle diameter <=7mm | ||||||||
| ZC-D24 | Ultra large size circuit breaker lockout, can lock out with padlock shackle diameter <=7mm | ||||||||
| ZC-D25 | Electric air hole, lock all kinds of non-standardised all types, handle holes etc. | ||||||||
| ZC-D31 | Plug Lockout , 110V,220V,550V | ||||||||
| ZC-D41 | Plug Lockout , 110V,220V,550V | ||||||||
| ZC-D51 | Emergency Stop Lockout , 22mm | ||||||||
| ZC-D52 | Emergency Stop Lockout , 30mm | ||||||||

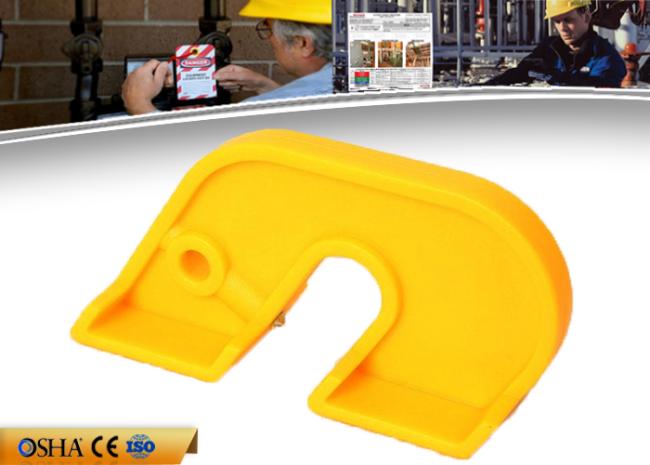

Product Picture:
