1020623 Cylinder Head Cover For HITACHI Excavator EX200-5 Hydraulic Pump Parts
- 1020623 Cylinder Head Cover For HITACHI Excavator EX200-5 Hydraulic Pump Parts
- Spec Sheet
| Excavator spare parts name | Pump head |
| Equipment Model | EX200-5 EX220-5 EX225USR EX230-5 |
| Parts egory | HITACHI Excavator hydraulic pump parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock for urgent delivery |
| Delivery Lead time | 1-3 days |
- Appliion
CHR70 EX125WD-5 EX200-5 EX200-5 JPN EX200-5HG EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC) EX225USRK(LC) EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE EX270-5 EX280H-5 HR1200SG HR1200SGM MA145-5 RX2300 ZX125W Hitachi

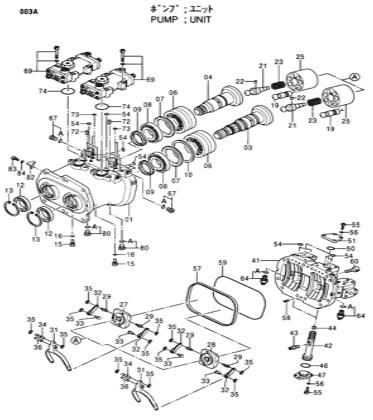

- Parts Diagram Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| +++++++ | [1] | PUMP;UNIT | 9151946 | |
| 1 | 1020327 | [1] | CASING;PUMP | |
| 3 | 2036807 | [1] | DISC;DRIVING | |
| 4 | 2036808 | [1] | DISC;DRIVING | |
| 6 | 4337419 | [2] | BRG.;ROL. | |
| 7 | 4348182 | [2] | RING | |
| 8 | 4337483 | [2] | BRG.;ROL. | |
| 9 | 4178173 | [2] | NUT;BRG. | |
| 10 | 4338907 | [1] | RING;THRUST | |
| 12 | 4333170 | [2] | SEAL;OIL | |
| 13 | 4116290 | [2] | RING;RETAINING | |
| 15 | 4233165 | [2] | PLUG | |
| 16 | 957366 | [2] | O-RING | |
| 19 | 8059452 | [14] | PISTON | |
| 21 | 4337035 | [2] | SHAFT;CENTER | |
| 22 | 4198956 | [2] | PIN | |
| 23 | 4179181 | [2] | SPRING;COMPRES. | |
| 25 | 2036744 | [2] | ROTOR | |
| 27 | 2036795 | [1] | VALVE | |
| 28 | 2036786 | [1] | VALVE | |
| 29 | 4179179 | [4] | PIN | |
| 31 | 3075674 | [2] | LINK;E | |
| 32 | 9724756 | [4] | LEVER | |
| 33 | 4179177 | [4] | PIN | |
| 34 | 4179176 | [2] | PIN | |
| 35 | 4146370 | [12] | RING;RETAINING | |
| 36 | 4200227 | [2] | PIN | |
| 41 | 1020623 | [1] | HEAD | |
| 42 | 3069541 | [2] | PISTON;SERVO | |
| 43 | 4338053 | [2] | PIN | |
| 44 | 4337812 | [2] | SCREW;SET | |
| 46 | 4355085 | [2] | O-RING | |
| 47 | 4338060 | [2] | STOPPER | |
| 50 | 4355083 | [2] | O-RING | |
| 51 | 4338061 | [2] | STOPPER | |
| 54 | 4180349 | [20] | O-RING | |
| 55 | M340825 | [16] | BOLT;SOCKET | |
| 56 | 4514388 | [16] | WASHER;SPRING | |
| 57 | 3070581 | [1] | RING;BACK-UP | |
| 58 | 4099290 | [2] | PIN;SPRING | |
| 59 | 4342840 | [1] | O-RING | |
| 60 | M341245 | [12] | BOLT;SOCKET | |
| 64 | 4355012 | [2] | SENSOR;PRES. | |
| 64A. | 4365826 | [1] | O-RING | |
| 67 | 9134110 | [2] | PLUG | |
| 67A. | 957366 | [1] | O-RING | |
| 69 | -9155143 | [2] | REGULATOR<for transportation> | |
| 69 | 9151947 | [2] | REGULATOR<for assembly of machine> | I 9155143 9151947 |
| 72 | 4515041 | [4] | PIN;SPRING | |
| 73 | 4343074 | [4] | O-RING | |
| 74 | 4348665 | [2] | O-RING | |
| 80 | 9134111 | [2] | PLUG | |
| 80A. | 4509180 | [1] | O-RING | |
| 82 | 4252767 | [1] | BRACKET | |
| 83 | M340613 | [1] | BOLT;SOCKET | |
| 84 | 4169516 | [1] | WASHER;SPRING |
- Description
Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump parts and valve are supplied strictly according to the genuine parts alog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
