2666827 2794711 2794710 266-6827 279-4711 279-4710 PSVL-54CG 305.5E Hydraulic Pump Parts
- 2666827 2794711 2794710 266-6827 279-4711 279-4710 PSVL-54CG 305.5E Hydraulic Pump Parts
- Specifiion
| Appliion | Excavator hydaulic pump parts |
| Parts Name | Barrel group - main pump |
| Parts No | 2666827 2794711 2794710 266-6827 279-4711 279-4710 |
| Model | 305.5C 305.5D 305.5E |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Appliion
MINI HYD EXCAVATOR 305.5D 305.5E 305C CR erpillar
- More barrel group applicable for C A T equipment
| 3058269 BARREL |
| 304C CR |
| 2540575 BARREL GP-PUMP |
| M313C |
| 1646987 BARREL GP-PUMP |
| 797, 854G, 854K, 990K, 992G, 992K, 993K, 994F, 994H |
| 2290622 BARREL GP-PUMP |
| M313C |
| 2131482 BARREL GP-PUMP |
| M322C |
| 1992395 BARREL GP-PUMP |
| M315C, M316C, M318C, M318C MH |
| 1949987 BARREL GP-PUMP |
| 305.5, 306, 307C, 308C |
| 9T2558 BARREL |
| 215B, 35, 45, 55, 65C, 65E, 75D, 75E, 834K, 85D, 85E, 95E, 988K, D9T |
| 9T4550 BARREL |
| 45, 55, 65, 65C, 75C, 75D, 85C, 85D |
| 1165305 BARREL-CYLINDER |
| 446B, 446D, 545, 545C |
| 9T7757 BARREL |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 12H, 12K, 135H, 135H NA, 140H, 140K, 140K 2, 160H, 160K, 446B, 5130, 5130B, 515, 5230B, 525, 525B, 525C, 535B, 535C, 950G, 950G II, 950H, 950K, 962G, 962G I... |
| 1960226 BARREL |
| 416B, 416C, 416D, 420D, 420E, 424D, 426C, 428C, 428D, 430D, 430E, 432D, 432E, 434E, 436C, 438C, 438D, 442D, 442E, 444E, 450E, 725, 730, 769D, 770, 771D, 772, 773D, 773E, 773F, 773G, 773G LRC, 773G OEM... |
| 4364968 BARREL GP-PUMP |
| MH3037 |

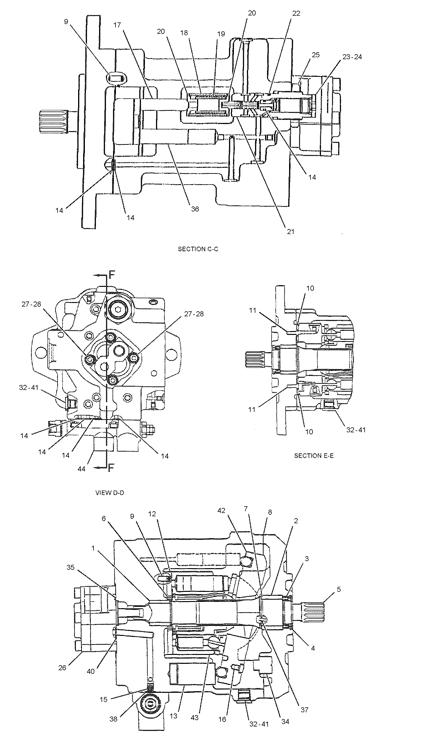

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 279-4683 | [1] | BEARING | |
| 2 | 191-3925 | [1] | BEARING | |
| 3 | 279-4684 H | [1] | SEAL | |
| 4 | 6V-7723 | [1] | RING-RETAINING | |
| 5 | 279-4685 | [1] | SHAFT | |
| 6 | 191-3918 | [1] | WASHER | |
| 7 | 191-3920 | [1] | WASHER | |
| 8 | 279-4686 H | [1] | GASKET | |
| 9 | 279-4687 | [3] | PIN | |
| 10 | 279-4688 | [2] | BUSHING | |
| 11 | 139-7355 | [2] | SCREW | |
| 12 | 279-4689 | [1] | PLATE | |
| 13 | 279-4690 | [1] | PIN | |
| 14 | 095-1575 HJL | [8] | SEAL-O-RING | |
| 15 | 279-4691 | [1] | ORIFICE | |
| 16 | 279-4692 | [1] | STOPPER | |
| 17 | 279-4693 | [1] | PIN | |
| 18 | 279-4694 | [1] | SPRING | |
| 19 | 279-4695 | [1] | SPRING | |
| 20 | 279-4696 | [2] | SEAT-SPRING | |
| 21 | 279-4697 P | [1] | VALVE AS-PUMP (MAIN HYDRAULIC) | |
| 22 | 095-1587 JP | [1] | SEAL-O-RING | |
| 23 | 099-7197 P | [1] | PLUG | |
| 24 | 095-1582 P | [1] | SEAL-O-RING | |
| 25 | 279-4698 | [1] | NUT | |
| 26 | 279-4699 Y | [1] | PUMP GP-GEAR (PILOT) | |
| 27 | 303-4492 | [2] | BOLT | |
| 28 | 8T-4224 | [2] | WASHER-HARD (8.8X16X2-MM THK) | |
| 29 | 6V-8200 M | [6] | BOLT-SOCKET HEAD (M12X1.75X35-MM) | |
| 31 | 095-1584 LN | [1] | SEAL-O-RING | |
| 32 | 3J-1907 JLN | [4] | SEAL-O-RING | |
| 33 | 6V-5683 M | [4] | BOLT (M6X1X16-MM) | |
| 34 | 191-3927 | [1] | STOP | |
| 35 | 279-4701 J | [1] | SEAL-O-RING | |
| 36 | 279-4702 | [1] | PIN | |
| 37 | 095-1571 | [1] | SEAL-O-RING | |
| 38 | 279-4703 J | [1] | SEAL-O-RING | |
| 39 | 279-4704 N | [1] | ORIFICE | |
| 40 | 279-4705 J | [1] | SEAL-O-RING | |
| 41 | 279-4706 | [3] | PLUG | |
| 42 | 279-4710 Y | [1] | SWASHPLATE GP | |
| 43 | 279-4711 Y | [1] | BARREL GP-PUMP | |
| 44 | 279-4712 Y | [1] | VALVE GP-PUMP CONTROL (HYDRAULIC) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 279-4707 J | [1] | KIT-SEAL (MAIN HYDRAULIC PUMP) | ||
| 279-4708 H | [1] | KIT-SEAL (MAIN HYDRAULIC PUMP) | ||
| 279-4709 L | [1] | KIT-SEAL (MAIN HYDRAULIC PUMP) | ||
| H | KIT MARKED H SERVICES PART(S) MARKED H | |||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| L | KIT MARKED L SERVICES PART(S) MARKED L | |||
| M | METRIC PART | |||
| N | INCLUDED IN 279-4712 VALVE GP | |||
| P | INCLUDED IN 279-4697 VALVE AS | |||
| Y | SEPARATE ILLUSTRATION |
