4614289 4475689 Evaporator Assy For HITACHI ZX135US Excavator Air Conditioner Parts
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 4614289 4475689 Evaporator Assy Fit For HITACHI ZX135US Excavator Air Conditioner Parts
- Spec Sheet
| Excavator spare parts name | Evaporator assy |
| Equipment Model | ZX125 ZX135 ZX225 ZX70 ZX80 |
| Parts egory | HITACHI Excavator spare parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
ZX125US ZX125US-E ZX135US ZX135US-E ZX135US-HCME ZX135USK ZX135UST ZX225US ZX225US-3 ZX225US-3-HCME ZX225US-3F ZX225US-E ZX225US-HCME ZX225USR-3 ZX225USR-3-HCME ZX225USR-3F ZX225USRK-3 ZX225USRK-3F ZX60-HCMC ZX70 ZX70-HHE ZX75US-A ZX75UST ZX80LCK ZX80SB-HCME ZX85US-HCME Hitachi
- More other evaporator fit for HITACHI machine
| 4475688 EVAPORATOR ASS'Y |
| ZX125US, ZX125US-E, ZX135US, ZX135US-E, ZX135US-HCME, ZX135USK, ZX135UST, ZX225US, ZX225US-E, ZX225US-HCME, ZX70, ZX75US-A, ZX80LCK, ZX80SB-HCME, ZX85US-HCME |
| 4469056 Hitachi |
| 4469056 EVAPORATOR |
| EX1200-5, EX1200-5C, EX1200-5D, EX1200-6, FV30, PZX450-HCME, TL1100-3, ZX110, ZX110-E, ZX110M, ZX120, ZX120-E, ZX120-HCMC, ZX130-AMS, ZX130-HCME, ZX130H, ZX130K, ZX130W, ZX130W-AMS, ZX160, ZX160LCT, Z... |
| 4475689 Hitachi |
| 4475689 EVAPORATOR |
| ZX125US, ZX125US-E, ZX135US, ZX135US-E, ZX135US-HCME, ZX135USK, ZX135UST, ZX225US, ZX225US-3, ZX225US-3-HCME, ZX225US-3F, ZX225US-E, ZX225US-HCME, ZX225USR-3, ZX225USR-3-HCME, ZX225USR-3F, ZX225USRK-3... |
| 4475688 EVAPORATOR ASS'Y |
| ZX125US, ZX125US-E, ZX135US, ZX135US-E, ZX135US-HCME, ZX135USK, ZX135UST, ZX225US, ZX225US-E, ZX225US-HCME, ZX70, ZX75US-A, ZX80LCK, ZX80SB-HCME, ZX85US-HCME |
| 4464353 Hitachi |
| 4464353 EVAPORATOR |
| 270C LC JD, IZX200, IZX200LC, MA200-G, UCX300, ZX110, ZX110-E, ZX110M, ZX120, ZX120-E, ZX130-AMS, ZX130-HCME, ZX130H, ZX130K, ZX130W, ZX130W-AMS, ZX160, ZX160LCT, ZX160W, ZX160W-AMS, ZX180LC, ZX180LC-... |
| 4464352 EVAPORATOR ASS'Y |
| 270C LC JD, IZX200, IZX200LC, MA200-G, UCX300, ZX200, ZX200-3-HCMC, ZX200-3G, ZX200-E, ZX200-HHE, ZX200-X, ZX200LC-HHE, ZX210-AMS, ZX210-HCME, ZX210H, ZX210H-3G, ZX210K, ZX210K-3G, ZX210LC-3G, ZX210N-... |
| 4241632 EVAPORATOR |
| EX1800, EX3500 |
| XB00001044 EVAPORATOR |
| ZH200-A, ZH200LC-A, ZW250-5B, ZX200-5G, ZX200LC-5G, ZX210H-5G, ZX210K-5G, ZX210LCH-5G, ZX210LCK-5G, ZX240-5G, ZX240LC-5G, ZX250H-5G, ZX250K-5G, ZX250LC-5B, ZX250LCH-5G, ZX250LCK-5G, ZX250LCN-5B, ZX280... |
| 4353527 EVAPORATOR |
| CX1000, CX1100, CX1800, CX2000, CX350DR, CX400, CX500, CX500DR, CX500S, CX500W, CX500W-C, CX550, CX650-2, CX700, CX700 JPN, CX700HD, CX900, CX900-2, CX900HD, EX220-3, EX300-3, EX300-3C, EX310H-3C, EX4... |
| 4416977 EVAPORATOR ASS'Y |
| CHR70, EX100-5, EX100-5 JPN, EX100M-5, EX120-5, EX125WD-5, EX130H-5, EX135USR, EX135USRK, EX150LC-5, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200SS-5, EX210H-5, EX... |
| 4387288 EVAPORATOR |
| CHR70, EX100-5, EX100-5 JPN, EX100M-5, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, EX120SS-5, EX125WD-5, EX130H-5, EX130H-5 JPN, EX130K-5, EX135USR, EX135USRK, EX150LC-5, EX200... |
| 4370264 EVAPORATOR ASS'Y |
| EX100-5, EX100-5 JPN, EX100M-5, EX120-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, EX120SS-5, EX130H-5, EX130H-5 JPN, EX130K-5, EX135USR, EX150LC-5, EX200-3, EX200-5, EX200-5 JPN, EX2... |
| 4230322 EVAPORATOR |
| LX100, LX150 |
| RE57574 EVAPORATOR |
| LX100-5, LX120-5, LX150-5, LX230-5 |
| 4302705 EVAPORATOR |
| EX220-2, EX300-2 |

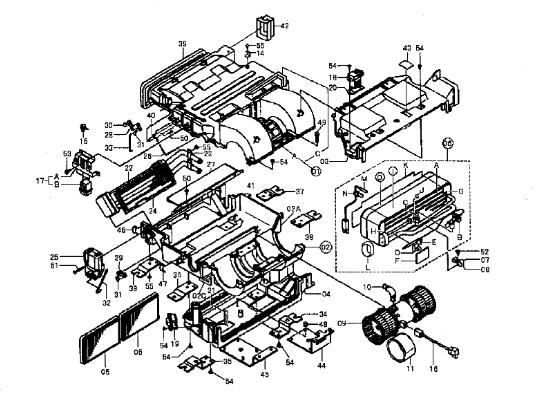

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 4609051 | [1] | UNIT;AIRCON | ||
| 1 | 4614287 | [1] | ;ASS'Y | |
| 01A. | 4475660 | [1] | ||
| 01C. | 4475662 | [1] | LINING | |
| 2 | 4614288 | [1] | ;ASS'Y | |
| 02A. | 4475664 | [1] | ||
| 02C. | 4475666 | [1] | LINING | |
| 3 | 4475667 | [1] | COVER | |
| 4 | 4475687 | [1] | COVER | |
| 5 | 4455778 | [2] | FILTER;AIR | |
| 6 | 4614289 | [1] | EVAPORATOR ASS'Y | |
| 06A. | 4475689 | [1] | EVAPORATOR | |
| 06B. | 4475690 | [1] | VALVE | |
| 06C. | 4351478 | [1] | O-RING | |
| 06D. | 4475691 | [1] | CLIP | |
| 06E. | 4370310 | [1] | SCREW;TAPPING | |
| 06F. | 4416975 | [1] | INSULATOR | |
| 06G. | 4475692 | [1] | LINING | |
| 06H. | 4475693 | [1] | LINING | |
| 06I. | 4614290 | [1] | LINING | |
| 06J. | 4475695 | [1] | O-RING | |
| 06K. | 4475710 | [1] | FILTER | |
| 06L. | 4475711 | [1] | LINING | |
| 06M. | 4475712 | [1] | THERMOSTAT | |
| 06N. | 4475713 | [1] | CLIP | |
| 06O. | 4614291 | [1] | LINING | |
| 7 | 4475714 | [1] | CLIP | |
| 8 | 4475715 | [1] | CLIP | |
| 9 | 4475716 | [1] | MOTOR | |
| 10 | 4464473 | [1] | HOSE;AIR | |
| 11 | 4475717 | [1] | ISOLATOR | |
| 14 | 4475768 | [3] | CLIP | |
| 15 | 4475769 | [3] | CLIP | |
| 16 | 4475770 | [1] | HARNESS;EIRE | |
| 17 | 4475771 | [1] | RELAY;ASS'Y | |
| 17A. | 4475772 | [1] | BRACKET | |
| 17B. | 4475773 | [3] | RELAY | |
| 18 | 4464279 | [1] | TRANSISTOR | |
| 19 | 4464278 | [1] | RESISTOR | |
| 20 | 4464474 | [1] | SEAL | |
| 21 | 4475774 | [1] | PLATE | |
| 22 | 4475775 | [1] | HEATER | |
| 23 | 4475801 | [2] | CLIP | |
| 24 | 4475802 | [1] | PLATE | |
| 25 | 4475803 | [1] | MOTOR | |
| 26 | 4475804 | [1] | DOOR | |
| 27 | 4475805 | [1] | DOOR | |
| 28 | 4475806 | [1] | LEVER | |
| 29 | 4475807 | [1] | LEVER | |
| 30 | 4370306 | [1] | CLIP | |
| 31 | 4464477 | [2] | CLIP | |
| 32 | 4475808 | [1] | ROD | |
| 33 | 4475809 | [1] | ROD | |
| 34 | 4475822 | [1] | BRACKET | |
| 35 | 4475823 | [1] | BRACKET | |
| 36 | 4475824 | [1] | BRACKET | |
| 37 | 4475825 | [1] | BRACKET | |
| 38 | 4475826 | [2] | BRACKET | |
| 39 | 4475827 | [1] | LINING | |
| 40 | 4475828 | [1] | SHAFT | |
| 41 | 4475829 | [1] | SHAFT | |
| 42 | 4475830 | [1] | COVER | |
| 43 | 4475832 | [1] | TAPE | |
| 44 | 4475833 | [1] | BRACKET | |
| 45 | 4475834 | [1] | BRACKET | |
| 46 | 4464478 | [3] | CLIP | |
| 47 | 4475835 | [1] | CLIP | |
| 48 | 4475836 | [4] | NUT | |
| 49 | 4475837 | [3] | BOLT | |
| 50 | 4475838 | [6] | SCREW | |
| 51 | 4370308 | [3] | SCREW;TAPPING | |
| 52 | 4475839 | [1] | SCREW;TAPPING | |
| 53 | 4475840 | [3] | SCREW;TAPPING | |
| 54 | 4370309 | [29] | SCREW;TAPPING | |
| 55 | 4464483 | [25] | SCREW;TAPPING |
- Description
parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
1. The excavator spare parts are built to fit to the machine original system.
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
