6151-11-8610 6151-11-8611 6151118610 6151118611 6D125 Engine Muffler
- 6151-11-8610 6151-11-8611 6151118610 6151118611 6D125 Engine Muffler
-
Specifiion
| egory | KOMATSU Engine parts |
| Name | Muffler |
| Parts No | 6151-11-8610 6151-11-8611 6151118610 6151118611 |
| Machine Model | KOMATSU Heavy machinery |
| Engine model | 6D125-1 6D125-2 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
ENGINES 6D125 S6D125 S6D125E Komatsu

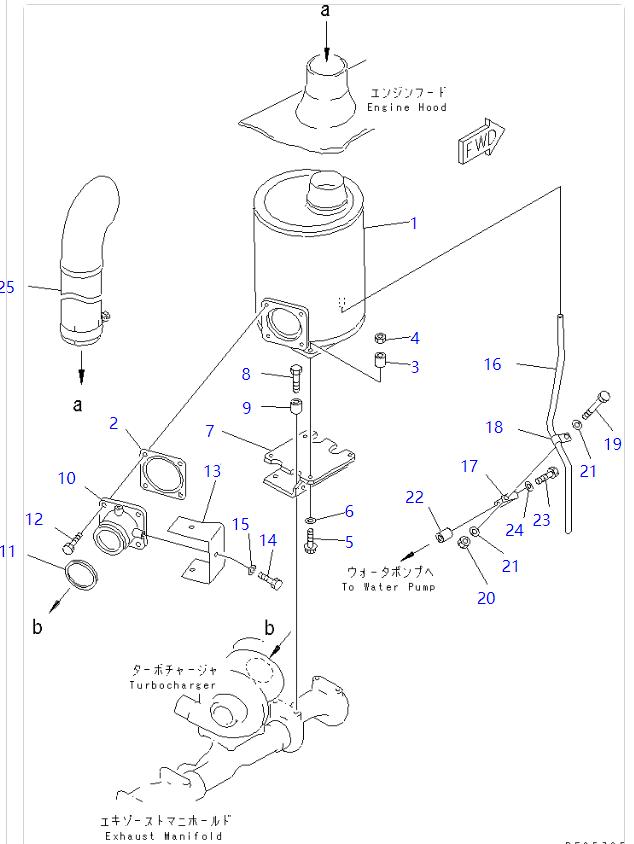

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6151-11-8611 | [1] | MUFFLER Komatsu | 22.11 kg. |
| ["SN: 64702-81642"] analogs:["6151118610"] | ||||
| 6151-11-8610 | [1] | MUFFLER Komatsu | 22.11 kg. | |
| ["SN: 61659-64701"] analogs:["6151118611"] |1. | ||||
| 2 | 6150-11-5751 | [1] | GASKET (K1) Komatsu | 0.21 kg. |
| ["SN: 61659-81642"] analogs:["6150115750", "6643115750"] | ||||
| 3 | 6110-23-6490 | [4] | SPACER Komatsu | 0.02 kg. |
| ["SN: 61659-81642"] | ||||
| 4 | 01580-01008 | [4] | NUT Komatsu | 0.01 kg. |
| ["SN: 61659-81642"] analogs:["M018201000006", "0150431006", "0158031008"] | ||||
| 5 | 6150-81-9370 | [4] | BOLT Komatsu | 0.032 kg. |
| ["SN: 61659-81642"] | ||||
| 6 | 01643-51032 | [4] | WASHER Komatsu | 0.17 kg. |
| ["SN: 61659-81642"] analogs:["R0164351032"] | ||||
| 7 | 6151-11-8640 | [1] | BRACKET Komatsu | 5.18 kg. |
| ["SN: 61659-81642"] | ||||
| 8 | 01010-81040 | [4] | BOLT Komatsu | 0.288 kg. |
| ["SN: 61659-81642"] analogs:["0101051040", "R0101081040"] | ||||
| 9 | 6631-11-5630 | [4] | SPACER Komatsu | 0.124 kg. |
| ["SN: 61659-81642"] | ||||
| 10 | 6151-11-8650 | [1] | CONNECTOR Komatsu | 2.32 kg. |
| ["SN: 61659-81642"] | ||||
| 11 | 6137-11-5291 | [1] | RING,SEAL Komatsu OEM | 0.03 kg. |
| ["SN: 61659-81642"] analogs:["6137115290"] | ||||
| 12 | 01010-E1225 | [4] | BOLT Komatsu | 0.039 kg. |
| ["SN: 61659-81642"] analogs:["0101031225", "0101061225"] | ||||
| 13 | 6151-11-8620 | [1] | COVER,SAFETY Komatsu China | |
| ["SN: 61659-81642"] | ||||
| 14 | 01010-E1016 | [3] | BOLT Komatsu | 0.022 kg. |
| ["SN: 61659-81642"] analogs:["0101031016"] | ||||
| 15 | 01640-21016 | [3] | WASHER Komatsu | 0.177 kg. |
| ["SN: 61659-81642"] analogs:["0164001016", "0164221016", "0164201016"] | ||||
| 16 | 6151-12-8660 | [1] | TUBE,DRAIN Komatsu China | |
| ["SN: 61659-81642"] | ||||
| 17 | 6207-65-8410 | [1] | STAY Komatsu China | |
| ["SN: 61659-81642"] | ||||
| 18 | 04434-51010 | [1] | CLIP Komatsu | 0.014 kg. |
| ["SN: 61659-81642"] | ||||
| 19 | 01010-81020 | [1] | BOLT Komatsu | 0.161 kg. |
| ["SN: 61659-81642"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 20 | 01580-11008 | [1] | NUT Komatsu | 0.011 kg. |
| ["SN: 61659-81642"] | ||||
| 22 | 6151-61-3781 | [1] | SPACER Komatsu China | |
| ["SN: 61659-81642"] | ||||
| 23 | 01010-81045 | [1] | BOLT Komatsu | 0.039 kg. |
| ["SN: 61659-81642"] analogs:["0101051045", "01010D1045"] | ||||
| 24 | 01643-31032 | [1] | WASHER Komatsu | 0.054 kg. |
| ["SN: 61659-81642"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 25 | 6150-11-5452 | [1] | PIPE,EXHAUST Komatsu | 2.1 kg. |
| ["SN: 61659-81642"] | ||||
