31M8-15022 AP2D28LV1RS7 R971028456 Main Pump For HYUNDAI R55W-9 Excavator Hydraulic Pump
- 31M8-15022 31M8-15021 AP2D28LV1RS7 R971028456 Main Pump For HYUNDAI R55W-9 Excavator Hydraulic Pump
- Spec Sheet
| Excavator spare parts name | hydraulic main pump |
| Equipment Model | R55W-9 R60W-9 |
| Parts egory | Excavator hydraulic pump |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock for urgent delivery |
| Delivery Lead time | 1-3 days |
- Appliion
EXCAVATOR R55W-9 R60W-9

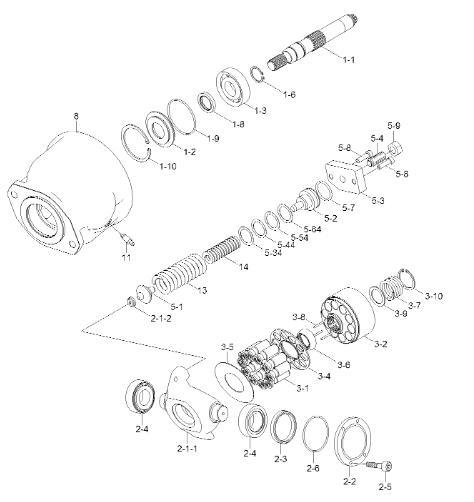

- Parts list Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31M8-15021 | [1] | MAIN PUMP | |
| *. | 31M8-15022 | [1] | MAIN PUMP | |
| 1 | XJDD-00786 | [1] | SHAFT ASSY | |
| 1 | XJDD-01294 | [1] | SHAFT ASSY | |
| 1-1. | XJDD-00796 | [1] | SHAFT | |
| 1-2. | XJDD-00797 | [1] | SEAL | |
| 1-3. | XJDD-00798 | [1] | BEARING | |
| 1-6. | XJDD-00799 | [1] | RETAINING RING(C TYPE) | |
| 1-8. | XJDD-00800 | [1] | OIL SEAL | |
| 1-8. | XJDD-01295 | [1] | OIL SEAL | |
| 1-9. | XJDD-00801 | [1] | O-RING | |
| 1-10. | XJDD-00802 | [1] | RETAINING RING(C TYPE) | |
| 2 | XJDD-00787 | [1] | HANGER ASSY | |
| 2-1. | XJDD-00803 | [1] | HANGER | |
| 2-1-1. | XJDD-01023 | [1] | HANGER | |
| 2-1-2. | XJDD-01024 | [1] | BUSH | |
| 2-2. | XJDD-00804 | [1] | COVER | |
| 2-3. | XJDD-00805 | [1] | SPACER | |
| 2-4. | XJDD-00806 | [2] | BEARING | |
| 2-5. | XJDD-00807 | [4] | SCREW-HEX SO HD CAP | |
| 2-6. | XJDD-00808 | [1] | O-RING | |
| 3 | XJDD-00865 | [1] | ROTARY GROUP | |
| 3-1. | XJDD-00809 | [10] | PISTON ASSY | |
| 3-2. | XJDD-00810 | [1] | BLOCK-CYLINDER | |
| 3-4. | XJDD-00866 | [1] | RETAINER | |
| 3-5. | XJDD-00812 | [1] | PLATE | |
| 3-6. | XJDD-00813 | [1] | GUIDE | |
| 3-7. | XJDD-00814 | [1] | SPRING | |
| 3-8. | XJDD-00044 | [3] | PIN-PARALLEL | |
| 3-9. | XJDD-00815 | [2] | SPRING SEAT | |
| 3-10. | XJDD-00816 | [1] | RETAINING RING(C TYPE) | |
| 5 | XJDD-00867 | [1] | SPRING SEAT ASSY | |
| 5-1. | XJDD-00828 | [1] | SPRING SEAT | |
| 5-2. | XJDD-00868 | [1] | SPRING SEAT | |
| 5-3. | XJDD-00830 | [1] | COVER | |
| 5-4. | XJDD-00731 | [1] | SCREW-ADJUSTING | |
| 5-7. | XJDD-00831 | [1] | O-RING | |
| 5-8. | XJDD-00733 | [2] | SCREW-HEX S/HD CAP | |
| 5-9. | XJDD-00734 | [1] | NUT-HEX | |
| 5-34. | XJDD-00832 | [2] | SHIM | |
| 5-44. | XJDD-00833 | [2] | SHIM | |
| 5-54. | XJDD-00834 | [2] | SHIM | |
| 5-64. | XJDD-00835 | [2] | SHIM | |
| 8 | XJDD-00793 | [1] | HOUSING | |
| 13 | XJDD-00884 | [1] | SPRING | |
| 14 | XJDD-00885 | [1] | SPRING | |
| 17 | XJDD-00010 | [1] | VALVE-AIR VENT |
- Description
Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The pump parts and valve are supplied strictly according to the genuine parts alog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
