KHR3197 Compressor For CX130 CX210 CX240 CX350 CX700 Excavator Air Condition Parts
- KHR3197 Compressor Fit To CX130 CX210 CX240 CX350 CX700 Excavator Air Condition Parts
- Spec Sheet
| Excavator spare parts name | Compressor assy |
| Equipment Model | CX130 CX160 CX210 CX250 CX350 CX500 CX700 |
| Parts egory | Excavator Air conditioning parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
HEAVY EQUIPMENT CX130B CX130C CX130D CX130D LC CX135SR CX145C SR CX160B CX160C CX160D LC CX210B CX210BLR CX210BNLC CX210C LC CX210C LR CX210C NLC CX210D LC CX210D LC LR CX210D NLC CX225SR CX235C SR CX240B CX240BLR CX250C CX250D LC CX250D LC LR CX290B CX300C CX300D LC CX330 CX350 CX350B CX350C CX350D LC CX460 CX470B CX470C CX490D LC CX490D RTC CX500D LC CX500D RTC CX700 CX700B CX750D RTC CX750D RTC ME CX75C SR CX75SR CX80 CX800 CX800B CX80C
- More other compressor fit for machine
| X4743587 COMPRESSOR |
| CX350, 788, CX700 |
| 426264A1 COMPRESSOR |
| CX800 |
| 87706005 COMPRESSOR |
| CX250C, CX130B, CX145C SR, CX290B, CX300C, CX160B, CX160C, CX350B, CX350C, CX210B, CX210C LC, CX470B, CX470C, CX210C LR, CX700B, CX210C NLC, CX800B, CX240B, CX235C SR, CX130C |
| KHR3241 |
| KHR3241 COMPRESSOR |
| CX290, CX210LR, CX330, CX210N, CX130, CX240, CX160, CX240LR, CX210 |
| U4743538 COMPRESSOR |
| 688BCK |
| 164729A1 COMPRESSOR |
| 9060B |
| 170668A1 COMPRESSOR |
| 9060B, 9050B |
| 159638A1 COMPRESSOR |
| 9050B |
| 132554A1 COMPRESSOR |
| 9050, 9060B, 9060, 9050B |
| P543506 COMPRESSOR |
| 115CL, 75P, 75C, 90CL |
| S510605 COMPRESSOR |
| 120 |
| 87706005 COMPRESSOR |
| CX250C, CX130B, CX145C SR, CX290B, CX300C, CX160B, CX160C, CX350B, CX350C, CX210B, CX210C LC, CX470B, CX470C, CX210C LR, CX700B, CX210C NLC, CX800B, CX240B, CX235C SR, CX130C |
| 426264A1 COMPRESSOR |
| CX800 |
| KHR3536 COMPRESSOR |
| CX75SR, CX80 |
| X4743587 COMPRESSOR |
| CX350, 788, CX700 |

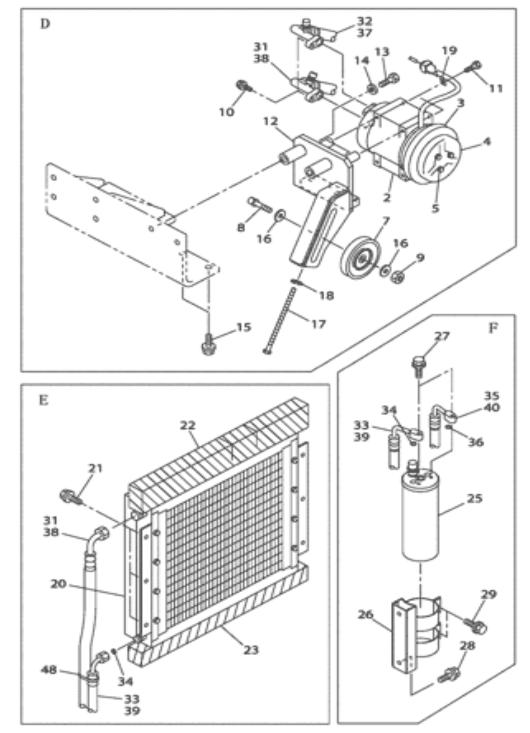

- Parts Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 2 | KHR3197 | [1] | COMPRESSOR | SUM Incl. 3 - 5 |
| . . | KHR3197R | [1] | REMAN-COMPRESSOR | SUM CX330 Tier 3 ASN N5SAP7001 (1/06-) |
| . . | KHR3197C | [1] | CORE-COMPRESSOR | SUM Return Number |
| .. | KHR3198 | [1] | CLUTCH | SUM |
| 4 | KHR3974 | [1] | PROTECTIVE COVER | SUM |
| 5 | KHR3975 | [3] | BOLT | SUM |
| 7 | KHR11760 | [1] | PULLEY | SUM |
| 8 | 157299A1 | [1] | SHAFT | SUM |
| 9 | 157292A1 | [1] | NUT | SUM M10 x 1.25 |
| 10 | 162457A1 | [2] | SPECIAL BOLT,Spcl | SUM M8 x 25 |
| 11 | KAR0921 | [4] | BOLT,Spcl | SUM M8 x 90 |
| 12 | KSR11340 | [1] | SUPPORT | SUM Replaces KSR0914 Superseded by part number: KSR12531 |
| 13 | 827-12090 | [2] | BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9 | CAS Superseded by part number: 412605 |
| 14 | 150811A1 | [2] | WASHER | SUM Superseded by part number: 86625255 |
| 15 | 158919A1 | [2] | CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl | SUM |
| 16 | 151977A1 | [2] | WASHER | SUM |
| 17 | KHR3171 | [1] | BOLT,Spcl | SUM M8 x 160 |
| 18 | 183-108VR | [1] | SPRING WASHER | SUM |
| 19 | 158962A1 | [1] | CLIP | SUM |
| 20 | KHR2989 | [1] | CONDENSER | SUM See Figure 09-025-01 01 |
| 21 | 167182A1 | [6] | BOLT,Sems, M8 x 25mm | SUM M8 x 25 |
| 22 | KSR0918 | [1] | SEAL | SUM |
| 23 | KTR0530 | [1] | SEAL | SUM |
| 25 | KHR13590 | [1] | RECEIVER-DRYER | SUM Replaces 167528A1, KHR3751 |
| 26 | KHR13600 | [1] | BRACKET | SUM Replaces 159635A1 |
| 26 | 159635A1 | [1] | SUPPORT | SUM |
| 27 | 162043A1 | [2] | BOLT,Spcl, M6 | SUM M6 x 28 |
| 28 | 167182A1 | [2] | BOLT,Sems, M8 x 25mm | SUM M8 x 25 |
| 29 | 159906A1 | [2] | BOLT,Sems, Hex, M6 x 20mm, Spcl | SUM M6 x 20 |
| 31 | KHR3167 | [1] | HOSE | SUM Incl. 31A |
| 31A. | 169053A1 | [2] | O-RING | CAS Not Illustrated |
| 32 | KHR3168 | [1] | HOSE | SUM Incl. 32A |
| 32A. | 169052A1 | [2] | O-RING | CAS Not Illustrated |
| 33 | KHR3087 | [1] | HOSE | SUM Incl. 34 |
| 34 | 169054A1 | [2] | O-RING | CAS |
| 35 | KHR3088 | [1] | HOSE | SUM Incl. 36 |
| 36 | 169054A1 | [2] | O-RING | CAS |
| 37 | KBR0668 | [1] | PLASTIC-RUBBER TUBE | SUM 4100 mm Superseded by part number: KHR21070 |
| 38 | 158069A1 | [1] | PLASTIC-RUBBER TUBE | SUM 3000 mm Superseded by part number: KHR12740 |
| 39 | 157768A1 | [1] | PLASTIC-RUBBER TUBE | SUM 1300 mm Superseded by part number: KRH10700 |
| 40 | 151175A1 | [1] | PLASTIC-RUBBER TUBE | SUM 3000 mm Superseded by part number: KRH10700 |
| 48 | 150496A1 | [5] | MOUNTING CLIP | SUM 250 mm |
| 49 | 167518A1 | [1] | BOLT | SUM Not Shown |
- Description
parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
- Advantage
2. The excavator spare parts are supplied strictly according to the genuine parts alog.
3. All the excavator spare parts are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of spare parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
