11Q640202 11Q6-40202 Aftercooler HYUNDAI R210-9 Charge Air Cooler Excavator Intercooler
-
11Q640202 11Q6-40202 Aftercooler HYUNDAI R210-9 Charge Air Cooler Excavator Intercooler
-
Specifiion
| Appliion | HYUNDAI Excavator spare parts |
| Parts Name | Charge air cooler |
| Parts No |
11Q640202 11Q6-40202 |
| Model | R210-9 R220-9 R260-9 |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R250LC9 R260LC9S R290LC9 R290LC9MH RB260LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R210W-9 R210W9MH R210W9S Hyundai
- More charge air cooler applicable for HYUNDAI heavy machines
| 11Q4-46230 CHARGE AIR COOLER |
| R145CR9 |
| 11Q4-42400 CHARGE AIR COOLER |
| R140LC9, R140LC9S, R140W9, R140W9S, R160LC9, R160LC9S, R170W9, R170W9S, R180LC9, R180LC9S, R180W9S |
| 11L6-02330 CHARGE AIR COOLER |
| HL780-7A, HL780-9, HL780-9S, HL7803A |
| 11LL-30240 CHARGE AIR COOLER |
| HL760-9 |
| 11LM-30240 CHARGE AIR COOLER |
| HL757-9, HL757-9S, HL757-9SB, HL757TM-9 |
| 11LN-30240 CHARGE AIR COOLER |
| HL740-9, HL740TM-9 |
| 11LP-30710 CHARGE AIR COOLER |
| HL730-9, HL730TM-9 |
| 11Q6-41330 CHARGE AIR COOLER |
| R235LCR9, R235LCR9A |
| 11Q9-40550 CHARGE AIR COOLER |
| R300LC9S, R300LC9SH, R320LC9, R330LC9S, R330LC9SH, R360LC9, R380LC9SH, R390LC9, R430LC9, R430LC9SH |
| 11NB-42070 CHARGE AIR COOLER |
| R450LC7, R450LC7A, R500LC7, R500LC7A |
| 11QB-41030 CHARGE AIR COOLER |
| R480C9MH, R480LC9, R520LC9 |
| 11ND-40100 CHARGE AIR COOLER |
| R800LC7A |
| 11ND-40101 CHARGE AIR COOLER |
| R800LC7A |
| ZGBM-00003 CHARGE AIR COOLER |
| R8007AFS, R800LC7A |
| 11LL-30241 CHARGE AIR COOLER |
| HL760-9, HL760-9SB |
| 11LL-35032 CHARGE AIR COOLER |
| HL757-9A, HL757TM-9A, HL760-9A, HL760-9AW |
| 11LL-31550 CHARGE AIR COOLER |
| HL760-9S |
| 11LK-35031 CHARGE AIR COOLER |
| HL770-9A |
| 11LQ-35051 CHARGE AIR COOLER |
| HL780-9A |

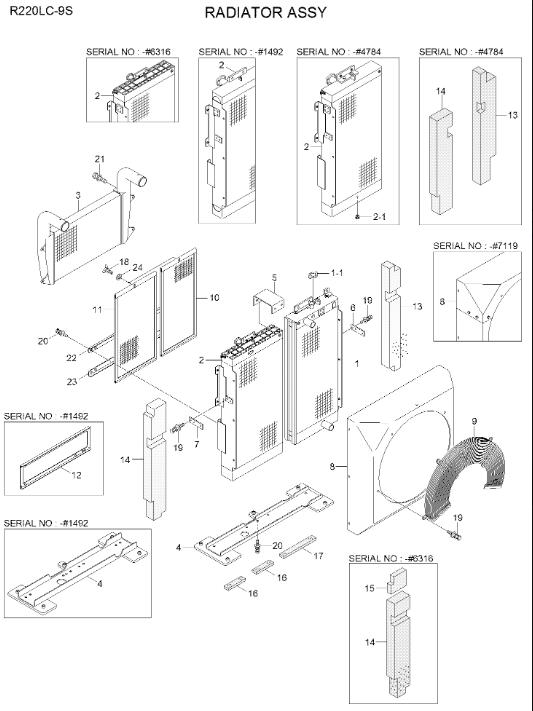

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 11Q6-46041 | [1] | RADIATOR TOTAL ASSY | |
| *. | 11Q6-46042 | [1] | RADIATOR TOTAL ASSY | |
| *. | 11Q6-46043 | [1] | RADIATOR TOTAL ASSY | |
| *. | 11Q6-46044 | [1] | RADIATOR TOTAL ASSY | |
| *. | 11Q6-46045 | [1] | RADIATOR TOTAL ASSY | |
| 1 | 11Q6-46631 | [1] | RADIATOR ASSY | |
| 1 | 11Q6-46632 | [1] | RADIATOR ASSY | |
| 1 | 11Q6-46634 | [1] | RADIATOR ASSY | |
| 1 | 11Q6-46635 | [1] | RADIATOR ASSY | |
| 1-1. | 11N8-47150 | [1] | CAP-PRESSURE | |
| 2 | 11Q6-40641 | [1] | OIL COOLER ASSY | |
| 2 | 11Q6-40642 | [1] | OIL COOLER ASSY | |
| 2 | 11Q6-40644 | [1] | OIL COOLER ASSY | |
| 2 | 11Q6-40646 | [1] | OIL COOLER ASSY | |
| 2-1. | P23F01 | [1] | PLUG | |
| 3 | 11Q6-40202 | [1] | CHARGE AIR COOLER | |
| 4 | 11Q6-40623 | [1] | PLATE-BASE | |
| 4 | 11Q6-40624 | [1] | FRAME ASSY | |
| 5 | 11Q6-40660 | [1] | SUPPORT-UPPER | |
| 6 | 11Q6-40750 | [1] | BRACKET-STAY, RH | |
| 7 | 11Q6-40760 | [1] | BRACKET-STAY, LH | |
| 8 | 11Q6-43110 | [1] | SHROUD | |
| 8 | 11Q6-40651 | [1] | SHROUD | |
| 8 | 11Q6-40652 | [1] | SHROUD | |
| 9 | 11Q6-40271 | [1] | GUARD-FAN | |
| 10 | 11Q6-40670 | [1] | NET-WIRE | |
| 10 | 11Q6-40671 | [1] | NET-WIRE,RAD | |
| 11 | 11Q6-40680 | [1] | NET-WIRE | |
| 11 | 11Q6-40681 | [1] | NET-WIRE | |
| 12 | 11Q6-40421 | [1] | SUPPORT | |
| 13 | 11Q6-44251 | [1] | SPONGE-A | |
| 13 | 11Q6-44252 | [1] | SPONGE-A | |
| 14 | 11Q6-40730 | [1] | SPONGE-B | |
| 14 | 11Q6-40731 | [1] | SPONGE-B | |
| 15 | 11Q6-40740 | [1] | SPONGE-C | |
| 15 | 11Q6-40741 | [1] | SPONGE-C | |
| 16 | 11Q6-40771 | [1] | SPONGE-D | |
| 16 | 11Q6-40772 | [1] | SPONGE-D | |
| 17 | 11Q6-40780 | [1] | SPONGE-E | |
| 17 | 11Q6-40781 | [1] | SPONGE-E | |
| 18 | S091-080126 | [2] | BOLT-WING | |
| 18 | S091-060106 | [2] | BOLT-WING | |
| 19 | S035-082526 | [10] | BOLT-W/WASHER | |
| 19 | S035-082026 | [10] | BOLT-W/WASHER | |
| 20 | S037-102526 | [24] | BOLT-W/WASHER | |
| 20 | S037-102526 | [20] | BOLT-W/WASHER | |
| 21 | S037-124026 | [4] | BOLT-W/WASHER | |
| 21 | S037-103536 | [4] | BOLT W/WASHER | |
| 22 | 11Q6-40840 | [1] | BRACKET-COND | |
| 23 | 11Q6-40850 | [1] | BRACKET-COND | |
| 24 | S403-06200B | [2] | WASHER-PLAIN |
-
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
