34361-10103 5I7576 Fuel Pump Flange S4K S6K Excavator Engine Parts
- 34361-10103 5I7576 Fuel Pump Flange S4K S6K Excavator Engine Parts
- Specifiion
| egory | C A T Engine parts |
| Name | Fuel pump flange |
| Parts No | 34361-10103 5I7576 |
| Machine Model | C A T 311 312 314 318 320 323 |
| Engine model | S4K S6K 3064 3066 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
- Compatible models
EXCAVATOR 311 311B 311C 312 312B 312C 312C L 314C 318C 319C 320 L 320B 320B L 320C 320C FM 320C L 320D 320D LRR 320N 321C 323D L 323D LN

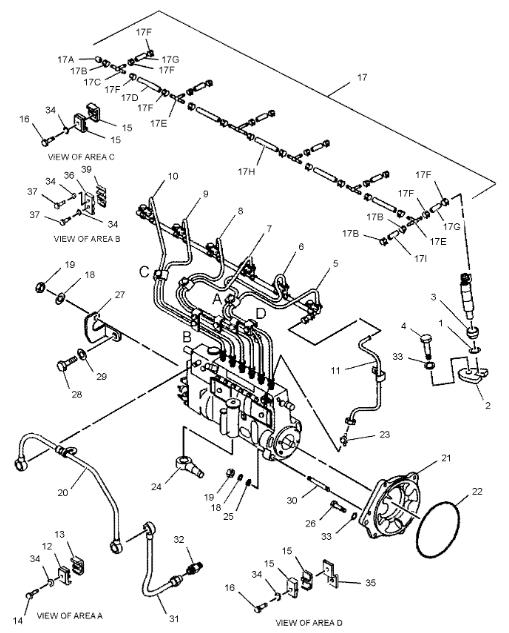

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1R-6573 | [6] | GASKET | |
| 2 | 113-0363 | [6] | SUPPORT | |
| 3 | 154-0489 | [6] | SEAL-RUBBER | |
| 4 | 8T-4189 M | [6] | BOLT (M8X1.25X20-MM) | |
| 5 | 212-8599 | [1] | PIPE | |
| 6 | 212-8600 | [1] | PIPE | |
| 7 | 212-8601 | [1] | PIPE | |
| 8 | 212-8602 | [1] | PIPE | |
| 9 | 212-8603 | [1] | PIPE | |
| 10 | 212-8604 | [1] | PIPE | |
| 11 | 212-8605 | [1] | PIPE | |
| 12 | 094-9596 | [2] | CLAMP | |
| 13 | 094-9597 | [2] | CLAMP | |
| 14 | 5C-9553 M | [2] | BOLT (M6X1X16-MM) | |
| 15 | 094-9581 | [8] | CLAMP | |
| 16 | 6V-7357 M | [4] | BOLT (M6X1X25-MM) | |
| 17 | 212-8606 | [1] | HOSE AS | |
| 17A. | 094-7235 | [1] | CAP | |
| 17B. | 096-0174 | [3] | CLIP-HOSE | |
| 17C. | 195-8366 | [2] | FITTING | |
| 17D. | 212-8497 | [4] | HOSE | |
| 17E. | 195-8369 | [4] | FITTING | |
| 17F. | 195-8372 | [22] | CLIP | |
| 17G. | 195-8368 | [6] | HOSE | |
| 17H. | 212-8607 | [1] | HOSE | |
| 17I. | 217-5474 | [1] | HOSE | |
| 18 | 7X-0796 | [5] | LOCKWASHER (10.2X18.4X2.5-MM THK) | |
| 19 | 6V-8231 M | [5] | NUT (M10X1.25-THD) | |
| 20 | 193-2702 | [1] | PIPE | |
| 21 | 5I-7576 | [1] | FLANGE | |
| 22 | 096-9529 | [1] | SEAL-O-RING | |
| 23 | 5I-7743 | [1] | FITTING | |
| 24 | 125-2983 | [1] | FITTING | |
| 25 | 8T-4121 | [4] | WASHER-HARD (11X21X2.5-MM THK) | |
| 26 | 5I-5108 M | [2] | BOLT (M8X1.25X18-MM) | |
| 27 | 212-8509 | [1] | BRACKET | |
| 28 | 8T-4179 M | [1] | BOLT (M12X1.75X20-MM) | |
| 29 | 096-2501 | [1] | LOCKWASHER | |
| 30 | 212-8499 | [4] | STUD | |
| 31 | 5I-8070 | [1] | PIPE | |
| 32 | 5I-8058 | [1] | CONNECTOR | |
| 33 | 3B-4505 | [8] | LOCKWASHER | |
| 34 | 096-2500 | [6] | LOCKWASHER | |
| 35 | 239-6605 | [1] | PLATE | |
| 36 | 239-6524 | [1] | CLAMP | |
| 37 | 8T-4138 M | [2] | BOLT (M6X1X20-MM) | |
| 39 | 233-1283 | [1] | CLAMP | |
| M | METRIC PART | |||
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
