K1006529 51.12501-7260 51. 12501-7283 51.12501-7288 51.12503-0052 Pre Fuel Filter

• Compatible models

DOOSAN-DAEWOO DL300 DL400 DL500 DX300 DX300LL DX340 DX420 DX480 DX520

• Other filter applicable for DOOSAN machine

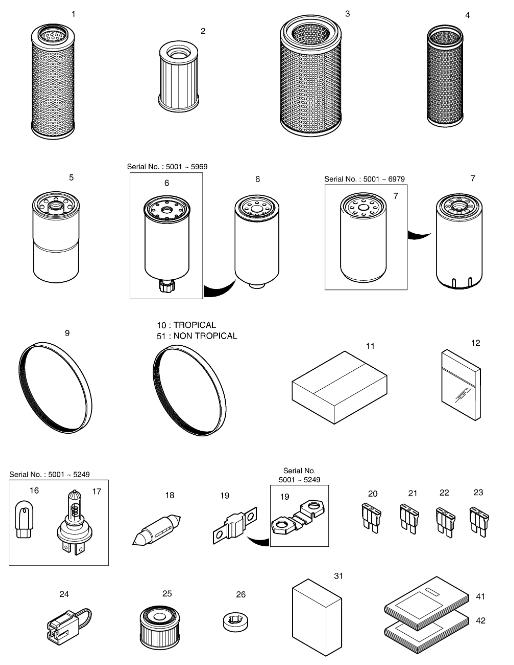

• Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
-.	101594-00068	[-]
1	400504-00279	[1]
1	474-00056	[1]	ELEMENT;FILTER	400504-00229
10	65.96801-0212	[1]
11	2512-1095D1	[1]	BOX;SPARE PARTS
12	2180-9153	[1]	O-RING KIT
16	515-00012A	[2]	BULB
17	2515-1022D1	[1]	BULB;HALOGEN
18	2515-1016D4	[2]	. BULB,HALOGEN
18	2515-1016D4	[1]	. BULB,HALOGEN
19	300803-00086	[2]
19	527-00005	[2]	FUSE;PREHEAT RELAY
2	400504-00241	[1]	ELEMENT,FILTER
2	2471-1154	[1]	ELEMENT;PILOT FILTER
20	2527-1016	[2]	FUSE,BLADE 10A
21	2527-1017	[2]	FUSE,BLADE 15A
22	2527-1018	[1]	FUSE,BLADE 20A
23	2527-1025	[1]	FUSE,BLADE 30A
24	2527-1023A	[1]	LINK,FUSIBLE
25	K1029257	[1]	ELEMENT;AIR BREATHER
25	400504-00254	[1]	. ELEMENT,AIR BREATHER
26	400504-00045	[1]	. ELEMENT,FUEL CAP
3	474-00038	[1]	ELEMENT;OUTER
31	910-00019	[9]	OIL;ENGINE
4	474-00037	[1]	ELEMENT;INNER
41	950106-00076EF	[1]
42	950106-00077BE	[1]
5	400508-00093	[1]
5	65.05510-5022B	[1]	CARTRIDGE;OIL FILTER	400508-00093
51	130205-00465	[1]
6	400504-00078	[1]	.. ELEMENT,FUEL FILTER
6	65.12503-5016B	[1]	. ELEMENT;E/G FUEL FILTER
7	400508-00063	[1]	PRE FILTRE A ESSENCE
7	K1006529	[1]	FILTER;PRE FUEL
9	2106-1019D28	[1]	V-BELT(4PK 1210L AIR-COMP)





• Description

parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
