YN32W01058P1 Carrier Assy Fit Holland Excavator E175B E215B Swing Reduction Parts
- YN32W01058P1 Carrier Assy Fit Holland Excavator E175B E215B Swing Reduction Parts
- Spec Sheet
| Product name | Carrier assy |
| Part number | YN32W01058P1 |
| Model | Holland E215B E175B |
| egory group | Holland Excavator Swing Reduction Gear |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

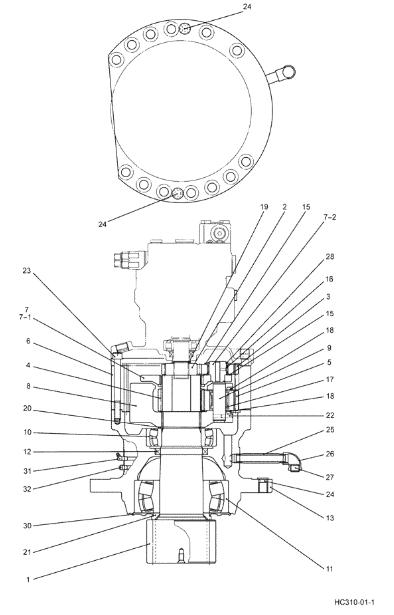

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| . . | YN32W00019F1 | [1] | GEAR REDUCTION UNIT | SM Assembly, Swing Superseded by part number: YN32W00022F2 |
| 1 | YN32W01051P1 | [1] | SHAFT | SM |
| 2 | YN32W01052P1 | [1] | GEAR | SM Sun |
| 3 | YN32W01053P1 | [3] | GEAR | SM Pinion |
| 4 | YN32W01054P1 | [1] | GEAR | SM Sun |
| 5 | YN32W01055P1 | [4] | GEAR | SM Pinion |
| 6 | YN32W01056P1 | [1] | RING GEAR | SM |
| 7 | YN32W01057F1 | [1] | CARRIER | SM Spider Assembly |
| 7-1. | YN32W01009P1 | [1] | Spider | |
| 7-2. | YN32W01066P1 | [3] | SHAFT | KOB |
| 8 | YN32W01058P1 | [1] | CARRIER,Housing, Spider | SM Spider |
| 9 | YN32W01067P1 | [4] | SHAFT | SM |
| 10 | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: 25Z804D18 |
| 11 | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: R25P0047D9 |
| 12 | YN32W01060P1 | [1] | OIL SEAL | SM Oil Seal |
| 13 | YN32W01104P1 | [1] | BOX | SM Housing Superseded by part number: YN32W00022F2 |
| 15 | YN32W01071P1 | [6] | WASHER | SM Washer,Thrust |
| 16 | YN32W01073P1 | [3] | NEEDLE BEARING | SM Needle Superseded by part number: YN32W00022F3 |
| 17 | YN32W01072P1 | [4] | NEEDLE BEARING | SM Needle |
| 18 | YN32W01063P1 | [8] | WASHER | SM Washer,Thrust |
| 19 | ZR16X03500 | [1] | RING | KOB Reatining -- ID 32.20 x OD 35 x Th 1.6mm |
| 20 | ZR16X09000 | [1] | RING | KOB Retaining -- ID 84.50 x OD 108 x Th 3.0mm |
| 21 | YN32W01082P1 | [1] | SLEEVE | SM |
| 22 | ZP26D08025 | [4] | PIN | KOB Roll -- OD 08 x 25mm Long |
| 23 | HS23C14135G1 | [11] | SCREW,M14 x 135mm | SM M14x2.0x135mm |
| 24 | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
| 25 | YN32W01080D1 | [1] | RIGID TUBE | SM 1/2" PT x 112mm Long |
| 26 | ZG31U08000 | [1] | HYD CONNECTOR | SM 1/2" PT |
| 27 | ZE82T08000 | [1] | PLUG | KOB 1/2" PT |
| 28 | ZR16X04000 | [3] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 30 | YN32W01081P1 | [1] | OIL SEAL | SM Oil Seal |
| 31 | ZG91V02000 | [1] | LUBE NIPPLE | KOB 67°x1/8" PT |
| 32 | 2444Z3305 | [1] | BREATHER | KOB |
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
