11NA71041 11NA-71041 Fuel Filter Water Separator Fit HYUNDAI Excavator Filter

• Compatible models

7 SERIES WHEEL EXCAVATOR R140W7A R170W7A R200W7A

7-SERIES CRAWLER EXCAVATOR R110-7A R140LC-7A R160LC7A R180LC7A R210LC7A R210NLC7A R250LC7A

7-SERIES FORK LIFT-DIESEL 110D-7A 110D-7E 110DE 180DE 50D-7A 50D-7K

7-SERIES WHEEL LOADER HL730-7A HL730TM7A HL740-7A HL740TM-7A HL757-7A HL757TM7A HL760-7A

9-SERIES CRAWLER EXCAVATOR R140LC9 R160LC9 R180LC9 R210LC9 R210NLC9 R220LC9A R220NLC9A R250LC9 R250LC9A R290LC9 R290LC9MH R300LC9A R320LC9 R330LC9A R360LC9 R380LC9A R380LC9DM R430LC9 R430LC9A RB260LC9S

9-SERIES FORK LIFT-DIESEL 180D-9 35D-9A 35D-9K

9-SERIES WHEEL EXCAVATOR R140W9 R140W9A R170W9 R180W9A R210W-9 R210W9A R210W9MH

9-SERIES WHEEL LOADER HL730-9 HL730-9A HL730-9S HL730-9SB HL730TM-9 HL730TM-9A HL740-9 HL740-9A HL740TM-9 HL740TM-9A HL757-9 HL757-9A HL757-9S HL757TM-9 HL757TM-9A HL760-9 HL760-9A Hyundai

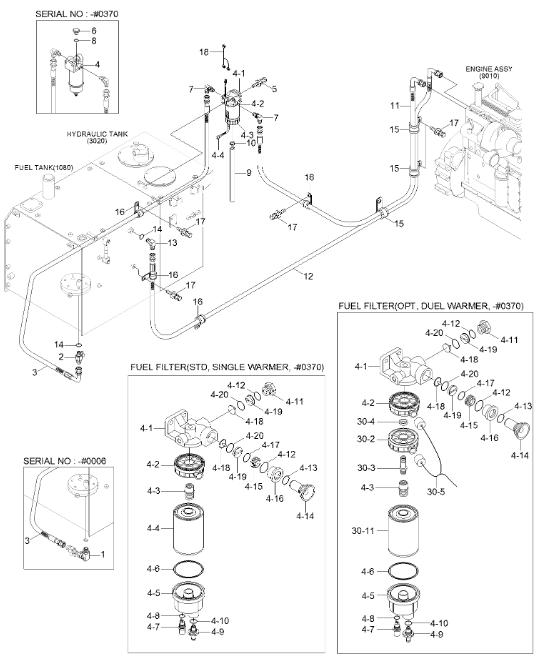

• Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
1	11Q4-50030	[1]	ELBOW-90
2	11Q4-50010	[1]	VALVE-FUEL CUT
3	11Q9-50010	[1]	HOSE-FUEL
3	11Q9-50040	[1]	HOSE-FUEL
4	11NA-71000	[1]	FUEL FILTER & W/S ASSY	S/F/WARMER
4-1.	11NA-71010	[1]	HEAD-FILTER	INCL 4-11~4-20
4-2.	11NA-71020	[1]	HEATER-FUEL
4-3.	11NA-71030	[1]	CONNECTOR
4-4.	11NA-71040	[1]	ELEMENT ASSY
4-5.	11NA-71050	[1]	BOWL-CLEAR
4-6.	11NA-71060	[1]	O-RING
4-7.	11NA-71070	[1]	SENSOR
4-8.	11NA-71080	[1]	O-RING
4-9.	11NA-71090	[1]	VALVE-SCREW
4-10.	11NA-71100	[1]	O-RING
N4-11.	11NA-71110	[1]	PLUG-SCREW
N4-12.	11NA-71120	[2]	O-RING
N4-13.	11NA-71130	[1]	O-RING
N4-14.	11NA-71140	[1]	PUMP-BODY PRIMING
N4-15.	11NA-71150	[1]	PUMP-HEAD
N4-16.	11NA-71160	[1]	HOLDER
N4-17.	11NA-71170	[1]	O-RING
N4-18.	11NA-71180	[2]	PLATE-VALVE
N4-19.	11NA-71190	[2]	FRAME-VALVE
N4-20.	11NA-71200	[2]	O-RING
4	11QA-71000	[1]	FUEL FILTER ASSY	S/F/WARMER
4	11QA-73000	[1]	FUEL FILTER ASSY	D/F/WARMER
4-1.	11QA-71010	[1]	HEAD ASSY
4-2.	11QA-71040	[1]	ELEMENT ASSY
4-3.	11QA-71050	[1]	BOWL ASSY	S/F/WARMER
4-3.	11QA-71030	[1]	BOWL ASSY	D/F/WARMER
4-4.	11QA-71020	[1]	WIF SENSOR ASSY
5	S037-102526	[2]	BOLT-W/WASHER
5	S037-103026	[2]	BOLT-W/WASHER
6	P210-101400	[1]	PLUG-HEX
7	11N8-50060	[2]	ELBOW-90
8	Y161-014001	[1]	O-RING
9	11M8-50030	[1]	HOSE ASSY
10	S520-015000	[1]	CLAMP-HOSE,S/DRIVE
10	S520-017000	[1]	CLAMP-HOSE
11	11Q9-50020	[1]	HOSE-FUEL
12	11NA-53031	[1]	HOSE-FUEL
13	P020-110003	[1]	ELBOW-90
14	S631-018004	[2]	O-RING
15	31L7-10220	[3]	CLAMP-TUBE
16	31L7-10340	[4]	CLAMP-TUBE INS
17	S037-101526	[4]	BOLT-W/WASHER
18	21QB-23500	[1]	HARNESS FUEL WARMER	D/F/WARMER
30	11NA-73000	[1]	FUEL FILTER & W/S ASSY	D/F/WARMER
30-1.	11NA-71001	[1]	FUEL FILTER & W/S ASSY	D/F/WARMER
30-11.	11NA-71041	[1]	ELEMENT ASSY	D/F/WARMER
30-2.	11NA-71020	[1]	HEATER-FUEL	D/F/WARMER
30-3.	11Q6-50100	[1]	CONNECTOR	D/F/WARMER
30-4.	11Q6-50110	[1]	SPACER	D/F/WARMER
30-5.	21Q8-23200	[1]	HARNESS-FUEL WARMER	D/F/WARMER



• Description

parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
