21EA50550 21EA-50550 Diode Fit HYUNDAI Excavator Electric Parts
- 21EA50550 21EA-50550 Diode Fit HYUNDAI Excavator Electric Parts
- Specifiion
| spare parts name | Diode |
| Equipment Model | HYUNDAI dozer, loader, excavator, forklift |
| Parts egory | HYUNDAI electronic spare parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Compatible models
3 SERIES WHEEL EXCAVATOR R130W3
3-SERIES CRAWLER EXCAVATOR R130LC3 R210LC3 R250LC3 R290LC3 R320LC3 R360LC3 R450LC3A
3-SERIES DIESEL FORK LIFT HDF15-3 HDF35-3 HDF50-3 HDF80-3
3-SERIES WHEEL LOADER HL720-3C HL730TM3C HL740-3ATM HL740TM-3A HL750-3 HL750TM3 HL760-3ATM HL770-3ATM HL7803A
5-SERIES DIESEL FORK LIFT HDF15-5 HDF20-5
5-SERIES LPG FORK LIFT HLF15C-5
7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210NLC7A R250LC7 R250LC7A R290LC7A R305LC7 R320LC7 R35-7Z R35Z-7A R370LC7 R450LC7A R500LC7 R500LC7A R55-7A R80-7 R8007AFS R800LC7A RD110-7 RD210-7V RD510LC-7
7-SERIES FORK LIFT-DIESEL 110D-7A 110D-7E 15D 180DE 20D-7E 20DF 20DT 35DF 50D-7A 50D-7K 50DF 80D-7
7-SERIES FORK LIFT-LPG 15G 15G-7A 15G-7M 15L 15L-7A 15L-7M 15LC-7M 20G 20L 20LC 25G-7A 25G-7M 25GC-7A 25GC-7M 25GC-7S 25L-7A 25L-7M 25LC-7A 25LC-7M 25LC-7S 25LF
7-SERIES SKID STEER LOADER HSL650-7 HSL650-7A HSL800-7
7-SERIES WHEEL LOADER HL730-7A HL730TM7A HL740-7A HL740-7S HL740TM-7A HL757-7A HL757-7S HL757TM7A HL760-7A HL770-7A HL780-7A
9-SERIES CRAWLER EXCAVATOR R1200-9 R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R160LC9 R160LC9S R180LC9 R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R235LCR9 R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH R360LC9 R380LC9A R380LC9MH R380LC9SH R390LC9 R430LC9 R430LC9A R430LC9SH R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S R55-9 R55-9A R800LC-9 R800LC9FS RB140LC9S RB220LC9S RB260LC9S RD140LC9 RD220LC9
9-SERIES FORK LIFT-DIESEL 110D-9 15D-9 15D-9S 180D-9 22D-9 22D-9E 22D-9S 22D-9T 250D-9

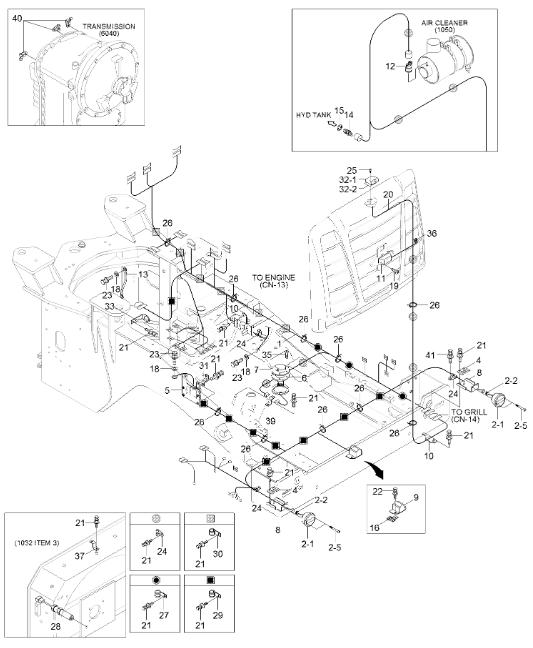

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21LN-33311 | [1] | HARNESS-FRAME | |
| 1-1. | 21LN-03270 | [1] | FUSE HOLDER ASSY-MAXI | NOT SHOWN |
| 1-2. | 21L7-60290 | [1] | HOUSING-RECEPT | NOT SHOWN |
| 1-3. | 21EA-50550 | [1] | DIODE-IN5406 | NOT SHOWN |
| 1-4. | 21LM-03180 | [1] | FUSE-MAXI(80A) | NOT SHOWN |
| 1-5. | 21LM-03140 | [1] | FUSE-MAXI(40A) | NOT SHOWN |
| 2 | 21EK-10411 | [2] | LAMP-TAIL STOP FLASHER | |
| 2-1. | 21EK-10180 | [1] | LAMP-TAIL STOP FLASHER | |
| 2-2. | 21EK-20200 | [1] | HARNESS-REAR COMBI | |
| 2-3. | 21EK-10290 | [2] | BULB-21W | NOT SHOWN |
| 2-4. | 21EK-10270 | [1] | BULB-5W | NOT SHOWN |
| 2-5. | 21LB-51550 | [2] | SCREW | |
| 4 | 21LM-03220 | [2] | SHIM | |
| 5 | 21LN-03111 | [1] | PLATE | |
| 6 | E128-1053 | [1] | GASKET | |
| 7 | 21LP-00180 | [1] | FUEL SENDOR | |
| 7-1. | 21N6-10710 | [1] | FLOAT | NOT SHOWN |
| 8 | 21LM-03202 | [2] | PLATE | |
| 9 | 21N4-46800 | [1] | BUZZER-BACK | |
| 10 | 21N5-40340 | [2] | CLIP-METAL | |
| 11 | 21LB-34250 | [1] | LAMP SUB-NUMBER PLATE | |
| 11-1. | 21EK-10160 | [1] | LAMP-NUMBER PLATE | NOT SHOWN |
| 11-2. | 21LB-34260 | [1] | HARNESS-EXT,NUM/LAMP | NOT SHOWN |
| 11-3. | 21EK-10260 | [1] | BULB-10W | NOT SHOWN |
| 12 | 11Q4-21010 | [1] | INDIOR | |
| 13 | 21NA-10500 | [1] | STRAP-EARTH | |
| 14 | 21EN-40100 | [1] | SENDER-TEMP | |
| 15 | 21EA-50260 | [1] | PACKING-TEMP SW | |
| 16 | 25D1-10640 | [1] | CLIP ASSY | |
| 18 | S431-100002 | [3] | WASHER-INTERNAL T/LOCK | |
| 19 | S161-040156 | [2] | SCREW-CROSS R/ROUND | |
| 20 | 21LN-03134 | [1] | HARNESS-GRILL | |
| 21 | S037-102026 | [34] | BOLT-W/WASHER | |
| 22 | S035-082026 | [2] | BOLT-W/WASHER | |
| 23 | S037-102022 | [3] | BOLT-W/WASHER | |
| 24 | S593-000702 | [11] | CLIP-HARNESS | |
| 25 | S161-060156 | [4] | SCREW-CROSS R/ROUND | REAR CAMERA |
| 26 | S552-035146 | [10] | CLAMP-BAND | |
| 27 | 31L7-10200 | [4] | CLAMP-TUBE | |
| 28 | 21LM-08210 | [1] | SENSOR-SPEED | |
| 29 | 31L7-10190 | [8] | CLAMP-TUBE | |
| 30 | 31L7-10210 | [6] | CLAMP-TUBE INS | |
| 31 | 21E7-0612 | [1] | PLATE-CONNECTOR | |
| 32 | 21LM-39002 | [1] | REAR VIEW CAMERA | REAR CAMERA |
| 32-1. | 21LM-38002 | [1] | REAR VIEW CAMERA ASSY | REAR CAMERA |
| N32-2. | 21LM-38101 | [1] | BRACKET ASSY | REAR CAMERA |
| 33 | 21LQ-01522 | [1] | PLATE | |
| 35 | S161-050156 | [5] | SCREW-CROSS R/ROUND | |
| 36 | S681-190400 | [1] | GROMMET | |
| 37 | 21N5-40340 | [1] | CLIP-METAL | REAR CAMERA |
| 39 | 21E7-0606 | [1] | PLATE-CONNECTOR | |
| 40 | S593-000902 | [3] | CLIP-HARNESS | |
| 41 | S037-121526 | [1] | BOLT-W/WASHER | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
