39Q812201 39Q812190 39Q8-12201 39Q8-12190 R300LC-9S Swing Carrier Assy No.2
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 39Q812201 39Q812190 39Q8-12201 39Q8-12190 R300LC-9S Swing Carrier Assy No.2
- Spec Sheet
| Product name | Swing reduction carrier assy no.2 |
| Part number | 39Q812201 39Q812190 39Q8-12201 39Q8-12190 |
| Model | R290LC9 R300LC9 |
| egory group | HYUNDAI Excavator Swing Reduction Gearbox Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Appliion
7-SERIES CRAWLER EXCAVATOR R290LC7A
9-SERIES CRAWLER EXCAVATOR R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH
F-SERIES CRAWLER EXCAVATOR HX300L HX330L Hyundai
- More other carrier applied to HYUNDAI equipment
| 39Q8-42190 CARRIER 2 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42270 CARRIER 1 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42180 CARRIER ASST KIT 1 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42260 CARRIER ASST KIT 2 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| XKDE-00215 CARRIER-SEAL |
| HL760-9S, HL770-9, HL770-9S, R300LC9S, R330LC9S, R360LC9, R430LC9 |
| XKAQ-00965 CARRIER 3 ASSY |
| R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| XKAQ-00966 CARRIER 3 |
| R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| XKAQ-00974 CARRIER ASSY 2 |
| R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| XKAQ-00975 CARRIER 2 |
| R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| 39Q8-12281 CARRIER NO.1 |
| HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH |
| 39Q8-12190 CARRIER ASSY NO.2 |
| HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH |
| 39Q8-12270 CARRIER ASSY NO.1 |
| HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH |
| HHI28-WP10 CARRIER |
| R290LC3H, R320LC3 |
| 3550BX000-07A CARRIER 3 SUB ASSY(7,14, |
| R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3 |
| 3550BX000-06 CARRIER 2 SUB ASSY(6,13, |
| R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3 |
| 3550BX067-05 CARRIER 1 SUB ASSY(5,12, |
| R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3 |
| 35050BAA-007A CARRIER NO3 |
| R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3 |
| 35050BAA-007 CARRIER |
| R280LC, R290LC |
| 35050BAA-006 CARRIER NO2 |
| R280LC, R290LC, R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3 |
| 35050BAA-005 CARRIER NO1 |
| R280LC, R290LC, R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3 |
| 6333700383 CARRIER |
| R280LC, R290LC, R290LC3, R290LC3H, R290LC3LL, R320LC, R320LC3 |
| XKAQ-00975 CARRIER 2 |
| R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| XKAQ-00974 CARRIER ASSY 2 |
| R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| 39Q7-12200 CARRIER ASSY 1 |
| HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 39Q8-12281 CARRIER NO.1 |
| HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH |
| 39Q8-12190 CARRIER ASSY NO.2 |
| HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH |
| 39Q8-12270 CARRIER ASSY NO.1 |
| HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH |
| 21622Z8931301 CARRIER 1 |
| R320LC3 |
| 2162220485401 CARRIER 2 |
| R320LC3 |
| 3524120-0084 CARRIER-NO1 |
| R360LC3 |
| 3521120-0061 CARRIER SUB ASSY 1 |
| R360LC3 |
| 3521120-0064 CARRIER SUB ASSY 2 |
| R360LC3 |
| 208-26-52220 CARRIER |
| R420 |
| 207-27-52181 CARRIER |
| R420 |
| 208-27-52190 CARRIER |
| R420 |

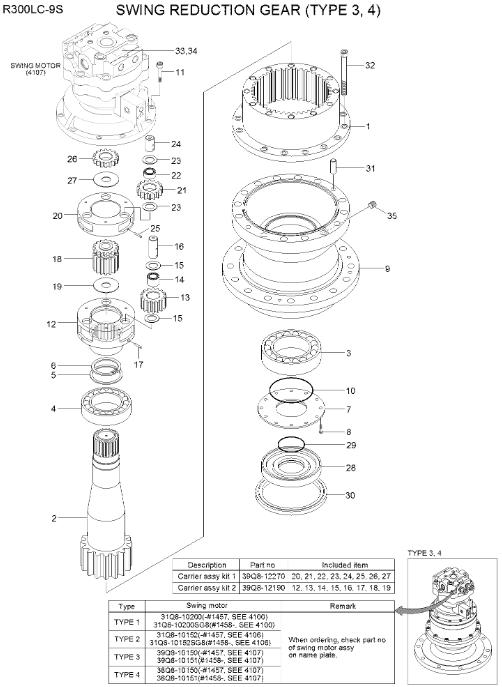

- Parts List Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *-2. | 39Q8-12100 | [1] | SWING REDUCTION GEAR | SEE 4107 |
| *-2. | 39Q8-12101 | [1] | SWING REDUCTION GEAR | SEE 4107 |
| 1 | 39Q8-12110 | [1] | GEAR RING | |
| 2 | 39Q8-12120 | [1] | SHAFT-DRIVE | |
| 3 | 39Q8-12130 | [1] | BEARING-SPH.ROLLER | |
| 4 | 39Q8-12140 | [1] | BEARING-SPH.ROLLER | |
| 5 | 39Q8-12150 | [1] | PLATE-THRUST | |
| 6 | 39Q8-12160 | [1] | RING-SNAP | |
| 7 | 39Q8-12170 | [1] | COVER | |
| 8 | S017-120306 | [12] | BOLT-HEX | |
| 9 | 39Q8-12180 | [1] | CASING | |
| 10 | S632-290001 | [1] | O-RING | |
| 11 | S109-100306 | [12] | BOLT-SOCKET | |
| K12. | 39Q8-12201 | [1] | CARRIER NO.2 | |
| K13. | 39Q8-12211 | [4] | GEAR-PLANETARY NO.2 | |
| K14. | 39Q8-12220 | [4] | BEARING-NEEDLE NO.2 | |
| K15. | 39Q8-12231 | [8] | WASHER-THRUST NO.2 | |
| K16. | 39Q8-12240 | [4] | PIN-CARRIER NO.2 | |
| K17. | S472-910404 | [4] | PIN-SPRING | |
| K18. | 39Q8-12251 | [1] | GEAR-SUN NO.2 | |
| K19. | 39Q8-12261 | [1] | PLATE-THRUST NO.2 | |
| K20. | 39Q8-12281 | [1] | CARRIER NO.1 | |
| K21. | 39Q8-12291 | [3] | GEAR-PLANETARY NO.1 | |
| K22. | 39Q8-12300 | [3] | BEARING-NEEDLE NO.1 | |
| K23. | 39Q8-12311 | [6] | WASHER-THRUST NO.1 | |
| K24. | 39Q8-12320 | [3] | PIN-CARRIER NO.1 | |
| K25. | S472-800404 | [3] | PIN-SPRING NO.1 | |
| K26. | 39Q8-12331 | [1] | GEAR-SUN NO.1 | |
| K27. | 39Q8-12341 | [1] | PLATE-THRUST NO.1 | |
| 28 | 39Q8-12350 | [1] | SLEEVE | |
| 29 | S632-140001 | [1] | O-RING | |
| 30 | 39Q6-12350 | [1] | SEAL-OIL | |
| 31 | 39Q6-41450 | [2] | PIN-PARALLEL | |
| 32 | S109-18050D | [14] | BOLT-SOCKET | |
| 33 | 39Q8-12360 | [1] | NAME PLATE | |
| 34 | 39Q6-41800 | [2] | RIVET | |
| 35 | P220-430204 | [1] | PLUG-HEX | |
| K. | 39Q8-12190 | [1] | CARRIER ASSY NO.2 | SEE ILLUST |
| K. | 39Q8-12270 | [1] | CARRIER ASSY NO.1 | SEE ILLUST |
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Advantage
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
