2785225 278-5225 Oil Pressure Sensor Fit For Excavator Electric Parts
-
2785225 278-5225 Oil Pressure Sensor Fit For Excavator Electric Parts
-
Specifiion
| Appliion | C A T electric spare parts |
| Parts Name | Oil Pressure Sensor |
| Parts No | 2785225 278-5225 |
| Model | C4.4 C6.6 |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
ASPHALT PAVER AP-1000E AP-1055E AP-555E AP-600D AP-655D BG500E BG600D BG655D
BACKHOE LOADER 420E 430E 450E
COMPACT WHEEL LOADER 914G
EXCAVATOR 320D GC 320D L 323D L
GENERATOR SET C4.4 C6.6
INDUSTRIAL ENGINE C4.4 C6.6
INTEGRATED TOOLCARRIER IT14G IT14G2 IT38H
KNUCKLEBOOM LOADER 559
LOAD HAUL DUMP R1300G II
MOTOR GRADER 120M 12M
PIPELAYER PL61
PNEUMATIC COMPACTOR CW-34
PUMPER SPF343C
TRACK LOADER 953D 963D
TRACK-TYPE TRACTOR D3K XL D4K XL D5K LGP D5R LGP D6K D6K LGP D6K XL D6N
VIBRATORY COMPACTOR CB-54 CB-54B CB-64 CP-44 CP-56 CP-64 CP-76 CS-44 CS-54 CS-54B CS-56 CS-56B CS-64 CS-68B CS-74 CS-74B CS-78B
WHEEL FELLER BUNCHER 2470C 553C
WHEEL LOADER 924H 924HZ 928H 928HZ 938H
WHEEL TRACTOR-SCRAPER 613G
WHEELED EXCAVATOR M313D M315D M315D2 M316D M317D2 M318D M318D MH M322D M322D MH

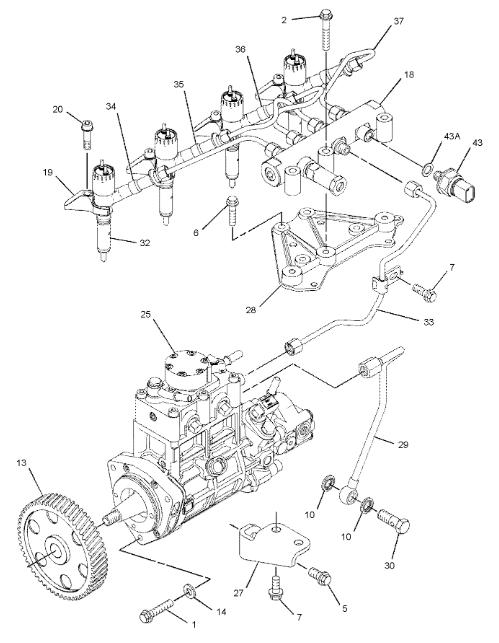

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6I-0260 M | [3] | BOLT (M8X1.25X25-MM) | |
| 2 | 6I-0455 M | [3] | BOLT (M8X1.25X55-MM) | |
| 3 | 6I-0572 M | [4] | BOLT (M8X1.25X20-MM) | |
| 4 | 7W-2632 | [1] | WASHER (8.5X16.8X1.6-MM THK) | |
| 5 | 100-4830 M | [1] | BOLT (M10X1.5X20-MM) | |
| 6 | 101-3895 M | [4] | BOLT (M8X1.25X35-MM) | |
| 7 | 124-3815 M | [4] | BOLT (M8X1.25X16-MM) | |
| 8 | 141-8584 M | [4] | BOLT (M8X1.25X50-MM) | |
| 9 | 300-6714 | [8] | MOUNT | |
| 10 | 160-0162 | [2] | WASHER | |
| 11 | 217-0099 | [4] | SPACER (8.2X25X2-MM THK) | |
| 12 | 217-8477 | [1] | CLIP | |
| 13 | 230-8989 | [1] | GEAR-FUEL PUMP (68-TEETH) | |
| 14 | 232-3149 | [6] | WASHER (8.35X16.85X1.55-MM THK) | |
| 16 | 268-6678 | [1] | BRACKET AS | |
| 260-3719 | [1] | BRACKET | ||
| 16A. | 260-3939 M | [1] | SCREW-HEX HEAD (M6X1X25-MM) | |
| 17 | 268-6677 | [1] | BRACKET AS | |
| 260-3718 | [1] | BRACKET | ||
| 17A. | 260-3939 M | [1] | SCREW-HEX HEAD (M6X1X25-MM) | |
| 18 | 308-8425 | [1] | RAIL AS-FUEL | |
| 19 | 278-5168 | [4] | CLAMP-INJECTOR | |
| 20 | 278-5170 | [4] | BOLT | |
| 23 | 278-5203 | [4] | SPACER | |
| 25 | 283-2271 Y | [1] | PUMP GP-FUEL INJECTION | |
| 27 | 298-4535 | [1] | BRACKET-SUPPORT | |
| 28 | 298-4536 | [1] | BRACKET-MOUNTING | |
| 29 | 298-4542 | [1] | TUBE AS | |
| 30 | 298-4543 | [1] | BOLT | |
| 31 | 308-3395 | [1] | BRACKET-MOUNTING | |
| 32 | 292-3780 Y | [4] | INJECTOR GP-FUEL | |
| 33 | 298-4537 | [1] | TUBE AS | |
| 34 | 298-4538 | [1] | TUBE AS (CYL NO. 1) | |
| 35 | 298-4539 | [1] | TUBE AS (CYL NO. 2) | |
| 36 | 298-4540 | [1] | TUBE AS (CYL NO. 3) | |
| 37 | 298-4541 | [1] | TUBE AS (CYL NO. 4) | |
| 38 | 278-5225 | [1] | KIT-SENSOR (ENGINE OIL PRESSURE) | |
| 38A. | 199-9267 | [1] | SEAL-O-RING | |
| 39 | 311-3858 | [1] | KIT-SENSOR (ENGINE SPEED) | |
| 238-0120 | [1] | SENSOR GP-SPEED | ||
| 39A. | 274-1639 | [1] | SEAL | |
| 40 | 278-5272 | [1] | KIT-SENSOR (AIR TEMPERATURE) | |
| 40A. | 278-5226 | [1] | SEAL-O-RING | |
| 41 | 278-5273 | [1] | KIT-SENSOR (AIR PRESSURE) | |
| 41A. | 199-9252 | [1] | SEAL-O-RING | |
| 42 | 278-5307 | [1] | KIT-SENSOR (COOLANT TEMPERATURE) | |
| 42A. | 199-9267 | [1] | SEAL-O-RING | |
| 43 | 311-6342 | [1] | SENSOR AS-PRESSURE (FUEL RAIL PRESSURE) | |
| 43A. | 309-8006 | [1] | WASHER | |
| 278-4138 F | [5] | KIT-FUEL LINE PROTECTION | ||
| F | NOT SHOWN | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
-
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
