2785307 278-5307 Coolant Temperature Sensor Fit To Wheel Excavator Electric Parts
- 2785307 278-5307 Coolant Temperature Sensor Fit To Wheel Excavator Electric Parts
- Specifiion
| spare parts name | Coolant Temperature Sensor |
| Equipment Model | M315 M322 320D GC 323D 928 938 CS-54 |
| Parts egory | C A T wheel excavator electronic spare parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Compatible models
ASPHALT PAVER AP-1000E AP-1055E AP-555E AP-600D AP-655D BG500E BG600D BG655D
BACKHOE LOADER 420E 430E 450E
COMPACT WHEEL LOADER 914G
EXCAVATOR 320D GC 320D L 323D L
GENERATOR SET C4.4 C6.6
INDUSTRIAL ENGINE C4.4 C6.6
INTEGRATED TOOLCARRIER IT14G IT14G2 IT38H
KNUCKLEBOOM LOADER 559
LOAD HAUL DUMP R1300G II
MOTOR GRADER 120M 12M
PIPELAYER PL61
PNEUMATIC COMPACTOR CW-34
PUMPER SPF343C
TRACK LOADER 953D 963D
TRACK-TYPE TRACTOR D3K XL D4K XL D5K LGP D5R LGP D6K D6K LGP D6K XL D6N
VIBRATORY COMPACTOR CB-54 CB-54B CB-64 CP-44 CP-56 CP-64 CP-76 CS-44 CS-54 CS-54B CS-56 CS-56B CS-64 CS-68B CS-74 CS-74B CS-78B
WHEEL FELLER BUNCHER 2470C 553C
WHEEL LOADER 924H 924HZ 928H 928HZ 938H
WHEEL TRACTOR-SCRAPER 613G
WHEELED EXCAVATOR M313D M315D M315D2 M316D M317D2 M318D M318D MH M322D M322D MH C A T

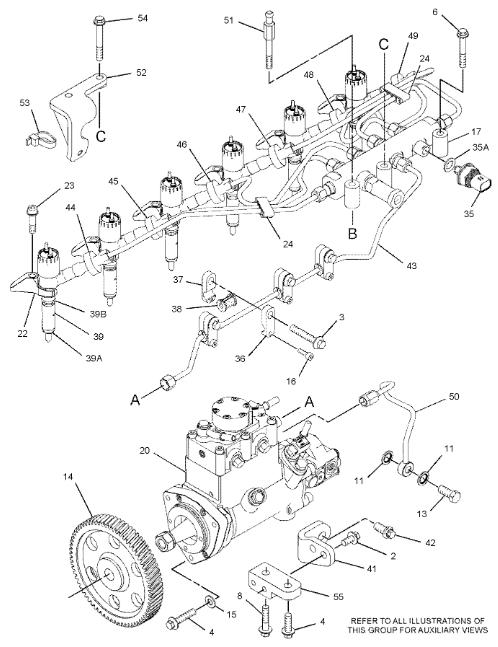

- parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 293-9901 | [1] | BRACKET | |
| 2 | 6I-0217 M | [5] | BOLT (M8X1.25X20-MM) | |
| 3 | 6I-0254 CM | [4] | BOLT (M8X1.25X30-MM) | |
| 4 | 6I-0260 M | [4] | BOLT (M8X1.25X25-MM) | |
| 5 | 6I-0456 M | [4] | BOLT (M8X1.25X45-MM) | |
| 6 | 6I-4793 CM | [1] | BOLT (M8X1.25X50-MM) | |
| 7 | 7W-2632 | [1] | WASHER (8.5X16.8X1.6-MM THK) | |
| 8 | 101-3895 M | [1] | BOLT (M8X1.25X35-MM) | |
| 9 | 124-3815 M | [1] | BOLT (M8X1.25X16-MM) | |
| 10 | 155-0576 | [8] | MOUNT-ISOLATION | |
| 11 | 216-9752 | [2] | WASHER | |
| 12 | 217-0099 | [4] | SPACER (8.2X25X2-MM THK) | |
| 13 | 225-8524 | [1] | BOLT-SPECIAL | |
| 14 | 230-8989 | [1] | GEAR-FUEL PUMP (68-TEETH) | |
| 15 | 232-3149 | [6] | WASHER (8.35X16.85X1.55-MM THK) | |
| 16 | 241-4291 C | [4] | SCREW | |
| 17 | 308-8426 | [1] | RAIL AS-FUEL | |
| 18 | 268-6677 | [1] | BRACKET AS | |
| 260-3718 | [1] | BRACKET | ||
| 18A. | 260-3939 M | [1] | SCREW-HEX HEAD (M6X1X25-MM) | |
| 19 | 268-6678 | [1] | BRACKET AS | |
| 260-3719 | [1] | BRACKET | ||
| 19A. | 260-3939 M | [1] | SCREW-HEX HEAD (M6X1X25-MM) | |
| 20 | 276-8398 Y | [1] | PUMP GP-FUEL INJECTION | |
| 22 | 278-5168 | [6] | CLAMP-INJECTOR | |
| 23 | 278-5170 | [6] | BOLT | |
| 24 | 278-5180 | [2] | CLIP | |
| 25 | 278-5201 | [2] | CONNECTION | |
| 26 | 278-5202 | [2] | SEAL-O-RING | |
| 27 | 278-5203 | [4] | SPACER | |
| 30 | 278-5225 | [1] | KIT-SENSOR (ENGINE OIL PRESSURE) | |
| 30A. | 278-5226 | [1] | SEAL-O-RING | |
| 31 | 311-3858 | [1] | KIT-SENSOR (ENGINE SPEED) | |
| 31A. | 274-1639 | [1] | SEAL | |
| 238-0120 | [1] | SENSOR GP-SPEED | ||
| 32 | 278-5272 | [1] | KIT-SENSOR (INTAKE AIR TEMPERATURE) | |
| 32A. | 278-5226 | [1] | SEAL-O-RING | |
| 33 | 278-5273 | [1] | KIT-SENSOR (AIR PRESSURE) | |
| 33A. | 199-9252 | [1] | SEAL-O-RING | |
| 34 | 278-5307 | [1] | KIT-SENSOR (COOLANT TEMPERATURE) | |
| 34A. | 199-9267 | [1] | SEAL-O-RING | |
| 35 | 311-6342 | [1] | SENSOR AS-PRESSURE (FUEL RAIL PRESSURE) | |
| 35A. | 309-8006 | [1] | WASHER | |
| 36 | 280-1889 C | [4] | CLAMP | |
| 37 | 280-1890 C | [4] | CLAMP | |
| 38 | 280-1891 C | [4] | ISOLATOR | |
| 39 | 282-0490 | [6] | INJECTOR GP-FUEL | |
| (EACH INCLUDES) | ||||
| 39A. | [1] | WASHER | ||
| 39B. | 274-1639 | [1] | SEAL | |
| 40 | 286-3683 | [1] | CONTROL GP-UNPROGRAMMED | |
| 41 | 287-6838 | [1] | BRACKET | |
| 42 | 287-6839 | [2] | BOLT | |
| 43 | 290-3910 | [1] | LINE-FUEL INJECTION (FUEL) | |
| 44 | 290-3911 | [1] | LINE-FUEL INJECTION (CYL NO. 1) | |
| 45 | 290-3912 | [1] | LINE-FUEL INJECTION (CYL NO. 2) | |
| 46 | 290-3913 | [1] | LINE-FUEL INJECTION (CYL NO. 3) | |
| 47 | 290-3914 | [1] | LINE-FUEL INJECTION (CYL NO. 4) | |
| 48 | 290-3915 | [1] | LINE-FUEL INJECTION (CYL NO. 5) | |
| 49 | 290-3916 | [1] | LINE-FUEL INJECTION (CYL NO. 6) | |
| 50 | 292-0848 | [1] | TUBE (ENGINE OIL) | |
| 51 | 300-2944 C | [1] | STUD | |
| 52 | 300-2940 C | [1] | BRACKET | |
| 53 | 217-9039 C | [1] | STRAP-CABLE | |
| 54 | 6I-4374 CM | [4] | BOLT (M8X1.25X60-MM) | |
| 55 | 310-7918 | [1] | BRACKET-SUPPORT | |
| 278-4138 F | [4] | KIT-FUEL LINE PROTECTION | ||
| C | CHANGE FROM PREVIOUS TYPE | |||
| F | NOT SHOWN | |||
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION | |||
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
