2440-9236KT 401107-00197A Seal Kit Fit DOOSAN S220-V S225-V For Excavator Parts
- 2440-9236KT 401107-00197A Seal Kit Fit DOOSAN S220-V S225-V For Excavator Parts
- Specifiion
| egory | DOOSAN Arm Cylinder Parts |
| Name | Seal Kit |
| Parts No | 2440-9236KT 24409236KT |
| Machine Model | Tractor, Excavator |
| Engine model | S220-V S225-V |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATOR SOLAR 200W-V SOLAR 210W-V SOLAR 220LC-6 SOLAR 220LC-V SOLAR 220N-V SOLAR 225LC-V SOLAR 230LC-V SOLAR 450LC-VDoosan
- More other seal kit fit for DOOSAN machine
| E5130310 SEAL;SLIPPER |
| Doosan |
| E5500310 SEAL;BUFFER |
| Doosan |
| 2440-9234KT Doosan |
| 2440-9234KT SEAL KIT;BOOM CYL. |
| Doosan |
| E5130260 SEAL;SLIPPER |
| Doosan |
| E5500280 SEAL;BUFFER |
| Doosan |
| 1.180-00667 SEAL KIT;STEERING CYL. |
| Doosan |
| 232117 SEAL;OIL |
| Doosan |
| 401-00059KT SEAL KIT;BODY+REG.+PTO |
| Doosan |
| PTCV45V SEAL;OIL |
| Doosan |
| 440-00184KT SEAL KIT |
| Doosan |
| E5130460 SEAL;SLIPPER |
| Doosan |
| E5500380 SEAL;BUFFER |
| Doosan |

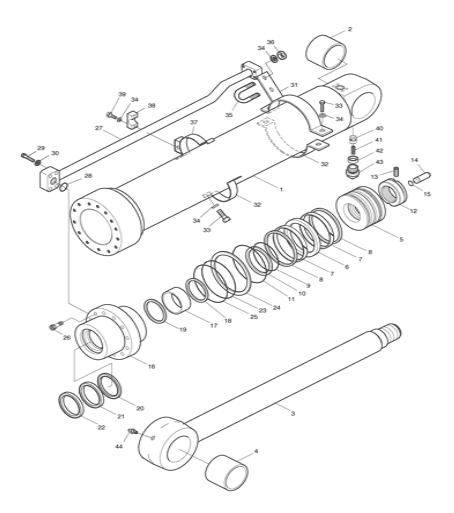

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| [1] | SEAL KIT;ARM CYL. | |||
| -. | 2440-9236 | [1] | CYLINDER;ARM | 2440-9236A |
| -. | 2440-9236A | [1] | CYLINDER;ARM | 2440-9236B |
| -. | 2440-9236B | [1] | CYLINDER;ARM | |
| 1 | 53A288-1 | [1] | TUBE ASS'Y | |
| 1 | 53A288-2 | [1] | TUBE ASS'Y | |
| 10 | 53B315-0 | [1] | RING;BACK UP | |
| 11 | 00C307-0 | [1] | RING;CUSHION | |
| 12 | 80A478-1 | [1] | NUT;PISTON | |
| 12 | 80A478-2 | [1] | NUT;PISTON | |
| 13 | E1330534 | [1] | SCREW;SET | |
| 13 | E1330544 | [1] | SCREW;SET | |
| 14 | 03A713-0 | [1] | PLUNGER;CUSHION | |
| 15 | 03A714-0 | [1] | RING;STOP | |
| 16 | 53A295-1 | [1] | COVER;ROD | |
| 17 | E8412282 | [1] | BUSH;DU | |
| 18 | 00M314-0 | [1] | RING;RETAINING | |
| 19 | E5500310 | [1] | SEAL;BUFFER | |
| 2 | 03A705-1 | [1] | BUSH;STEEL | |
| 2 | 00T194-0 | [1] | BUSH;STEEL | |
| 20 | E5303260 | [1] | PACKING;U | |
| 21 | E6020310 | [1] | WIPER;DUST | |
| 22 | 00M316-0 | [1] | RING;RETAINING | |
| 23 | E6311701 | [1] | O-RING | |
| 24 | 53A379-0 | [1] | RING;BACK UP | |
| 25 | E6311741 | [1] | O-RING | |
| 26 | E0502149 | [14] | BOLT;SOCKET | |
| 27 | 53A296-1 | [1] | PIPE ASS'Y-R | |
| 28 | E6300761 | [1] | O-RING | |
| 29 | E0501546 | [4] | BOLT;SOCKET | |
| 3 | 53A292-1 | [1] | ROD ASS'Y | |
| 3 | 53A292-2 | [1] | ROD ASS'Y | |
| 30 | E3110112 | [4] | WASHER;SPRING | |
| 31 | 53A402-0 | [1] | PIPE BAND ASS'Y | |
| 31 | 53A551-0 | [1] | PIPE BAND ASS'Y-A | |
| 32 | 04A660-0 | [2] | BAND;PIPE | |
| 32 | 00P373-0 | [2] | BAND;PIPE | |
| 33 | E0020683 | [4] | BOLT;HEX | |
| 34 | E3110102 | [8] | WASHER;SPRING | |
| 35 | 03A534-0 | [1] | U-BOLT | |
| 36 | E2022033 | [2] | NUT;HEX | |
| 37 | 53A405-0 | [1] | PIPE BAND ASS'Y-R | |
| 37 | 53A563-0 | [1] | PIPE BAND ASS'Y-B | |
| 38 | 00C270-0 | [1] | CLAMP;PIPE | |
| 39 | E0020733 | [2] | BOLT;HEX | |
| 4 | 03A705-1 | [1] | BUSH;STEEL | |
| 4 | 00T194-0 | [1] | BUSH;STEEL | |
| 40 | 03A260-0 | [1] | VALVE;CHECK | |
| 41 | 03A729-0 | [1] | SPRING | |
| 42 | 03A728-0 | [1] | SUPPORT;SPRING | |
| 43 | E1500030 | [1] | PLUG | |
| 44 | E8841022 | [1] | NIPPLE;GREASE | |
| 5 | 53A304-0 | [1] | PISTON | |
| 6 | E5130310 | [1] | SEAL;SLIPPER | |
| 7 | 00W264-0 | [2] | RING;WEAR | 00Z108-0 |
| 7 | 00Z108-0 | [2] | RING;WEAR | |
| 8 | 00R725-0 | [2] | RING;SLYD | |
| 9 | E6311421 | [1] | O-RING |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
