198586140 198517240 198517230 154-1203 Main Liner Excavator Parts Fit For 404C-22 C2.2
- 198586140 198517240 198517230 154-1203 Main Liner Excavator Parts Fit For 404C-22 C2.2
- Specifiion
| egory | Main liner STD for PERKINS |
| Parts Name | Main Liner |
| Parts No | 198586140 198517230 198517240 U5MB0025 154-1203 |
| Engine model | 404C-22 C2.2 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
AKSA GENERATOR ADP-ULP28 w/ PERKINS 404D-22T (GP) 404C-22 ( HP) 404C-22 ( HP) 404C-22T (HR) 404D-22T (GP) 404C-22T (HR) 404D-22T (GP) 404C-22 ( HP) 404C-22T (HR) Engne, ADP-ULP20 w/ 404A-22 (GV) or 404D-22 (GN) Engine, ADP-ULP30 w/ 404D-22TA (GR) Engine, AT30 w/ 404D-22TA (GR) Engine
COMPACT WHEEL LOADER 902
GENERATOR SET 2.2
INDUSTRIAL ENGINE 014 024 024C 2.2
MINI HYD EXCAVATOR 04.5
MULTI TERRAIN LOADER 47B 57B
SKID STEER LOADER 16 16B 26B 32B 42B
VIBRATORY COMPACTOR B-334D B-334E B-335D erpillar
- More glow plug applied to heavy equipment
| 3712718 KIT-HYD CYLINDER SEAL |
| 216B, 216B3, 226B, 226B3, 247B, 247B3 |
| 7W7732 KIT-PISTON RINGS |
| 206, 3014 |
| 0676987 KIT-ELEMENT |
| 206, 214, 3003, 3011C, 3013, 3013C, 3014, 3024, 3024C, 3034, 3054, 3056, 426, 428, AP-1200, AP-800, C1.1, C1.5, C1.6, C2.2, CB-334D, CB-335D, CB-424, CB22B, CB24B, CB32B, CB34B, CB34B XW, CC24B, CC34B |
| 1566977 KIT-CRANKSHAFT BEARING |
| 3013, 3013C, 302.5, 303.5, C1.1, C1.5, C2.2, CB-214D, CB-214E, CB-22, CB-334D, CB-334E, CB-335D, CB-34, CB22B, CB24B, CB32B, CC24B |
| 1566978 KIT-CRANKSHAFT BEARING |
| 3013, 3013C, 302.5, 303.5, C1.1, C1.5, C2.2, CB-214D, CB-214E, CB-22, CB-334D, CB-334E, CB-335D, CB-34, CB22B, CB24B, CB32B, CC24B |
| 1648900 KIT-GASKET |
| 3014, 3024, 304.5, 902 |
| 1558078 KIT-ENGINE GASKET |
| 3013, 302.5, 303.5, CB-214D, CB-334D, CB-335D |
| 1934321 KIT-SEAL |
| 304.5 |
| 1168660 KIT-SERVICE METER |
| 902, 906, 908, CB-434D, CB-534D, CB-634D, D6F SR, D6G SR, D6H, D6H XL, D6H XR, D7H, D8N, D8R |
| 2142465 KIT-SERVICE METER |
| 902, 906, 908, AP-1055D, AP-655C, BG-2455D, BG-260D, CB-434D, CB-534D, CB-564D, CB-634D, D6E |
| 1105063 KIT-HEIGHT RISER |
| 814F, 814F II, 815F, 815F II, 816F, 816F II, 902, 906, 908, 914G, 918F, 924F, 924G, 924GZ, 928F, 928G, 938F, 938G, 938G II, 938H, 950F II, 950G, 950G II, 960F, 962G, 962G II, 966F II, 966G, 966G II, 9... |
| 1612162 KIT-TRUNNION BEARING |
| 902, 906, 908 |
| 1526795 KIT-ROD BEARING |
| 216, 228, 906 |
| 1731272 KIT-BEARING |
| 216, 236, 247, 248, 267, 287, 3034, 906 |
| 1526794 KIT-BEARING |
| 216, 228, 236, 247, 248, 267, 287, 3034, 906 |
| 1526793 KIT-BEARING |
| 216, 228, 236, 247, 248, 267, 287, 3034, 906 |

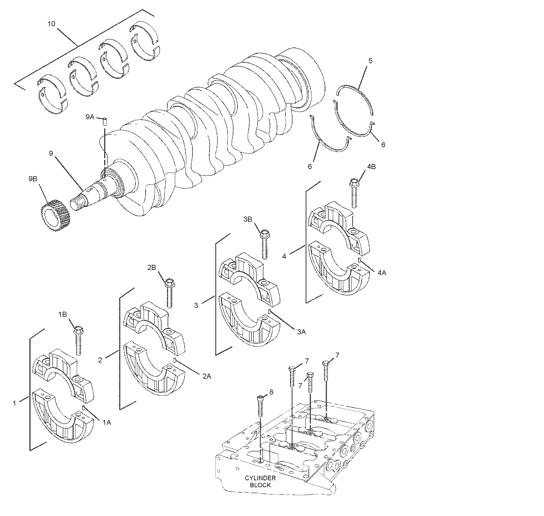

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 154-0181 | [1] | CAP AS-BEARING | |
| 1A. | 153-5402 | [2] | DOWEL | |
| 1B. | 154-0385 | [2] | BOLT | |
| 2 | 154-0386 | [1] | CAP AS-BEARING | |
| 2A. | 153-5402 | [2] | DOWEL | |
| 2B. | 154-0385 | [2] | BOLT | |
| 3 | 154-0388 | [1] | CAP AS-BEARING | |
| 3A. | 153-5402 | [2] | DOWEL | |
| 3B. | 154-0385 | [2] | BOLT | |
| 4 | 154-0389 | [1] | CAP AS-BEARING | |
| 4A. | 153-5402 | [2] | DOWEL | |
| 4B. | 154-0385 | [2] | BOLT | |
| 5 | 154-1230 | [1] | WASHER-THRUST | |
| 6 | 154-1231 | [2] | WASHER-THRUST | |
| 7 | 156-6971 | [3] | BOLT | |
| 8 | 183-1336 | [1] | BOLT | |
| 9 | 308-1852 | [1] | CRANKSHAFT AS | |
| 9A. | 153-5518 | [1] | KEY | |
| 9B. | 308-1853 | [1] | GEAR-CRANKSHAFT (62-TEETH) | |
| 10 | 154-1203 B | [1] | KIT-CRANKSHAFT BEARING (MAIN) | |
| 161-7163 AB | [1] | KIT-CRANKSHAFT BEARING (0.25-MM US) | ||
| 161-7164 AB | [1] | KIT-CRANKSHAFT BEARING (0.5-MM US) | ||
| A | NOT PART OF THIS GROUP | |||
| B | USE AS REQUIRED | |||
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
