31Y1-10160 HCE Seal Kit Hyundai Excavator Oil Cylinder Parts For R250LC-7 R250LC-3
- 31Y1-10160 HCE Seal Kit Hyundai Excavator Oil Cylinder Parts For R250LC-7 R250LC-3
- Specifiion
| Appliion | HYUNDAI Excavator |
| Name | Seal Kit |
| Parts No | 31Y1-10160 |
| Machine Model | R250LC3 R250LC7 R250LC7A |
| egory | bucket cylinder seal kit |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
3-SERIES CRAWLER EXCAVATOR R250LC3
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A Hyundai
- More other seal kit fit for DYUNDAI HCE machine
| 4890832 SEAL-OIL |
| 110D-7A, 110D-7E, 35D-9, 50D-9, 80D-9, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL730TM7A, HL740-7A, HL740-9, HL740-9A, HL740-F, HL740TM-7A, HL740TM-9, HL740TM-9A |
| 3933262 SEAL-OIL |
| 33HDLL, H70, H80, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3ATM, HL740-7, HL740TM-3A, HL740TM-7, HL757-7, HL757-7S, HL757TM7, HL760-7, HL770-7, HL770-7A, R140LC-7, R140LC9S, R140W7 |
| 21EM-45080 SEAL-OIL |
| 33HDLL, 42HDLL, HW140, HX140L, HX160L, HX180L, HX235L, R110-7, R110-7A, R125LCR-9A, R130LC3, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140W7, R140W7A, R140W9, R140W9A, R140W9S |
| XKAY-00055 SEAL-ROD |
| HL730-9S, HL730-9SB, HL740-9SB, HL757-9SB, HL757-9SM, HL760-9SB, HL770-9S, HL780-9S, HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L |
| XKAY-00067 SEAL-ROD |
| HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R110-7, R110-7A, R1200-9, R125LCR-9A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S |
| XKAY-00014 SEAL-DUST |
| HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R110-7, R110-7A, R1200-9, R125LCR-9A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S |
| XKAH-00916 SEAL-FLOATING |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S, RC215C7, RC215C7H |
| XKAQ-00219 SEAL-FLOATING |
| HX140L, HX160L, HX180L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R210LC7 |
| 31Y1-18250 SEAL KIT |
| R250LC7, R250LC7A, R290LC7, R290LC7H, R305LC7 |
| XJCK-00049 SEAL-FLOATING |
| R250LC7, R290LC7, R290LC9, R305LC7, R320LC7 |
| XKAQ-00173 SEAL-FLOATING |
| R250LC7, R250LC7A, R250LC9, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R300LC7, R300LC9S |

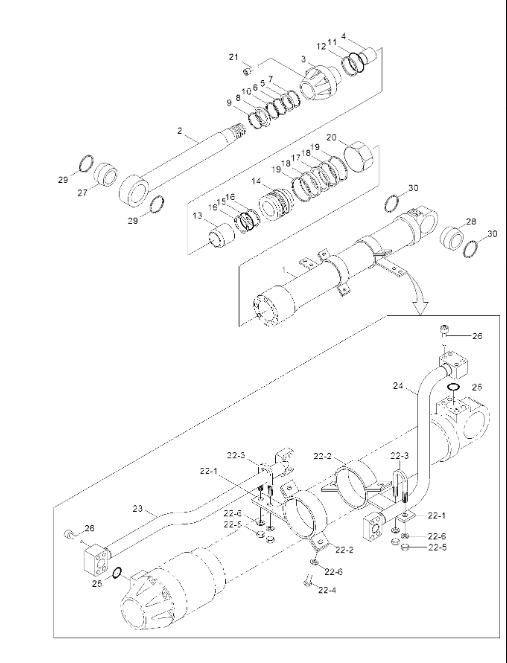

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31EN-60110 | [1] | BUCKET CYLINDER | |
| *-1. | 31EN-65010 | [1] | BUCKET CYL SUB ASSY | WITHOUT PIPE |
| 1 | 31Y1-10030 | [1] | TUBE ASSY | |
| 2 | 31Y1-10080 | [1] | ROD ASSY | |
| 3 | 31Y1-10100 | [1] | GLAND | |
| 4 | S732-090040 | [1] | BUSHING | |
| K5. | Y220-090011 | [1] | SEAL-ROD | |
| K6. | Y180-090020 | [1] | RING-BACK UP | |
| K7. | Y240-090011 | [1] | RING-BUFFER | |
| K8. | Y110-090011 | [1] | WIPER-DUST | |
| 9 | Y190-104000 | [1] | RING-SNAP | |
| K10. | Y320-090000 | [1] | RING-WEAR | |
| K11. | S631-125004 | [1] | O-RING | |
| K12. | S641-125003 | [1] | RING-BACK UP | |
| 13 | 31YC-23110 | [1] | RING-CUSHION | |
| 14 | 31Y1-10110 | [1] | PISTON | |
| K15. | S632-080004 | [1] | O-RING | |
| K16. | S642-080003 | [2] | RING-BACK UP | |
| K17. | Y420-135000 | [1] | SEAL-PISTON | |
| K18. | Y310-135100 | [2] | RING-WEAR | |
| K19. | Y440-135000 | [2] | RING-DUST | |
| 20 | 31YC-61160 | [1] | NUT-LOCK | |
| 21 | S109-220804 | [8] | BOLT-SOCKET | |
| 27 | 31YC-11140 | [1] | BUSHING-PIN | |
| 28 | 31YC-11150 | [1] | BUSHING-PIN | |
| 29 | Y000-080200 | [2] | SEAL-DUST | |
| 30 | Y000-090000 | [2] | SEAL-DUST | |
| 22 | 31Y1-10120 | [2] | BAND ASSY | |
| 22-1. | 31Y1-10130 | [2] | BAND SUB ASSY | |
| 22-2. | 31YC-31290 | [2] | BAND | |
| 22-3. | S071-023430 | [2] | U-BOLT | |
| 22-4. | S011-100352 | [4] | BOLT-HEX | |
| 22-5. | S201-101002 | [4] | NUT-HEX | |
| 22-6. | S411-100002 | [8] | WASHER-SPRING | |
| 23 | 31Y1-10140 | [1] | PIPE ASSY-R | |
| 24 | 31Y1-10150 | [1] | PIPE ASSY-B | |
| 25 | Y171-024004 | [2] | O-RING | |
| 26 | S107-100554 | [8] | BOLT-SOCKET | |
| K. | 31Y1-10160 | [1] | SEAL KIT |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
