705-56-36050 705-56-36051 R7055636051 Pump ASSY KOMATSU Spare Parts For WA320-6
- 705-56-36050 705-56-36051 R7055636051 Pump ASS'Y KOMATSU Spare Parts For WA320-6
- Specifiion
| Appliion | KOMATSU excavator |
| Name | Pump ASS'Y |
| Parts No | 705-56-36050 705-56-36051 |
| Machine Model | WA320 WA320L WA320PT WA320PZ |
| Category | KOMATSU Hydrauic pump |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Core details
| Function |
| Loader arm lifting and tilting (bucket control). |
| Transmission hydraulic supply (for smooth gear shifts and travel). |
| Auxiliary hydraulic functions (if equipped). |
| Design & Durability |
| Reinforced gear sets for high pressure and wear resistance. |
| Precision-machined housing (cast iron) to withstand vibration and thermal stress. |
| Integrated seals and bearings for leak-free operation and long service life. |
| Direct-fit mounting points and fluid ports for seamless installation, eliminating the need for modifications. |
- Compatible models
| Designed exclusively for Komatsu WA320 wheel loader variants, including: |
| WA320-5, WA320-5L, WA320PT-5L |
| WA320-6, WA320-6N, WA320PZ-6. |
| Always verify with your machine’s serial number for exact fitment. |
- More other pump ASS'Y fit for KOMATSU machine
| 419-18-31102 PUMP |
| FRONT, WA320, WA320PZ |
| 419-18-31103 PUMP,(SEE FIG. Y1610-01A0A) |
| FRONT, WA320, WA320PZ |
| 419-18-31101 PUMP, VARIABLE |
| WA250, WA320, WA320L |
| 423-947-1110 PUMP ASS'Y,MOTOR |
| 538, 542, 545, AIR, BATTERY, D37EX, D37PX, D39EX, D39PX, FRONT, JV100WA, JV100WP, JV130WH, WA100, WA1200, WA150, WA150L, WA150PZ, WA180, WA200, WA200L, WA200PT, WA200PTL, WA200PZ, WA250, WA250L, WA250... |
| 705-38-39000 PUMP ASS'Y,(SAR90) |
| FRONT, WA320, WA320L, WA320PT, WA320PZ |
| 705-56-36051 PUMP ASS'Y |
| FRONT, WA320, WA320PZ |
| 705-41-05690 PUMP ASS'Y,(SBR12) |
| BATTERY, FRONT, WA200, WA200PT, WA200PZ, WA250, WA250L, WA250PT, WA250PTL, WA250PZ, WA270, WA320, WA320L, WA320PT, WA320PZ |
| 6738-51-1120 PUMP, LUBRIING OIL |
| WA320 |
| 705-56-36030 PUMP ASS'Y,(SAR3-125+1) |
| WF650T |
| 234-60-65400 PUMP ASS'Y |
| GD705A |
| 708-3T-00161 PUMP ASS'Y,SEE FIG. Y1600-01A0 |
| PC70 |
| DK101060-2480 PUMP ASS'Y |
| S6D105 |

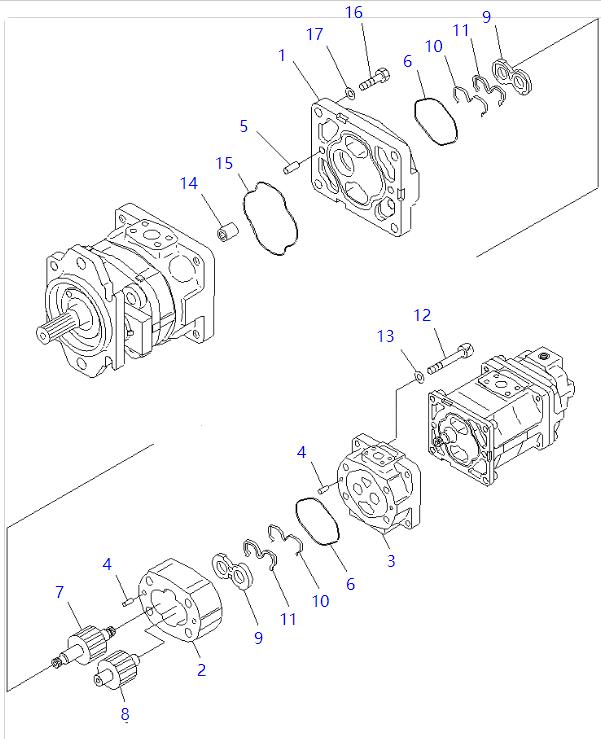

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 705-56-36051 | [1] | PUMP ASS'Y,(SAR90+32+SB18+12) Komatsu | 41.501 kg. | |
| ["SN: 70268-UP"] analogs:["7055636050"] |$0. | ||||
| 705-56-36050 | [1] | PUMP ASS'Y,(SAR90+32+SB18+12) Komatsu | 41.501 kg. | |
| ["SN: 70001-70267"] analogs:["7055636051"] |$1. | ||||
| 705-38-30060 | [1] | PUMP ASS'Y,(SAR32) Komatsu | 8.4 kg. | |
| ["SN: 70001-UP"] |$3. | ||||
| 1 | 705-19-02551 | [1] | BRACKET Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 1 | 705-17-02353 | [2] | BUSHING,PLANE Komatsu | 0.025 kg. |
| ["SN: 70001-UP"] | ||||
| 2 | 705-17-30012 | [1] | ,GEAR Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 3 | 705-17-02221 | [1] | CARRIER ASS'Y Komatsu | 2.68 kg. |
| ["SN: 70001-UP"] | ||||
| 4 | 04020-01024 | [4] | PIN,DOWEL Komatsu | 0.015 kg. |
| ["SN: 70001-UP"] analogs:["PZF890001197"] | ||||
| 5 | 04020-01228 | [2] | PIN,DOWEL Komatsu | 0.026 kg. |
| ["SN: 70001-UP"] analogs:["21T3016190"] | ||||
| 6 | 705-17-02360 | [2] | O-RING Komatsu | 0.002 kg. |
| ["SN: 70001-UP"] | ||||
| 7 | 705-19-30760 | [1] | GEAR,DRIVE Komatsu China | |
| ["SN: 70001-UP"] | ||||
| 8 | 705-17-30512 | [1] | GEAR,DRIVEN Komatsu China | |
| ["SN: 70001-UP"] analogs:["7051730511"] | ||||
| 9 | 705-17-02612 | [2] | PLATE,SIDE Komatsu | 0.11 kg. |
| ["SN: 70001-UP"] analogs:["3EC6015270"] | ||||
| 10 | 705-17-02430 | [2] | RING,BACK-UP Komatsu | 0.002 kg. |
| ["SN: 70001-UP"] | ||||
| 11 | 705-17-02460 | [2] | RING,RING Komatsu | 0.002 kg. |
| ["SN: 70001-UP"] | ||||
| 12 | 01253-61200 | [4] | BOLT Komatsu China | |
| ["SN: 70001-UP"] analogs:["7051702270", "7051702770"] | ||||
| 13 | 01643-51232 | [4] | WASHER Komatsu | 0.024 kg. |
| ["SN: 70001-UP"] | ||||
| 14. | 705-17-02330 | [1] | COUPLING ASS'Y Komatsu | 0.093 kg. |
| ["SN: 70001-UP"] | ||||
| 15. | 705-17-03381 | [1] | O-RING Komatsu China | 0.05 kg. |
| ["SN: 70001-UP"] analogs:["7051703380"] | ||||
| 16. | 01252-61450 | [4] | BOLT Komatsu | 0.087 kg. |
| ["SN: 70001-UP"] analogs:["7051703370"] | ||||
| 17. | 705-17-04980 | [4] | WASHER Komatsu | 0.008 kg. |
| ["SN: 70001-UP"] |
