SA7223-00810 KDRDE5K-20/40C04 Solenoid Valve Excavator Hydraulic Pump Fit For EC330 EC360
- SA7223-00810 KDRDE5K-20/40C04 Solenoid Valve Excavator Hydraulic Pump Fit For EC330 EC360
- Specifiion
| Appliion | V O L V O excavator |
| Name | solenoid valve |
| Parts No | SA7223-00810 KDRDE5K-20/40C04 |
| Machine Model | EC330 EC360 |
| egory | Excavator Hydraulic Pump |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATOR EC330B EC360B EC330C EC360C EC700CHR V o l v o
- More other solenoid valve parts fit for V O L V O machine
| VOE8170995 Valve cotter |
| A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A45G, A45G FS, A60H, EC700B, EC700BHR, EC700C, EC700CHR, EC750D, EC750E, EC950E, L350F |
| VOE20904074 Valve guide |
| Volvo.Heavy |
| VOE14552975 Valve |
| EC330B, EC330C, EC340D, EC360, EC360B, EC360C, EC360CHR, EC380D, EC380DHR |
| VOE20740804 Valve seat |
| A35F, A35F FS, EC340D, EC380D, EC380DHR, EC480D, EC480DHR, L150G, L180G, L180G HL, L220G, L250G, PL4809D |
| VOE20530103 Valve seat |
| A35F, A35F FS, EC340D, EC380D, EC380DHR, EC480D, EC480DHR, L150G, L180G, L180G HL, L220G, L250G, PL4809D |
| VOE20551396 Valve spring washer |
| A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A45G, A45G FS, A60H, EC700B, EC700BHR, EC700C, EC700CHR, EC750D, L350F |
| VOE21476570 Valve spring |
| A40E, A40E FS, A40F, A40F FS, EC700B, EC700BHR, EC700C, EC700CHR, L350F |
| VOE14597879 Valve block |
| EC290B, EC300D, EC360C, PL3005D |
| VOE21405773 Valve seat |
| A35F/G, A35F/G FS, A35G, A40G, EC350E, EC380E, EC380EHR, EC480E, EC480EHR, L150H, L180H, L180H HL, L220H, L250H, PL4809E |
| VOE4804548 Valve seat |
| 4200B, 4300, 4300B, 616B/646, 6300, EL70 VOLVO BM, L50, L70 |
| VOE14683774 Valve |
| EC380EHR, EC480EHR |
| VOE6211961 Valve |
| 4600 |

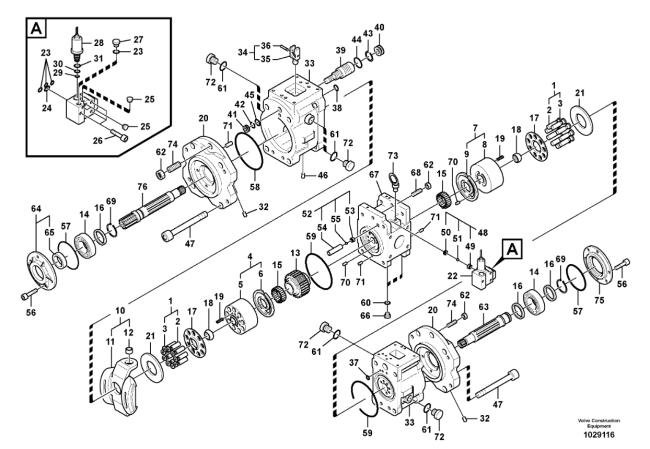

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14566480 | [1] | Pump | ||
| 1 | SA7223-00140 | [2] | Piston | |
| 2 | SA7223-00150 | [9] | Piston | |
| 3 | SA7223-00160 | [9] | Pad | |
| 4 | VOE14563795 | [1] | Cylinder | |
| 5 | SA7223-00090 | [1] | Block | |
| 6 | SA7223-00360 | [1] | Plate | |
| 7 | VOE14563796 | [1] | Cylinder | |
| 8 | SA7223-00090 | [1] | Block | |
| 9 | SA7223-00370 | [1] | Plate | |
| 10 | VOE14502011 | [2] | Plate | |
| 11 | SA7223-00220 | [1] | Plate | |
| 12 | SA7223-00240 | [1] | Bushing | |
| 13 | VOE14572694 | [1] | Shaft coupling | |
| 14 | SA7241-00421 | [2] | Roller bearing | |
| 15 | VOE14511981 | [2] | Bearing | |
| 16 | VOE14550444 | [3] | Spacer | |
| 17 | SA7242-10210 | [2] | Plate | |
| 18 | VOE14510070 | [2] | Bushing | |
| 19 | SA7223-00180 | [18] | Spring | |
| 20 | SA7223-00260 | [2] | Support | |
| 21 | SA7223-00210 | [2] | Plate | |
| 22 | VOE14532653 | [1] | Valve | |
| 23 | VOE14533606 | [4] | O-ring | |
| 24 | VOE14533608 | [1] | O-ring | |
| 25 | VOE14560637 | [3] | Plug | |
| 26 | SA9016-20612 | [3] | Bolt | |
| 27 | VOE14883837 | [1] | Plug | |
| 28 | SA7223-00810 | [1] | Valve | |
| 29 | VOE990738 | [1] | O-ring | |
| 30 | VOE990546 | [1] | O-ring | |
| 31 | VOE990547 | [1] | O-ring | |
| 32 | VOE14560637 | [15] | Plug | |
| 33 | VOE14549799 | [2] | Casing | |
| 34 | VOE14502012 | [2] | Pin | |
| 35 | SA7223-00400 | [1] | Pin | |
| 36 | SA7223-00570 | [1] | Pin | |
| 37 | VOE14533604 | [8] | O-ring | |
| 38 | VOE14533606 | [1] | O-ring | |
| 39 | SA7223-00410 | [1] | Piston | |
| 40 | SA7223-00420 | [1] | Stop | |
| 41 | SA7223-00430 | [1] | Stop | |
| 42 | VOE14692341 | [1] | Ring | |
| 43 | SA7223-00650 | [1] | Ring | |
| 44 | SA7223-00690 | [1] | O-ring | |
| 45 | SA7223-00700 | [1] | O-ring | |
| 46 | VOE14560637 | [6] | Plug | |
| 47 | SA7223-00390 | [8] | Hex. socket screw | |
| 48 | VOE14549801 | [2] | Non-return valve | |
| 49 | VOE14550471 | [1] | Seat | |
| 50 | VOE14550472 | [1] | Stopper | |
| 51 | VOE14880998 | [1] | Ball | |
| 52 | VOE14549802 | [2] | Non-return valve | |
| 53 | VOE14550471 | [1] | Seat | |
| 54 | VOE14550473 | [1] | Stopper | |
| 55 | VOE14880998 | [1] | Ball | |
| 56 | VOE967630 | [8] | Hex. socket screw | |
| 57 | VOE14533617 | [0002] | O-ring | |
| 58 | VOE14533034 | [2] | O-ring | |
| 59 | VOE14533035 | [2] | O-ring | |
| 60 | VOE14533606 | [2] | O-ring | |
| 61 | VOE14533612 | [4] | O-ring | |
| 62 | VOE979022 | [4] | Hexagon nut | |
| 63 | VOE14520039 | [1] | Shaft | |
| 64 | VOE14550865 | [1] | Cover | |
| VOE14551796 | [1] | Cover | ||
| 65 | VOE14600699 | [1] | Seal | |
| 66 | VOE14883837 | [2] | Plug | |
| 67 | SA7223-00310 | [1] | Block | |
| 68 | SA7223-00680 | [2] | Set screw | |
| 69 | SA9541-01045 | [2] | Retaining ring | |
| 70 | VOE14551525 | [2] | Pin | |
| 71 | SA7223-00660 | [4] | Spring pin | |
| 72 | SA9415-11051 | [4] | Plug | |
| 73 | VOE14880555 | [2] | Eye bolt | |
| 74 | SA7223-00670 | [2] | Set screw | |
| 75 | VOE14519957 | [1] | Cover | |
| 76 | VOE14511977 | [1] | Shaft | |
| 100 | VOE14554798 | [1] | Seal | |
| 200 | VOE14596393 | [1] | Seal | Reducing valve |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
