21ER-10024 21ER10024 Harness-HYD HYUNDAI Excavator Electric Parts For R200W3
- 21ER-10024 21ER10024 Harness-HYD HYUNDAI Excavator Electric Parts Fit For R200W3
- Specifiion
| egory | Excavator Electric Parts |
| Name | HARNESS-HYD |
| Parts No | 21ER-10024 21ER10024 |
| Machine Model | R200W3 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
3 SERIES WHEEL EXCAVATOR R200W3 Hyundai
- More other harness-HYD fit for HYUNDAI machine
| 21EK-20200 HARNESS-REAR COMBI |
| HL720-3, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3, HL730TM3C, HL730TM7, HL730TM7A, HL740-3, HL740-7, HL740-7A, HL740-7S |
| 21EA-00190 HARNESS-EXT,START RY |
| H80, HL730-7, HL730TM7, HL740-7, HL740TM-7, HL757-7, HL757TM7, HL760-7, HL770-7, HX330L, R1200-9, R130W3, R140LC-7, R140W7, R170W3, R180LC3, R200NLC3, R200W3, R300LC9S, R305LC7, R320LC7, R320LC7A |
| 21EK-20250 HARNESS-N/PLATE LAMP |
| HL720-3, HL720-3C, HL7303, HL7303C, HL730TM3, HL730TM3C, HL740-3, HL740-3ATM, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, HL760-3, HL760-3ATM, HL770, HL770-3, HL770-3ATM, HL780-3, HL7803A |
| AM83303700-2 HARNESS-JUMP WIRE |
| 33HDLL, R130W3, R160LC3, R170W3, R180LC3, R200NLC3, R200W3, R210LC3, R210LC3H, R210LC3LL, R250LC3, R290LC3, R290LC3H, R320LC3, R360LC3, R360LC3H, R450LC3A |
| 21EA-60731 HARNESS-WIRE SWITCH |
| R130W3, R170W3, R200W3, R95W3 |
| 21EK-50010 HARNESS(1)-CAB |
| 33HDLL, 42HDLL, R130LC3, R170W3, R180LC3, R200NLC3, R200W3, R210LC3, R210LC3H, R210LC3LL, R290LC3, R290LC3H, R290LC3LL, R320LC3, R360LC3, R360LC3H, R450LC3, R450LC3A |
| 24L3-10420 HARNESS-REAR COMBI |
| HL740-3, HL740TM-3, HL750-3, HL750TM3, HL760-3, HL760-3ATM, HL770-3, HL770-3ATM, R200W3 |
| 21ER-10012 HARNESS-FRAME |
| R200W3 |
| 21ER-10013 HARNESS-FRAME |
| R200W3 |
| 21ER-10014 HARNESS-FRAME |
| R200W3 |
| 21EM-30190 HARNESS-BOOM |
| R200W3, R210LC3H, R250LC3, R290LC3H |
| 21ER-10002 HARNESS-MAIN |
| R200W3 |
| 21ER-10023 HARNESS-HYD |
| R200W3 |
| 21ER-10022 HARNESS-HYD |
| R200W3 |

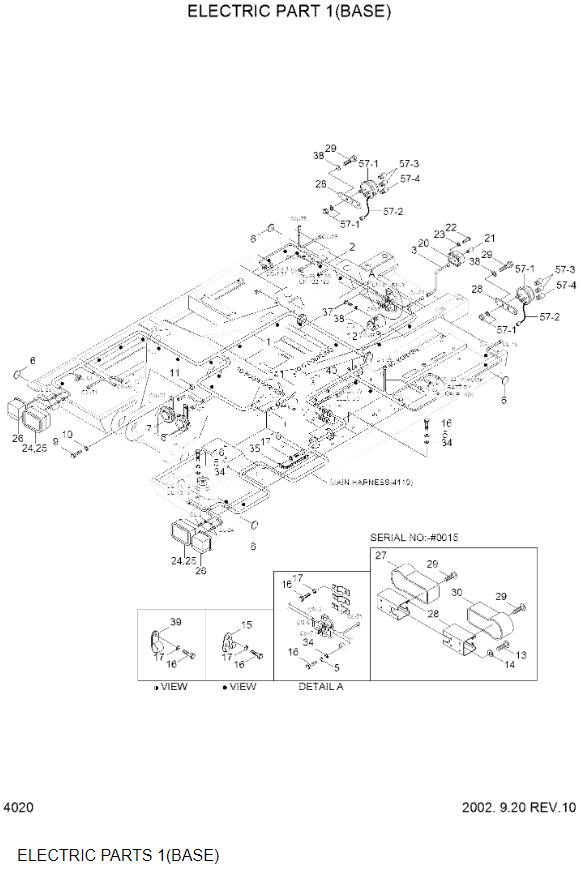

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21ER-10012 | [1] | HARNESS-FRAME | |
| 1 | 21ER-10013 | [1] | HARNESS-FRAME | |
| 1 | 21ER-10014 | [1] | HARNESS-FRAME | |
| 1 | 21ER-10015 | [1] | HARNESS-FRAME | |
| 1 | 21ER-10016 | [1] | HARNESS-FRAME | |
| 1-1. | 21ER-20010 | [1] | COVER & DECAL-F/BOX | NOT SHOWN |
| 2 | 21ER-10022 | [1] | HARNESS-HYD | |
| 2 | 21ER-10023 | [1] | HARNESS-HYD | |
| 2 | 21ER-10024 | [1] | HARNESS-HYD | |
| 3 | 21EK-20250 | [1] | HARNESS-N/PLATE LAMP | |
| 3 | 21N4-11040 | [1] | HARNESS-EXT | |
| 5 | S403-102006 | [4] | WASHER-PLAIN | |
| 6 | 21EK-10150 | [4] | REFLECTOR-SIDE | |
| 7 | 21EA-60521 | [1] | HORN-LOW | |
| 8 | 21EA-60531 | [1] | HORN-HIGH | |
| 9 | S015-080166 | [2] | BOLT-HEX | |
| 10 | S403-082006 | [2] | WASHER-PLAIN | |
| 11 | S205-081006 | [2] | NUT-HEX | |
| 12 | 21E4-2003 | [1] | BUZZER-TRAVEL ALARM | |
| 13 | S161-050166 | [8] | SCREW | |
| 14 | S403-052006 | [8] | WASHER-PLAIN | |
| 15 | 21E9-00170 | [29] | CLIP-HARNESS | |
| 16 | S017-100166 | [31] | BOLT-HEX | |
| 17 | S403-102006 | [31] | WASHER-PLAIN | |
| 20 | 21EK-10160 | [1] | LAMP-NUMBER PLATE | |
| 21 | 21EK-10260 | [1] | BULB | |
| 22 | S161-040166 | [2] | SCREW | |
| 23 | S403-042006 | [2] | WASHER-PLAIN | |
| 24 | 21EK-10120 | [2] | LAMP-HEAD | |
| 25 | 21EK-10130 | [2] | BULB | |
| 26 | 21EK-10350 | [2] | LAMP-FLASHER POSITION | |
| 26-1. | 21EK-10290 | [1] | BULB | NOT SHOWN |
| 26-2. | 21EK-10280 | [1] | BULB | NOT SHOWN |
| 27 | 21EA-30460 | [1] | LAMP ASSY-COMB,RR,RH | |
| 27-1. | S861-172100 | [2] | BULB(21W) | NOT SHOWN |
| 27-2. | S863-172105 | [1] | BULB(21/5W) | NOT SHOWN |
| 28 | 21EA-30380 | [2] | BRACKET-COMBI LAMP | |
| 28 | 21EK-50060 | [2] | BRACKET-COMBI LAMP | |
| 29 | S161-050252 | [8] | SCREW | |
| 29 | S015-060202 | [4] | BOLT-HEX | |
| 30 | 21EA-30450 | [1] | LAMP ASSY-COMB,RR,LH | |
| 30-1. | S861-172100 | [2] | BULB(21W) | NOT SHOWN |
| 30-2. | S863-172105 | [1] | BULB(21/5W) | NOT SHOWN |
| 34 | S431-100002 | [4] | WASHER-INTERNAL T/LOCK | |
| 35 | 24L1-30720 | [1] | STRAP-EARTH | |
| 37 | S015-060166 | [2] | BOLT-HEX | |
| 38 | S411-060006 | [2] | WASHER-SPRING | |
| 38 | S411-060006 | [6] | WASHER-SPRING | |
| 39 | S543-260002 | [2] | CLAMP-TUBE | |
| 40 | 21ER-10050 | [1] | HARNESS-EXT | 2PCS BOOM |
| 41 | 21E9-20200 | [1] | HARNESS-EXT | Q/COUPLING |
| 57 | 21EK-10410 | [2] | LAMP-TAIL STOP FLASHER | |
| 57 | 24L3-10410 | [2] | LAMP-TAIL STOP FLASHER | |
| 57-1. | 21EK-10180 | [1] | LAMP-TAIL STOP FLASHER | |
| 57-2. | 21EK-20200 | [1] | HARNESS-REAR COMBI | |
| 57-2. | 24L3-10420 | [1] | HARNESS-REAR COMBI | |
| 57-3. | 21EK-10290 | [2] | BULB | |
| 57-4. | 21EK-10270 | [1] | BULB(5W) |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
