22U-03-22113 22U-03-22111 Water Tank Radiator KOMATSU Excavator Spare Parts For PC228US-3
- 22U-03-22113 22U-03-22111 Water Tank Radiator KOMATSU Excavator Spare Parts For PC228US-3
- Specifiion
| Appliion | Excavator |
| Name | Water Tank Radiator |
| Parts No | 22U-03-22111 22U-03-22112 22U-03-22113 |
| Machine Model | PC228 PC228US |
| egory | Excavator cooling parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
| 1.It circulates coolant (water + antifreeze) to absorb extreme heat generated by the engine during operation. |
| 2.The heated coolant flows through the radiator core, where it is rapidly cooled by airflow (assisted by a fan). |
| 3.Cooled coolant is recirculated back to the engine, maintaining optimal operating temperature and preventing engine damage, power loss, or premature failure. |
- Compatible models
EXCAVATORS PC228 PC228US Komatsu
- More other radiator parts fit for KOMATSU machine
| 415-Z92-1112 RADIATOR |
| WR8 |
| 42A-03-21112 RADIATOR |
| WA40, WA50 |
| 567-03-71100 RADIATOR ASS'Y |
| HD255 |
| M721165208020 RADIATOR ASS'Y,(TROPICAL SPEC.) |
| EC260Z |
| 1250 271 H92 RADIATOR ASSY. - G & O |
| KOMATSU |
| 1248 995 H91 RADIATOR ASSEMBLY |
| KOMATSU |
| 418-03-31112 RADIATOR |
| WA200, WA200L, WA200PT, WA200PTL, WA250, WA250L, WA250PT, WA250PTL, WA270 |
| 567-03-61111 RADIATOR |
| HD200D |
| 1303 525 H91 RADIATOR ASSEMBLY |
| KOMATSU |
| 23A-03-11401 RADIATOR ASS'Y |
| GD525A |
| 385-10233691 RADIATOR ASS'Y |
| 510 |
| 427-03-21501 RADIATOR ASS'Y |
| WA900, WD900 |

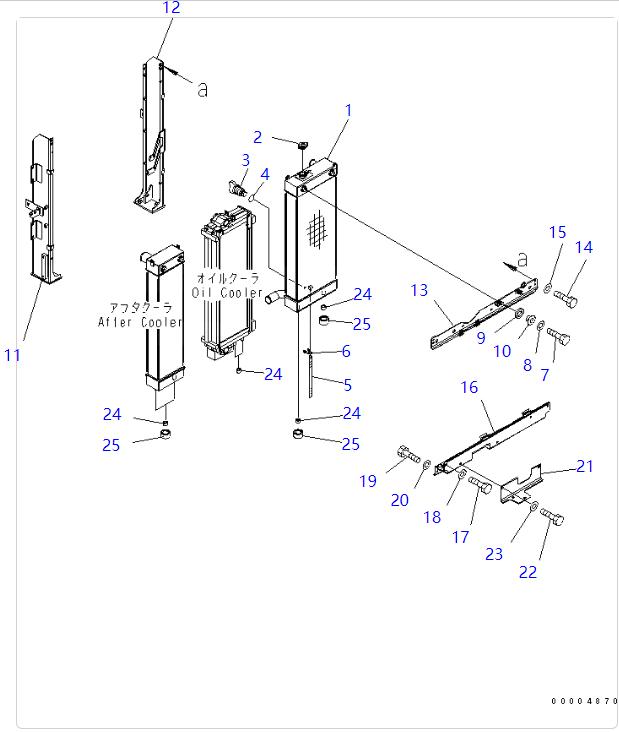

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 22U-03-22113 | [1] | RADIATOR CORE A. Komatsu | 13.7 kg. |
| ["SN: 31181-UP"] analogs:["22U0322111", "22U0322112"] | ||||
| 1 | 22U-03-22112 | [1] | CORE ASS'Y Komatsu | 13.7 kg. |
| ["SN: 30742-31180"] analogs:["22U0322111", "22U0322113"] | ||||
| 1 | 22U-03-22111 | [1] | CORE ASS'Y Komatsu | 13.7 kg. |
| ["SN: 30001-30741"] analogs:["22U0322112", "22U0322113"] | ||||
| 2 | 20Y-03-22110 | [1] | CAP Komatsu OEM | 0.25 kg. |
| ["SN: 30001-UP"] | ||||
| 3 | 205-03-62660 | [1] | PLUG Komatsu | 0.01 kg. |
| ["SN: 30001-UP"] | ||||
| 4. | 07000-11007 | [1] | O-RING Komatsu | 0.001 kg. |
| ["SN: 30001-UP"] analogs:["YM24311000070", "0700001007"] | ||||
| 5 | 203-03-41410 | [1] | HOSE Komatsu | 0.03 kg. |
| ["SN: 30001-UP"] | ||||
| 6 | 20Y-03-11330 | [1] | CLIP Komatsu | 0.01 kg. |
| ["SN: 30001-UP"] | ||||
| 7 | 01010-81030 | [2] | BOLT Komatsu OEM | 0.03 kg. |
| ["SN: 30001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 8 | 01643-31032 | [2] | WASHER Komatsu | 0.054 kg. |
| ["SN: 30001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 9 | 22U-03-22860 | [2] | CUSHION Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 10 | 6738-61-4952 | [2] | COLLAR Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 11 | 22U-03-22150 | [1] | FRAME Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 12 | 22U-03-22160 | [1] | FRAME Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 13 | 22U-03-22172 | [1] | BRACKET Komatsu China | |
| ["SN: 31181-UP"] | ||||
| 13 | 22U-03-22171 | [1] | BRACKET Komatsu China | |
| ["SN: 30001-31180"] | ||||
| 14 | 01010-81025 | [4] | BOLT Komatsu | 0.36 kg. |
| ["SN: 30001-UP"] analogs:["0101051025", "0101651025", "801015109"] | ||||
| 16 | 22U-03-22181 | [1] | BRACKET Komatsu China | |
| ["SN: 31181-UP"] | ||||
| 16 | 22U-03-22180 | [1] | BRACKET Komatsu China | |
| ["SN: 30001-31180"] | ||||
| 17 | 01010-81020 | [2] | BOLT Komatsu | 0.161 kg. |
| ["SN: 30001-31180"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 21 | 22U-03-22370 | [1] | BRACKET Komatsu China | |
| ["SN: 30001-UP"] | ||||
| 22 | 01010-81225 | [2] | BOLT Komatsu | 0.074 kg. |
| ["SN: 30001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 23 | 01643-31232 | [2] | WASHER Komatsu | 0.027 kg. |
| ["SN: 30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 24 | 22B-03-12590 | [6] | CUSHION Komatsu | 0.04 kg. |
| ["SN: 30001-UP"] | ||||
| 25 | 22U-03-22870 | [4] | CUSHION Komatsu China | |
| ["SN: 30001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
