1255773 125-5773 Shutoff Solenoid Fit Track Engine parts 3306 3306C 3406B 3406C
-
1255773 125-5773 Shutoff Solenoid Fit Track Engine parts 3306 3306C 3406B 3406C
-
Specifiion
| Appliion | C A T excavators engine parts |
| Parts Name | Shutoff solenoid |
| Parts No | 1255773 125-5773 |
| Model |
3306 3306C 3406B 3406C |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
GEN SET ENGINE 3304 3306 3306B
INDUSTRIAL ENGINE 3204 3304 3306 3306B 3406B 3406C
MARINE ENGINE 3304 3304B 3306 3306B 3406B
PUMPER HT400
TRUCK ENGINE 3306 3306C 3406B 3406C
- More other solenoid applicable for C A T equipments
| 1106464 SOLENOID |
| 3304, 3304B, 3306, 3306B, 3306C, 3406B, 3406C |
| 1106465 SOLENOID |
| 3304, 3304B, 3306, 3306B, 3406B, 3406C, 375, 375 L, 5080, 621F, 623E, 623F, 627B, 627F, 627G, 637G, 814B, 814F, 815B, 815F, 816B, 816F, 824G, 825G, 826C, 826G, 950B, 966F, 966F II, 966G, 972G, 980C, 9... |
| 3182082 SOLENOID AS-STARTING MOTOR |
| 1090, 1190, 120M, 1290T, 140G, 140M, 14H, 14M, 160M, 1673C, 16H NA, 16M, 2290, 2390, 2391, 2491, 24H, 24M, 2590, 3176, 3176C, 3196, 3208, 3304, 3306, 330C, 330C L, 330D, 330D L, 336D, 336D L, 3406, 34... |
| 3T0868 SOLENOID AS |
| 12G, 140G, 1673C, 215, 235, 245, 3208, 3304, 3306, 3306B, 615C, 627E, 637E, 815B, 920, 943, 966F, 980C, CB-534, CS-643, D4HTSK II, D5H, D6D, D6H, G936, IT28B, PS-500 |
| 9X9511 SOLENOID AS |
| 120G, 12G, 12H, 12H ES, 12H NA, 130G, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160G, 160H, 160H ES, 160H NA, 163H NA, 1673C, 16G, 227, 3116, 3126, 3126B, 3176B, 3176C, 3196, 3208, 320B, 322B, ... |
| 9X8236 SOLENOID AS |
| 1673C, 3116, 3208, 3304, 3306, 3306B, CB-614, CS-551, G3304, G3306 |
| 1938570 SOLENOID AS-STARTING MOTOR |
| 12H, 12H ES, 12H NA, 140H, 140H ES, 140H NA, 143H, 14H NA, 160H, 160H ES, 160H NA, 163H NA, 1673C, 3116, 3126, 3126B, 3176C, 3196, 3208, 322B L, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 325B,... |
| 4N3890 SOLENOID |
| 3176C, 3196, 3304, 3306, 3406, 3406B, 3406C, 3406E, 3408, 3408C, 3412, 3412C, 3456, 637D, C-10, C-12, C-15, C-16, C15, C18, C4.4, CX31-C15I, CX35-P800, D6C, TH35-C15I |
| 8C9986 SOLENOID GP-SHUTOFF |
| 3304, 3306B, 3406B |
| 3383453 SOLENOID AS-STARTING MOTOR |
| 1190, 1190T, 120M, 120M 2, 1290T, 12M 2, 12M 3, 12M 3 AWD, 1390, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16H NA, 16M, 2290, 2390, 2391, 2491, 24H, 24M, 2590, 2864C, 3126B, 3... |
| 7T0258 SOLENOID AS |
| 120G, 140G, 1673C, 215B, 245, 3116, 3208, 330 L, 3304, 3304B, 3306, 375, 5080, 953, 980C, 980F, CB-534, D4HTSK II, D5E, D5H, D6E SR, D7H, G3306, PS-500 |
| 6T4121 SOLENOID |
| 3406B |
| 1106464 SOLENOID |
| 3304, 3304B, 3306, 3306B, 3306C, 3406B, 3406C |
| 1255771 SOLENOID AS |
| 3114, 3116, 3126 |

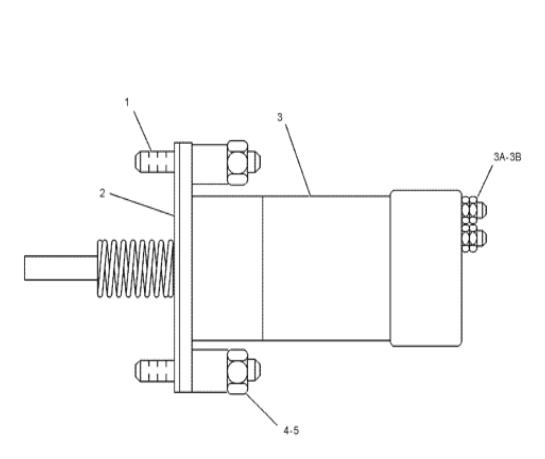

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 7C-5544 | [2] | STUD | |
| 2 | 6I-2002 | [1] | GASKET | |
| 3 | 125-5773 | [1] | SOLENOID GP-SHUTOFF | |
| 3A. | 6V-8377 | [2] | NUT (8-32-THD) | |
| 3B. | 9B-7233 | [2] | LOCKWASHER | |
| 4 | 5P-0537 | [2] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 5 | 1B-4330 | [2] | NUT (1/4-20-THD) |
-
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
