3095711 309-5711 Monitor Fit Excavator 312E 312E L 314E CR 314E LCR 316E L 318E L 320E
-
3095711 309-5711 Monitor Fit Excavator 312E 312E L 314E CR 314E LCR 316E L 318E L 320E
-
Specifiion
| Appliion | C A T excavators monitor |
| Parts Name | Monitor |
| Parts No | 3095711 309-5711 |
| Model |
312E 312E L 314E CR 314E LCR 316E L 318E L 320E 320E L 320E LN 320E LRR 320E RR 323E L 324E 324E L 324E LN 329E 329E L 329E LN 336E 336E H 336E L 336E LH 336E LN 336F L 349E 349E L 349E L VG 349F L 374F L 390F L 568 FM LL |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
EXCAVATOR 312E 312E L 314E CR 314E LCR 316E L 318E L 320E 320E L 320E LN 320E LRR
320E RR 323E L 324E 324E L 324E LN 329E 329E L 329E LN 336E 336E H 336E L 336E LH 336E LN
336F L 349E 349E L 349E L VG 349F L 374F L 390F L 568 FM LL
MOBILE HYD POWER UNIT 329E 336E 336E HVG 349E 349E L HVG
- More other monitor applicable for C A T equipments
| 3095874 MONITOR & MTG GP-OPERATOR |
| 312E, 312E L, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323E L, 324E, 324E L, 324E LN, 329E, 329E L, 329E LN, 336E, 336E HVG, 336E L, 336E LH, 336E LN, 349E, 349E L, 349E L HVG, 349E L... |
| 3863447 MONITOR GP-OPERATOR |
| 320E L, 336E L, 349E L, 349E L VG, 568 FM LL |
| 4334526 MONITOR GP-OPERATOR |
| 312E, 312E L, 314E CR, 314E LCR, 316E L, 318E L, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D2 L, 323E L, 324E, 324E L, 324E LN, 329E, 329E L, 329E LN, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E ... |
| 4508415 MONITOR & MTG GP-OPERATOR |
| 336F L, 349F L, 374F L, 390F L |
| 3668785 MONITOR GP-OPERATOR |
| 329E, 329E L, 329E LN, 336E, 336E HVG, 336E LN, 349E, 349E L VG, 568 FM LL |
| 3386918 MONITOR GP-OPERATOR |
| 349E L, 568 FM LL |
| 3668729 MONITOR GP-OPERATOR |
| 568 FM LL |
| 3567763 MONITOR & MTG GP-OPERATOR |
| 314E CR, 314E LCR |
| 4562194 MONITOR GP-OPERATOR |
| 374F L |
| 4447834 MONITOR GP-OPERATOR |
| 336F L, 349F L, 390F L |
| 4420211 MONITOR & MTG GP-OPERATOR |
| 336E H |
| 3470570 MONITOR |
| 325B L, 325C, 325D MH, 330B L, 330C MH, 330D MH, 345B, 345B II MH, 345C MH, 365B, 365B II, 365C L MH, 375 L, 385C L MH, M318D MH, M322D MH, M325B, M325C MH, M325D L MH, M325D MH, M330D, W330B, W345B I... |
| 2918372 MONITOR |
| 325B L, 325C, 325D MH, 330B L, 330C MH, 330D MH, 345B, 345B II MH, 345C MH, 365B, 365B II, 365C L MH, 375 L, 385C L MH, M318D MH, M322D MH, M325B, M325C MH, M325D L MH, M325D MH, M330D, MH3037, MH3049... |
| 3750591 MONITOR GP |
| M313D, M315D, M316D, M318D, M318D MH, M322D, M322D MH |

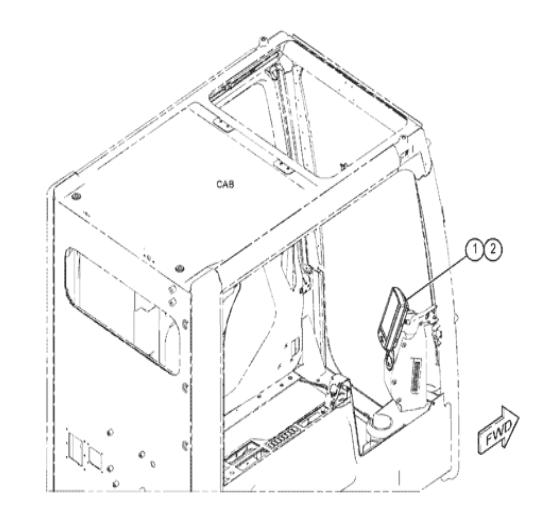

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 309-5711 | [1] | MONITOR GP-OPERATOR | |
| 9X-3401 | [18] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| -OR- | ||||
| 126-1767 | [18] | PIN-CONNECTOR (14-GA TO 16-GA) | ||
| 230-4010 | [1] | RECEPTACLE AS-CONNECTOR (12-PIN) | ||
| 243-4508 | [1] | RECEPTACLE AS-CONNECTOR (6-PIN) | ||
| 2 | 503-8026 Y | [1] | ELECTRONICS GP-MONITOR | |
| Y | SEPARATE ILLUSTRATION | |||
-
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
