569-22-72520 4T-C1R-1301PX1 Bearing KOMATSU Dump Truck Spare Parts For HD605-7E0
- 569-22-72520 4T-C1R-1301PX1 Bearing KOMATSU Dump Truck Spare Parts For HD605-7E0
- Specifiion
| Name | Bearing |
| Parts No | 569-22-72520 5692272520 4T-C1R-1301PX1 |
| Machine Model | HD465 HD605 |
| egory |
Rear Axle, Final Drive L.H. |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
- More other bearing parts fit for KOMATSU machine
| 20Y-26-22331 BEARING |
| HB205, HB215, PC200, PC210, PC228, PC228US |
| 6110-63-1380 BEARING |
| 4D120, S4D120 |
| 20Y-26-22342 BEARING |
| HB205, HB215, PC200, PC210, PC228, PC228US |
| 426-13-49121 BEARING |
| WA600, WD600 |
| 234-23-12560 BEARING |
| GD705R |

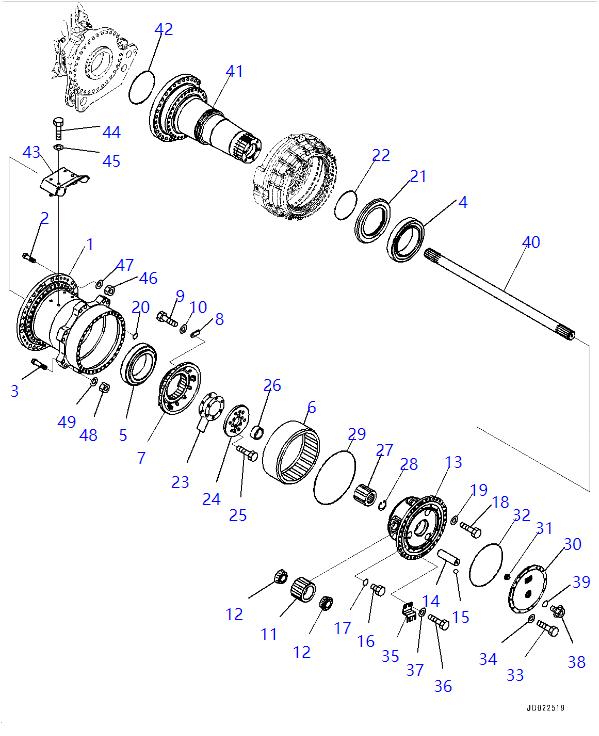

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 569-88-80001 | [1] | Axle Assembly Komatsu China | ||
| ["SN: 10732-10811"] |$0. | ||||
| 569-88-80301 | [1] | Brake Assembly,L.H. Komatsu China | ||
| ["SN: 10732-10811"] analogs:["R5698880301"] |$1. | ||||
| 1 | 569-22-72711 | [1] | Hub Komatsu | 438 kg. |
| ["SN: 10732-10811"] | ||||
| 2 | 569-22-72860 | [14] | Bolt Komatsu | 1.15 kg. |
| ["SN: 10732-10811"] | ||||
| 3 | 569-22-72850 | [14] | Bolt Komatsu | 2.05 kg. |
| ["SN: 10732-10811"] | ||||
| 4 | 06000-32056 | [1] | Bearing Komatsu | 44.801 kg. |
| ["SN: 10732-10811"] | ||||
| 5 | 06000-32052 | [1] | Bearing Komatsu | 42.601 kg. |
| ["SN: 10732-10811"] | ||||
| 6 | 569-22-72540 | [1] | Gear Komatsu | 165 kg. |
| ["SN: 10732-10811"] | ||||
| 7 | 569-22-72310 | [1] | Hub Komatsu China | |
| ["SN: 10732-10811"] | ||||
| 8 | 569-22-12341 | [6] | Holder Komatsu China | |
| ["SN: 10732-10811"] analogs:["5692212340"] | ||||
| 9 | 01010-61230 | [12] | Bolt Komatsu | 0.043 kg. |
| ["SN: 10732-10811"] analogs:["01010E1230", "0101031230"] | ||||
| 10 | 01643-31232 | [12] | Washer Komatsu | 0.027 kg. |
| ["SN: 10732-10811"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 11 | 569-22-72530 | [3] | Gear Komatsu | 11.2 kg. |
| ["SN: 10732-10811"] | ||||
| 12 | 569-22-72520 | [6] | Bearing Komatsu | 2.91 kg. |
| ["SN: 10732-10811"] | ||||
| 13 | 569-22-72611 | [1] | Carrier Komatsu China | |
| ["SN: 10732-10811"] | ||||
| 14 | 569-22-72511 | [3] | Shaft Komatsu | 5.81 kg. |
| ["SN: 10732-10811"] | ||||
| 15 | 04260-01587 | [3] | Ball, Steel Komatsu | 0.018 kg. |
| ["SN: 10732-10811"] | ||||
| 16 | 07040-11612 | [1] | Plug Komatsu | 0.05 kg. |
| ["SN: 10732-10811"] | ||||
| 17 | 07002-11623 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 10732-10811"] analogs:["0700201623"] | ||||
| 18 | 01010-62060 | [34] | Bolt Komatsu China | 0.2 kg. |
| ["SN: 10732-10811"] analogs:["0101052060", "0101032060", "0101082060"] | ||||
| 19 | 708-8F-11260 | [34] | Washer Komatsu China | |
| ["SN: 10732-10811"] | ||||
| 20 | 07000-12021 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 10732-10811"] analogs:["0700002021"] | ||||
| 21 | 569-22-72140 | [1] | Retainer Komatsu | 14.2 kg. |
| ["SN: 10732-10811"] | ||||
| 22 | 07000-A5280 | [1] | O-ring Komatsu | 0.029 kg. |
| ["SN: 10732-10811"] | ||||
| 23 | 569-22-00141 | [1] | Shim Assembly Komatsu | 1.2 kg. |
| ["SN: 10732-10811"] | ||||
| 24 | 569-22-62210 | [1] | Retainer Komatsu China | |
| ["SN: 10732-10811"] | ||||
| 25 | 01010-62460 | [6] | Bolt Komatsu | 0.324 kg. |
| ["SN: 10732-10811"] analogs:["0101052460", "0101032460", "0101082460", "0104032460"] | ||||
| 26 | 569-22-72570 | [1] | Spacer Komatsu China | |
| ["SN: 10732-10811"] | ||||
| 27 | 569-22-72420 | [1] | Gear Komatsu | 11.5 kg. |
| ["SN: 10732-10811"] | ||||
| 28 | 569-22-62810 | [1] | Ring Komatsu | 0.04 kg. |
| ["SN: 10732-10811"] | ||||
| 29 | 56A-46-13480 | [1] | O-ring Komatsu China | 0.054 kg. |
| ["SN: 10732-10811"] | ||||
| 30 | 569-22-72621 | [1] | Cover Komatsu China | |
| ["SN: 10732-10811"] | ||||
| 31 | 286-22-12630 | [1] | Button Komatsu | 0.3 kg. |
| ["SN: 10732-10811"] | ||||
| 32 | 07000-15415 | [1] | O-ring Komatsu | 0.05 kg. |
| ["SN: 10732-10811"] analogs:["0700005415"] | ||||
| 33 | 01010-61435 | [12] | Bolt Komatsu China | 0.06 kg. |
| ["SN: 10732-10811"] analogs:["0101051435", "0101031435", "0101081435"] | ||||
| 34 | 01643-31445 | [12] | Washer, Flat Komatsu | 0.019 kg. |
| ["SN: 10732-10811"] analogs:["0164301432"] | ||||
| 35 | 585-30-21620 | [1] | Plate Komatsu China | |
| ["SN: 10732-10811"] | ||||
| 36 | 01010-81220 | [2] | Bolt Komatsu | 0.032 kg. |
| ["SN: 10732-10811"] analogs:["0101051220"] | ||||
| 38 | 07044-13620 | [1] | Plug Komatsu | 0.496 kg. |
| ["SN: 10732-10811"] analogs:["0704403620"] | ||||
| 39 | 07002-13634 | [1] | O-ring Komatsu China | 0.013 kg. |
| ["SN: 10732-10811"] analogs:["0700203634"] | ||||
| 40 | 569-22-62440 | [1] | Shaft Komatsu | 95.801 kg. |
| ["SN: 10732-10811"] | ||||
| 41 | 569-22-73213 | [1] | Tube Komatsu | 583.9 kg. |
| ["SN: 10732-10811"] analogs:["5692273212", "5692273214"] | ||||
| 42 | 07000-15320 | [1] | O-ring Komatsu | 0.04 kg. |
| ["SN: 10732-10811"] analogs:["0700005320"] | ||||
| 43 | 569-22-82890 | [1] | Cover Komatsu China | |
| ["SN: 10732-10811"] | ||||
| 44 | 01010-61660 | [4] | Bolt Komatsu | 0.127 kg. |
| ["SN: 10732-10811"] analogs:["0101031660", "0101081660"] | ||||
| 45 | 01643-31645 | [4] | Washer Komatsu | 0.072 kg. |
| ["SN: 10732-10811"] analogs:["802170005", "0164301645"] | ||||
| 46 | 569-22-72870 | [14] | Nut Komatsu | 0.33 kg. |
| ["SN: 10732-10811"] | ||||
| 47 | 569-22-72840 | [14] | Washer Komatsu | 0.09 kg. |
| ["SN: 10732-10811"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
