20M-60-82001 20M6082001 Motor ASS'Y KOMATSU Excavator Travel Gearbox Parts For PC12R-8
- 20M-60-82001 20M6082001 Motor ASS'Y KOMATSU Excavator Travel Gearbox Parts For PC12R-8
- Specifiion
| Name | Motor ASS'Y |
| Parts No | 20M-60-82001 20M6082001 |
| Machine Model | PC12R |
| Category |
Travel Gearbox |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Core details
| Function |
| It is a hydraulic final drive motor assembly that combines a high‑pressure hydraulic motor and a heavy‑duty planetary gearbox. Its job is to convert hydraulic pressure into rotational torque to drive the machine’s tracks, enabling forward/reverse movement and steering. |
| Design & Build |
| Pre‑assembled, pre‑filled with oil, and ready for direct bolt‑on installation. It features reinforced construction to withstand heavy loads, vibration, and harsh job‑site conditions. |
| Purpose |
| Used as a direct replacement for worn or failed travel drives to restore full mobility and performance to the machine. |
- Compatible models
EXCAVATORS PC12R Komatsu
- More other motor parts fit for KOMATSU machine
| 20M-60-83001 MOTOR ASS'Y |
| PC12R, PC15R |
| 20M-60-83001 MOTOR ASS'Y |
| PC12R, PC15R |
| TZ285B200000ED MOTOR |
| BZ210, PC128UU |
| TW502752-3250 MOTOR ACTUATOR |
| CD110R, GD555, GD655, GD675, PC128US, PC128UU, PC138, PC138US, PC228, PC228US, PC308, PC78MR, PC78US, PC78UU |
| FUPMV07B1005AS MOTOR ASS'Y |
| PC09, PC10MR, PC10UU |
| 20A-60-13100 MOTOR ASS'Y |
| PC03, PC08UU, PC09 |

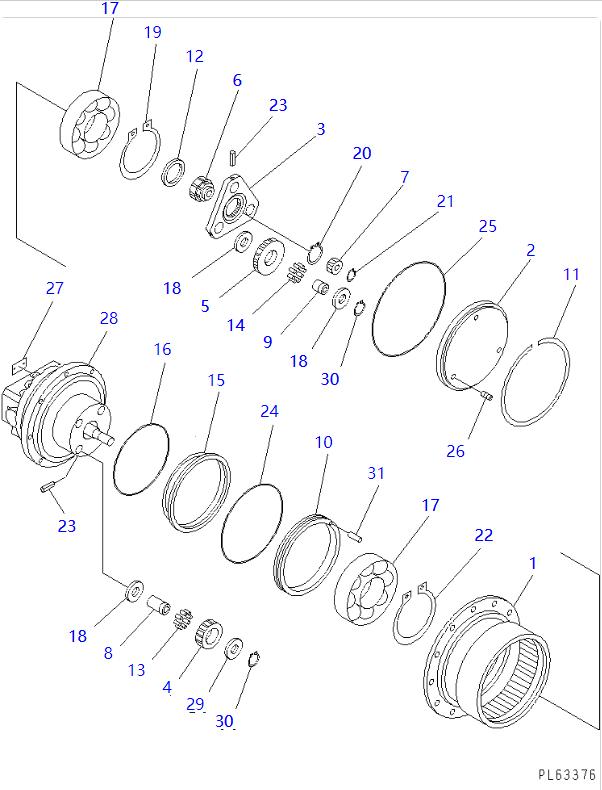

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 20M-60-82001 | [2] | MOTOR ASS'Y Komatsu China | ||
| ["SN: 10001-UP"] |$0. | ||||
| 1. | FUFZD8105201 | [1] | BODY Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 2. | FUFRP096102 | [1] | COVER Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 3. | [1] | CARRIER Komatsu China | ||
| ["SN: 10001-UP"] | ||||
| 4. | FUFRP118506 | [4] | GEAR Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 6. | FUFRP-0961-08 | [1] | GEAR Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 7. | FUFZD8393109 | [1] | GEAR Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 10. | FUFZD8105212 | [1] | RING,SEAL Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 11. | FUFRP0961113 | [1] | RING,SNAP Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 12. | FUFRP147414 | [1] | COLLAR,THRUST Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 13. | FUFRP096116 | [52] | NEEDLE Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 14. | FUFRP-0961-17 | [39] | NEEDLE Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 15. | FUES100110 | [-2] | SEAT,FLOATING Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 17. | FU7819W1V | [2] | BEARING Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 18. | FUFRP096221 | [10] | WASHER,THRUST Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 19. | FUFRP096122 | [1] | RING,SNAP Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 20. | FURA26 | [1] | RING,SNAP Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 21. | FURA13 | [1] | RING,SNAP Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 22. | FUFRP096126 | [1] | RING,SNAP Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 23. | 04025-00312 | [7] | PIN,SPRING Komatsu | 0.001 kg. |
| ["SN: 10001-UP"] | ||||
| 24. | FUROA25170 | [1] | O-RING Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 25. | FUROA24870 | [1] | O-RING Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 26. | FUTPHA-1/8 | [3] | PLUG Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 29. | FUFRP147434 | [4] | WASHER,THRUST Komatsu China | |
| ["SN: 10001-UP"] | ||||
| 30. | FUFRP146437 | [4] | RING,SNAP Komatsu China | |
| ["SN: 10001-UP"] analogs:["FUGHC121185"] | ||||
| 31. | FUPPH7-4X6 | [1] | PIN Komatsu China | |
| ["SN: 10001-UP"] | ||||
| KIT. | FUGHB18105 | [1] | BODY SUB ASS'Y Komatsu China | |
| ["SN: 10001-UP"] | ||||
| KIT. | FUGHC10028393 | [1] | CARRIER SUB ASS'Y Komatsu China | |
| ["SN: 10001-UP"] analogs:["FUFZD8393107"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
