2081093 0501212814 Pressure Switch Excavator Electric Parts Fit For M320 3116
- 2081093 0501212814 Pressure Switch Excavator Electric Parts Fit For M320 3116
- Specifiion
| Name | Pressure Switch |
| Parts No | 2081093 0501212814 |
| Machine Model | M312 M315 M318 M320 |
| egory |
Lines Gp-Pilot |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
WHEELED EXCAVATOR M312 M315 M318 M320 ..erp.illar.
- More other switch parts fit for C A T machine
| 3E0075 SWITCH GP-MAGNETIC |
| 235D, 245D, 30/30, 307, 3116, 3126, 3126B, 3126E, 3176B, 3176C, 3196, 3304, 3306B, 3406, 3408, 3408B, 3408C, 3412, 3412C, 3412D, 3412E, 3512, 3516, 3516B, 5130, 515, 525, 550, 561M, 570, 570B, 580, 58... |
| 1331331 SWITCH GP-PRESSURE |
| M312, M315, M318 |
| 7n0718 SWITCH AS-DISCONNECT |
| 1090, 1190, 1190T, 120, 120B, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 1290T, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 1390, 140B, 140G, 140H,... |
| 1145333 SWITCH AS-PRESSURE |
| 1090, 1190, 1190T, 120K, 120K 2, 120M, 1290T, 12K, 1390, 140K, 140K 2, 140M, 14M, 160K, 160M, 16M, 216, 2290, 236, 2390, 2391, 247, 2491, 24H, 24M, 2590, 267, 287, 30/30, 307B, 312B L, 315B L, 317B LN... |
| 2537910 SWITCH AS-PRESSURE |
| 3054, 3054B, 3054C, 3056, 416C, 416D, 420D, 426C, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D, 446D, 554, 637D, 657B, 908, 914G, AP-300, BG-225C, C3.3, CB-434B, CB-434C, CB-534B, CB-534C, CB-535B, ... |
| 3E6455 SWITCH AS-PRESSURE |
| 320B, 322B, 322B L, 322C, 322C FM, 325B, 325B L, 330, 3306B, 330B, 330B L, 330C, 330C L, 3406C, 3412C, 345B L, 69D, 824G, 825G, 826G, 918F, 924F, 928F, 938F, 950G, 962G, 980G, AD40, AD45, AE40, AE40 I... |
| 1717570 SWITCH AS-PRESSURE |
| M312, M315, M318, M320 |
| 2U6635 SWITCH AS |
| M312, M315, M318, M320 |
| 1802649 SWITCH-KEY |
| M312, M315, M318, M320 |

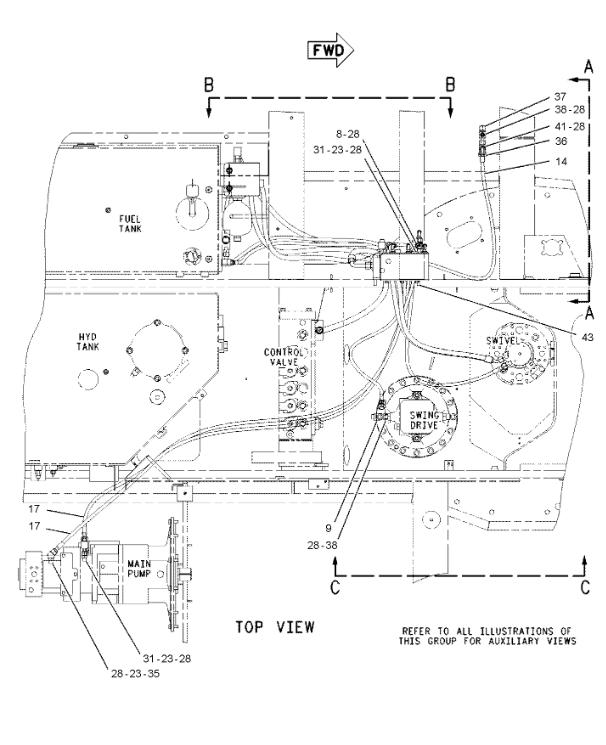

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 5W-1119 | [2] | WASHER (9.8X18.5X1.5-MM THK) | |
| 2 | 8U-1043 | [2] | KNOB | |
| 3 | 8U-6159 | [1] | ACCUMULATOR GP-HYDRAULIC (CHARGED) | |
| 4 | 8U-7274 | [1] | ACCUMULATOR AS-HYDRAULIC (CHARGED) | |
| 5 | 9T-1013 | [1] | VALVE AS-CHECK | |
| 6 | 113-0434 I | [2] | HOSE AS | |
| 7 | 113-7348 Y | [1] | VALVE GP-SOLENOID | |
| 8 | 117-8032 | [1] | TEE-SWIVEL | |
| 9 | 122-1233 I | [1] | HOSE AS | |
| 10 | 137-3872 I | [1] | HOSE AS | |
| 11 | 137-9373 | [1] | HOSE AS | |
| 12 | 138-1241 I | [2] | HOSE AS | |
| 13 | 138-9359 | [1] | HOSE AS | |
| 14 | 144-8061 | [1] | HOSE AS | |
| 15 | 145-2582 I | [1] | HOSE AS | |
| 16 | 145-7716 Y | [1] | MANIFOLD GP-CONTROL | |
| 17 | 151-1948 | [2] | HOSE AS | |
| 18 | 163-2084 | [1] | SWITCH AS-PRESSURE (AEC SWING) | |
| 19 | 208-1093 | [1] | SWITCH-PRESSURE (LOW TRAN CLUTCH PRESSURE) | |
| 20 | 173-0684 | [1] | PLATE | |
| 21 | 173-0687 | [1] | PLATE AS | |
| 22 | 173-9514 | [1] | PLATE | |
| 23 | 3J-1907 | [18] | SEAL-O-RING | |
| 24 | 3K-0360 | [5] | SEAL-O-RING | |
| 25 | 5H-6005 | [1] | SEAL-O-RING | |
| 26 | 5W-1696 | [1] | WASHER-SEALING (12.2X15.4X1.5-MM) | |
| 27 | 5W-1705 | [1] | WASHER (33.3X38.9X2-MM THK) | |
| 28 | 6V-8397 | [29] | SEAL-O-RING | |
| 29 | 6V-8398 | [6] | SEAL-O-RING | |
| 30 | 6V-8625 | [1] | ELBOW | |
| 31 | 6V-8636 | [13] | CONNECTOR | |
| 32 | 6V-8639 | [3] | CONNECTOR | |
| 33 | 6V-8723 | [1] | ELBOW | |
| 34 | 6V-8724 | [1] | ELBOW | |
| 35 | 6V-9001 | [2] | ELBOW | |
| 36 | 6V-9168 | [1] | NUT (11/16-16-THD) | |
| 37 | 6V-9829 | [1] | CAP | |
| 38 | 6V-9836 | [3] | TEE-SWIVEL | |
| 39 | 6V-9850 | [1] | ELBOW | |
| 40 | 6V-9851 | [2] | ELBOW | |
| 41 | 7X-0820 | [1] | TEE | |
| 42 | 8T-0075 | [1] | CONNECTOR | |
| 43 | 8T-0272 M | [2] | BOLT-SOCKET HEAD (M10X1.5X110-MM) | |
| 44 | 8T-4200 M | [3] | BOLT (M8X1.25X16-MM) | |
| 45 | 8T-4224 | [3] | WASHER-HARD (8.8X16X2-MM THK) | |
| 46 | 8T-6869 M | [2] | BOLT (M8X1.25X60-MM) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
