• 714-12-12640 7141212640 Gear Wheel Loaders Spare Parts Support For KOMATSU WA320

• ​Specifiion

• Compatible models

WHEEL LOADERS WA320 Komatsu

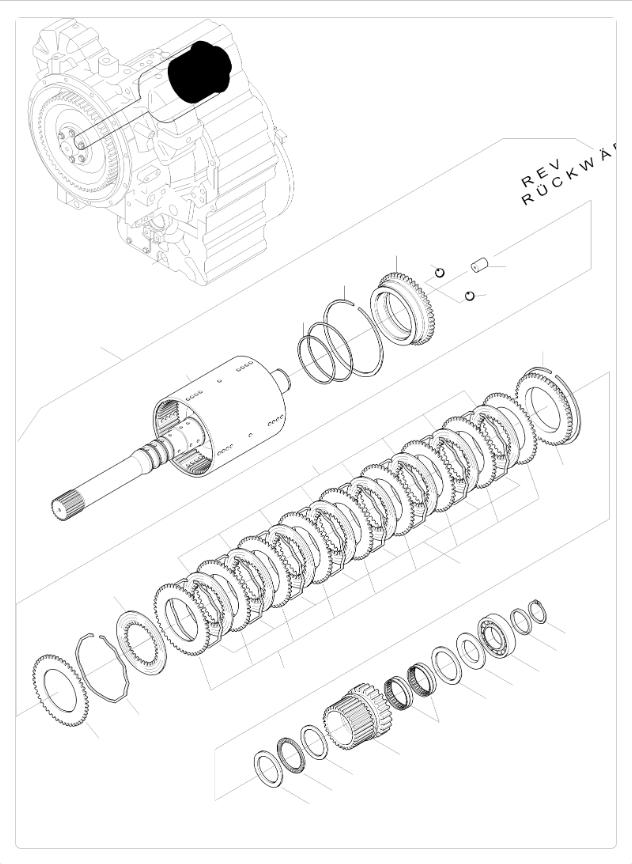

• alog parts list

Pos.	Part No	Qty	Parts name	Comments
0	714-16-12050	[1]	COUPLING/CLUTCH Komatsu China
1.	714-16-12140	[1]	TURBINE SHAFT Komatsu China
			analogs:["7141612141"]
1A.	714-16-12650	[1]	PISTON Komatsu China
2.	714-08-19230	[1]	RING Komatsu	0.02 kg.
3.	714-16-19210	[1]	RING Komatsu	0.006 kg.
4.	714-12-19711	[9]	INTERNAL DISC Komatsu	0.12 kg.
			analogs:["7141219710"]
5.	714-16-19730	[10]	CLUTCH DISC Komatsu	0.185 kg.
			analogs:["4191512310"]
6.	419-15-12133	[9]	SPRING Komatsu	0.01 kg.
			analogs:["56D1512710"]
7.	714-12-12610	[1]	PLATE Komatsu	1.167 kg.
8.	419-15-12140	[2]	SNAP RING Komatsu	0.096 kg.
9.	714-12-12640	[1]	GEAR Komatsu China
10.	419-15-12271	[2]	NEEDLE BEARING Komatsu	0.18 kg.
			analogs:["4191512270"]
11.	419-15-12650	[1]	THRUST WASHER Komatsu	0.041 kg.
12.	419-15-12640	[1]	THRUST BEARING Komatsu	0.041 kg.
13.	714-12-12760	[1]	RING Komatsu	0.8 kg.
14.	714-11-19510	[1]	THRUST WASHER Komatsu	0.5 kg.
15.	714-12-12710	[1]	DISC Komatsu	0.9 kg.
16.	06033-02210	[1]	ROLLER BEARING Komatsu	0.59 kg.
17.	714-12-12930	[1]	DISTANCE PIECE Komatsu	0.04 kg.
18.	04066-00050	[1]	SNAP RING Komatsu	0.016 kg.
19.	714-12-12180	[1]	THROTTLE Komatsu China
20.	714-11-19390	[2]	BALL Komatsu China

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
