706-7G-71710 7067G71710 Valve Support For KOMATSU Excavators PC200 PC200LL PC210 PC220
- 706-7G-71710 7067G71710 Valve Support For KOMATSU Excavators PC200 PC200LL PC210 PC220
- Specifiion
| egory | KOMATSU main control valve parts |
| Name | Valve |
| Parts No | 706-7G-71710 7067G71710 |
| Machine Model |
PC200 PC200LL PC210 PC220 PC228 PC228US PC230NHD PC240 PC270 PC290 PC400 PC550 PC600 PC650 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATORS PC200 PC200LL PC210 PC220 PC228 PC228US PC230NHD PC240 PC270 PC290
PC400 PC550 PC600 PC650 Komatsu

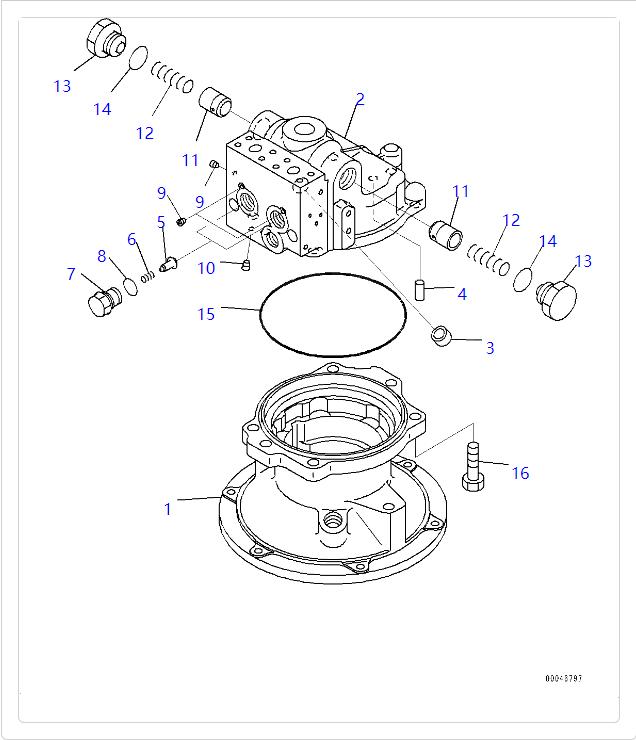

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 706-7G-01170 | [1] | Motor Assembly Komatsu | 53 kg. | |
| ["SN: 30117-UP"] |$0. | ||||
| 706-7G-03130 | [1] | Motor Subassembly Komatsu China | ||
| ["SN: 30117-UP"] |$1. | ||||
| 1 | 706-7G-41240 | [1] | CAASE Komatsu China | |
| ["SN: 30117-UP", "SCC: C2"] | ||||
| 2 | 706-7G-71180 | [1] | Housing Komatsu China | |
| ["SN: 30117-UP", "SCC: C2"] | ||||
| 3 | 706-7G-40110 | [1] | Bushing Komatsu China | |
| ["SN: 30117-UP", "SCC: C2"] | ||||
| 4 | 708-8K-15190 | [1] | Pin, Dowel Komatsu China | |
| ["SN: 30117-UP", "SCC: C2"] | ||||
| 5 | 709-25-11650 | [2] | Valve, Check Komatsu | 0.02 kg. |
| ["SN: 30117-UP"] | ||||
| 6 | 709-25-11361 | [2] | Spring Komatsu | 0.005 kg. |
| ["SN: 30117-UP"] | ||||
| 7 | 709-25-11640 | [2] | Plug Komatsu | 0.157 kg. |
| ["SN: 30117-UP"] | ||||
| 8 | 07000-12020 | [2] | O-ring Komatsu | 0.001 kg. |
| ["SN: 30117-UP"] | ||||
| 9 | 708-21-12541 | [3] | Plug Komatsu China | |
| ["SN: 30117-UP"] analogs:["7068651180"] | ||||
| 10 | 708-8F-31620 | [1] | Plug Komatsu China | |
| ["SN: 30117-UP"] | ||||
| 11 | 706-7G-71710 | [2] | Valve Komatsu | 0.1 kg. |
| ["SN: 30117-UP"] | ||||
| 12 | 706-7G-71560 | [2] | Spring Komatsu | 0.05 kg. |
| ["SN: 30117-UP"] | ||||
| 13 | 706-7G-71630 | [2] | Plug Komatsu China | |
| ["SN: 30117-UP"] | ||||
| 14 | 07002-13334 | [2] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 30117-UP"] analogs:["0700203334"] | ||||
| 15 | 706-75-42370 | [1] | O-ring Komatsu | 0.012 kg. |
| ["SN: 30117-UP", "SCC: C2"] | ||||
| 16 | 01010-61450 | [6] | Bolt Komatsu | 0.085 kg. |
| ["SN: 30117-UP"] analogs:["0101031450", "0101051450", "0101081450"] | ||||
