421-46-11730 4214611730 Spacer KOMATSU Wheel Loader Spare Parts For WA470-6A
- 421-46-11730 4214611730 Spacer KOMATSU Wheel Loader Spare Parts For WA470-6A
- Specifiion
| Name | Spacer |
| Parts No | 421-46-11730 4214611730 |
| Machine Model | WA450 WA450L WA470 WA480 |
| egory | Hinge Pin |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
COMPACTORS WF450 WF450T
WHEEL LOADERS 545 WA450 WA450L WA470 WA480 Komatsu
- More other spacer parts fit for KOMATSU machine
| 22D-62-18450 SPACER |
| AIR, D375A, FRONT, HD785, HYDRAULIC, WA380, WA430, WA500, WA600, WD600 |
| 421-15-12810 SPACER |
| 542, 545, WA400, WA420, WA450, WA470, WA500, WD500, WF450T, WF550, WF550T |
| 424-926-3890 SPACER |
| AIR, FRONT, GD555, GD655, GD675, HYDRAULIC, WA380, WA430, WA50, WA500 |
| 714-07-22711 SPACER |
| AIR, FRONT, WA380, WA380Z, WA400, WA430, WA450, WA470, WA480 |
| 421-15-12561 SPACER |
| 545, WA450, WA470, WF450T |
| 714-07-28760 SPACER |
| WA450, WA470, WA480, WA500 |
| 708-7S-18310 SPACER |
| AIR, BOTTOM, D61EX, D61PX, D65EX, D65PX, D65WX, D85EX, D85MS, D85PX, DRAWBAR,, FRONT, GD675, GD755, HM300, HYDRAULIC, KOMTRAX, PC1250, PC1250SP, WA1200, WA380, WA430, WA470, WA480, WA500 |
| 419-54-13570 SPACER |
| 532, 538, 545, WA200, WA320, WA380, WA420, WA450, WA470, WA800, WA900 |
| 423-46-41430 SPACER |
| FRONT, WA380, WA380Z, WA450, WA470, WA480 |
| 707-40-22140 SPACER |
| D575A |

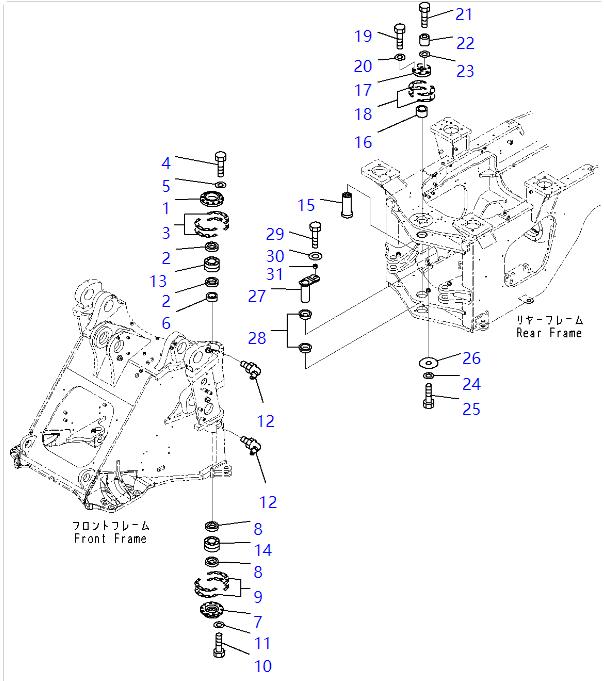

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 421-46-11710 | [1] | Retainer Komatsu OEM | 2.2 kg. |
| ["SN: 90216-UP"] | ||||
| 2 | 421-09-11310 | [2] | Seal, Dust Komatsu OEM | 0.37 kg. |
| ["SN: 90216-UP"] analogs:["4240911310"] | ||||
| 3 | 421-46-11372 | [20] | Shim, T=0.1mm Komatsu | 0.01 kg. |
| ["SN: 90216-UP"] | ||||
| 3 | 421-46-11382 | [20] | Shim, T=0.5mm Komatsu | 0.02 kg. |
| ["SN: 90216-UP"] | ||||
| 4 | 01010-81240 | [10] | Bolt Komatsu | 0.052 kg. |
| ["SN: 90216-UP"] analogs:["801015573", "0101051240"] | ||||
| 5 | 01643-31232 | [10] | Washer Komatsu | 0.027 kg. |
| ["SN: 90216-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 6 | 421-46-11741 | [1] | Spacer Komatsu | 0.56 kg. |
| ["SN: 90216-UP"] | ||||
| 7 | 421-46-11470 | [1] | Retainer Komatsu OEM | 2.2 kg. |
| ["SN: 90216-UP"] | ||||
| 8 | 07011-00080 | [2] | Seal, Oil Komatsu | 0.1 kg. |
| ["SN: 90216-UP"] | ||||
| 10 | 01010-81235 | [10] | Bolt Komatsu | 0.048 kg. |
| ["SN: 90216-UP"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
| 12 | 419-09-11250 | [2] | Fitting Komatsu | 0.01 kg. |
| ["SN: 90216-UP"] | ||||
| 13 | 421-46-11361 | [1] | Bearing Komatsu OEM | 3.71 kg. |
| ["SN: 90216-UP"] | ||||
| 15 | 421-46-41720 | [1] | Pin Komatsu | 7.62 kg. |
| ["SN: 90216-UP"] | ||||
| 16 | 421-46-11730 | [1] | Spacer Komatsu | 0.972 kg. |
| ["SN: 90216-UP"] | ||||
| 17 | 421-46-11421 | [1] | Cover Komatsu OEM | 3.5 kg. |
| ["SN: 90216-UP"] | ||||
| 18 | 421-46-11431 | [10] | Shim, T=0.2mm Komatsu | 0.06 kg. |
| ["SN: 90216-UP"] | ||||
| 18 | 421-46-11441 | [8] | Shim, T=0.5mm Komatsu | 0.2 kg. |
| ["SN: 90216-UP"] | ||||
| 18 | 421-46-11451 | [4] | Shim, T=1.0mm Komatsu | 1 kg. |
| ["SN: 90216-UP"] | ||||
| 19 | 01010-81250 | [6] | Bolt Komatsu | 0.061 kg. |
| ["SN: 90216-UP"] analogs:["0101051250"] | ||||
| 21 | 421-46-43110 | [4] | Bolt Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 22 | 423-46-41430 | [4] | Spacer Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 23 | 01643-31645 | [4] | Washer Komatsu | 0.072 kg. |
| ["SN: 90216-UP"] analogs:["802170005", "0164301645"] | ||||
| 25 | 01010-61630 | [1] | Bolt Komatsu | 0.081 kg. |
| ["SN: 90216-UP"] analogs:["0101051630", "0101031630", "0101081630"] | ||||
| 26 | 419-70-11340 | [1] | Plate Komatsu | 0.35 kg. |
| ["SN: 90216-UP"] | ||||
| 27 | 421-46-41461 | [1] | Pin Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 28 | 423-46-42330 | [2] | Bushing Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 29 | 01010-81640 | [1] | Bolt Komatsu | 0.264 kg. |
| ["SN: 90216-UP"] analogs:["0101061640", "801015186", "0101031640", "0101051640"] | ||||
| 30 | 421-70-11280 | [1] | Washer Komatsu | 0.072 kg. |
| ["SN: 90216-UP"] | ||||
| 31 | 421-46-41480 | [1] | Collar Komatsu China | |
| ["SN: 90216-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
