21N6-21033 Harness For HYUNDAI Excavator Spare Parts R200W-7 R210LC-7 R250LC-7 R220LC-7
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 21N6-21033 Harness Used For HYUNDAI Excavator Spare Parts R200W-7 R210LC-7 R250LC-7 R220LC-7
- Specifiion
| spare parts name | Harness |
| Equipment Model | R200W-7 R210LC-7 R250LC-7 R220LC-7 |
| Parts egory | HYUNDAI excavator spare parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Compatible models
7-SERIES WHEEL EXCAVATOR R200W-7
7-SERIES CRAWLER EXCAVATOR R210LC-7 R250LC-7 R220LC-7
- More other harness applicable for HYUNDAI machine
| 21N4-02810 HARNESS-CONSOLE,RH |
| R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7A, R3... |
| 21N8-40140 HARNESS-SIDE,RH |
| R140LC-7, R140LC-7A, R160LC7, R160LC7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R250LC7, R250LC7A, R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R360LC7, R360LC7A, R370LC7, R450LC7, ... |
| 21N6-32270 HARNESS-PUMP PS |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC7, R360LC7A, R370LC7, R450LC7, R4... |
| 21N6-10040 HARNESS-BOOM |
| R210LC7, R210LC7A, R210LC7H, R210LC9, RC215C7, RC215C7H |
| 21N6-20013 HARNESS-FRAME |
| R210LC7H |
| 21N6-20014 HARNESS-FRAME |
| R210LC7H |
| 21N4-11022 HARNESS-ENGINE FRONT |
| R210LC7H, RC215C7H |
| 21N6-20050 HARNESS-ENGINE REAR |
| R210LC7H, RC215C7H |
| 21N4-47800 HARNESS-EXT(LAMP) |
| R140LC-7, R140LC-7A, R160LC7, R160LC7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210NLC7A, R250LC7, R250LC7A, R290LC7A, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC7A, R370LC7... |
| 21N6-20016 HARNESS-FRAME |
| R210LC7H, RC215C7H |
| 21N6-20017 HARNESS-FRAME |
| R210LC7H |
| 21N6-21321 HARNESS ROTATE FRAME |
| R210LC7, R210LC7A, R210LC7H |
| 21N6-20014 HARNESS-FRAME |
| R210LC7H |
| 21N6-20013 HARNESS-FRAME |
| R210LC7H |
| 21W5-10020 HARNESS-PUMP PS |
| R210LC7A, R250LC7A |
| 21W5-10010 HARNESS-FRAME |
| R210LC7A |
| 21N6-21041 HARNESS-FRAME |
| R210LC7A |
| 21N8-10083 HARNESS-SIDE,RH |
| R210LC7, R305LC7 |

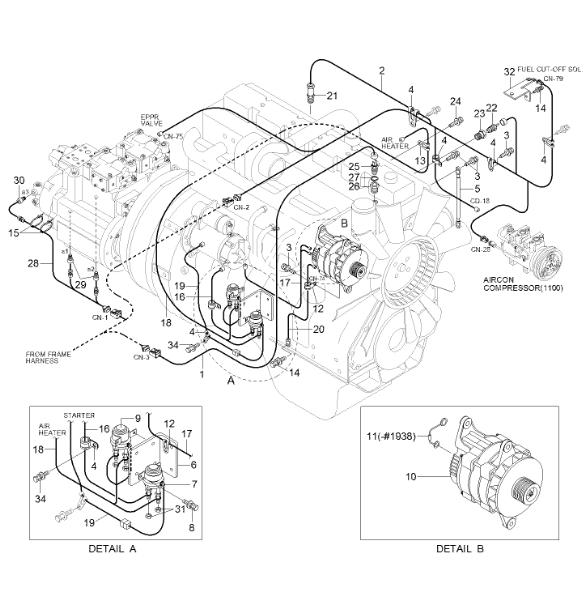

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21N6-21020 | [1] | HARNESS-ENGINE FRONT | |
| 1 | 21N6-21021 | [1] | HARNESS-ENGINE FRONT | |
| 2 | 21N6-21032 | [1] | HARNESS-ENGINE REAR | |
| 2 | 21N6-21033 | [1] | HARNESS-ENGINE REAR | |
| 3 | S037-122052 | [6] | BOLT-W/WASHER | |
| 4 | 21E9-00170 | [6] | CLIP-HARNESS | |
| 5 | 21EH-30720 | [1] | STRAP-EARTH | |
| 6 | 21N6-10190 | [1] | BRACKET-START RY | |
| 7 | E225-0006 | [1] | RELAY-HEATER | |
| 8 | S035-061622 | [4] | BOLT-W/WASHER | |
| 9 | 21N6-30120 | [1] | RELAY-START | |
| N10. | 21E6-40030 | [1] | ALTERNATOR ASSY | |
| 10 | 21Q6-41000-K | [1] | ALTERNATOR KIT | |
| 10-1. | 21Q6-41000 | [1] | ALTERNATOR ASSY | NOT SHOWN |
| 10-2. | 21N8-43000 | [1] | HARNESS-ALTERNATOR | NOT SHOWN |
| 11 | 21E1-21120 | [1] | WIRE LINK-ALTERNATOR | |
| 12 | S593-000702 | [13] | CLIP-HARNESS | |
| 13 | S593-000902 | [2] | CLIP-HARNESS | |
| 14 | S035-081622 | [2] | BOLT-W/WASHER | |
| 15 | S552-050203 | [15] | CLAMP-BAND | |
| 16 | 21L8-10360 | [2] | CABLE(ALT-EARTH) | |
| 17 | 21N6-20040 | [1] | CABLE(ALT-STARTER) | |
| 17 | 21N6-20041 | [1] | CABLE(ALT-STARTER) | |
| 18 | 21N6-21240 | [1] | CABLE(AIR HEAT-HEAT RY) | |
| 19 | 21EA-00191 | [1] | HARNESS-EXT,START RY | |
| 21 | 21E3-0042 | [1] | SENSOR-SPEED | |
| 21 | 21Q6-15800 | [1] | SENSOR-SPEED | |
| 22 | 21E3-5001 | [1] | SWITCH-ENG OIL PRESS | |
| 23 | 21N7-10070 | [1] | ADAPTER-OIL PRESSURE | |
| 24 | S035-101612 | [1] | BOLT-W/WASHER | |
| 25 | 21EN-40100 | [1] | SENDER-TEMP | |
| 26 | 21EA-50171 | [1] | FITTING-TEMP SW | |
| 27 | 21EA-50260 | [1] | PACKING-TEMP SW | |
| 28 | 21N8-11170 | [1] | HARNESS-PUMP PS | |
| 29 | 21EG-32200 | [2] | SENDER-PRESSURE | P1,P2 PUMP, OPT |
| 30 | 21EG-32210 | [1] | SENDER-PRESSURE | P3 PUMP, OPTION |
| 31 | S205-061002 | [2] | NUT | |
| 32 | 21EA-00201 | [1] | BRACKET-TACHO | |
| 34 | S035-081622 | [1] | BOLT-W/WASHER | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
