6754-71-7402 6754717402 Filter Assy Support For KOMATSU Excavators PC160 PC190 PC200
- 6754-71-7402 6754717402 Filter Assy Support For KOMATSU Excavators PC160 PC190 PC200
- Specifiion
| egory | KOMATSU excavators filter |
| Name | Filter assy |
| Parts No | 6754-71-7402 6754717402 6754717401 6754717400 |
| Machine Model |
PC160 PC190 PC200 PC200LL PC220 PC220LL PC228 PC228US PC240 PC270 PC290 PC308 PW140 PW148 PW160 PW180 PW200 PW220 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
BULLDOZERS D51EX/PX D61EX D61PX
ENGINES SAA4D107E SAA6D107E
EXCAVATORS PC160 PC190 PC200 PC200LL PC220 PC220LL PC228 PC228US PC240 PC270 PC290 PC308 PW140
PW148 PW160 PW180 PW200 PW220
GRADERS GD555 GD655 GD675
MOBILE CRUSHERS AND RECYCLERS BR380JG
WHEEL LOADERS WA200 WA200PZ WA250 WA250PZ WA320 WA320PZ WA380 WA430 Komatsu

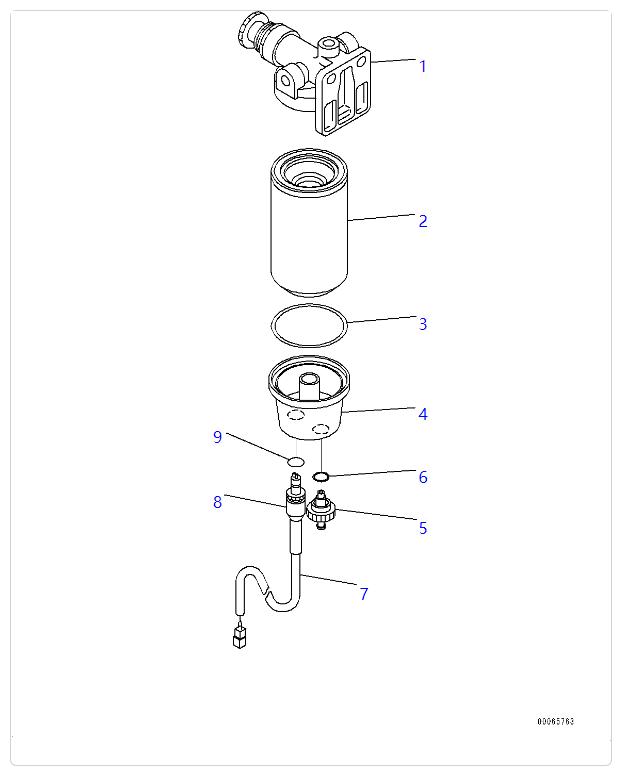

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 6754-71-7402 | [1] | Filter Assembly Komatsu | 2.475 kg. | |
| ["SN: 25001-UP"] analogs:["6754717401", "6754717400"] |$0. | ||||
| 1. | 6754-71-7200 | [1] | Head Komatsu | 1.05 kg. |
| ["SN: 25001-UP"] | ||||
| 1. | 600-311-3602 | [1] | Filter Assembly Komatsu | 0.97 kg. |
| ["SN: 25001-UP"] analogs:["6003113600", "6003113601", "6003193601", "6003193600", "6003193602"] | ||||
| 1 | 600-319-3610 | [1] | Cartridge Komatsu China | 1 kg. |
| ["SN: 25001-UP"] analogs:["6003113610", "6003113620", "6003113620"] | ||||
| 3 | 600-311-3630 | [1] | Seal Komatsu | 0.005 kg. |
| ["SN: 25001-UP"] | ||||
| 4 | 600-311-3640 | [1] | Bowl Komatsu | 0.185 kg. |
| ["SN: 25001-UP"] | ||||
| 4 | 600-311-3660 | [1] | Valve Assembly Komatsu | 0.02 kg. |
| ["SN: 25001-UP"] analogs:["6003113710", "6003113711"] | ||||
| 5 | 600-311-3711 | [1] | Valve Komatsu | 0.02 kg. |
| ["SN: 25001-UP"] analogs:["6003113710", "6003113660"] | ||||
| 6 | 600-311-3670 | [1] | Seal Komatsu | 0.001 kg. |
| ["SN: 25001-UP"] | ||||
| 6 | 600-311-3722 | [1] | Sensor, Water-in-fuel Komatsu | 0.05 kg. |
| ["SN: 25001-UP"] analogs:["6003113721", "6003113720", "6003113680"] | ||||
| 9 | 600-311-3690 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 25001-UP"] | ||||
- More other filter parts applied to KOMATSU equipment
| 20Y-979-6261 FILTER |
| D155A, D155AX, D65EX, D65PX, D65WX, D85PX, DRAWBAR,, HM250 |
| 569-86-82300 FILTER ASS'Y |
| HD465, HD605 |
| 708-2L-25480 FILTER |
| CARRIER, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, PC130, PC220, PC300, PC350, PC400, PC450, PC45MR, PC55MR, PC88MR, PRESSURE, RAIN |
| 427-07-22120 FILTER |
| HD255, HD465, HD605, WA100, WA150, WA150L, WA200, WA200L, WA200PT, WA200PTL, WA250, WA250L, WA250PT, WA250PTL, WA270, WA320, WA320L, WA320PT, WA380, WA400, WA430, WA450, WA470, WA480 |
| 708-2L-25480 FILTER |
| CARRIER, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, PC130, PC220, PC300, PC350, PC400, PC450, PC45MR, PC55MR, PC88MR, PRESSURE, RAIN |
| 20Y-97-96261 FILTER |
| D155A, D155AX, D65EX, D65PX, D65WX, D85PX, DRAWBAR,, HM250 |
| 600-311-3210 FILTER (1-1/4) |
| HD465, HD605, HM350, SA6D170E, SAA6D170E |
| 708-2L-25480 FILTER |
| CARRIER, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, PC130, PC220, PC300, PC350, PC400, PC450, PC45MR, PC55MR, PC88MR, PRESSURE, RAIN |
| 708-2L-25480 FILTER |
| CARRIER, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, PC130, PC220, PC300, PC350, PC400, PC450, PC45MR, PC55MR, PC88MR, PRESSURE, RAIN |
| 567-15-11610 FILTER |
| HD200 |
| YM119005-35100 FILTER |
| 3D78AE, 3D78N, 3D84E, 3D84N, GC50, PC110R, PC95R, PW110R, PW95R, S3D84, S3D84E, WA115, WA20, WA30, WA40, WA90, WB140, WB140PS, WB150, WB150AWS, WB150PS, WB150WSC, WB91R, WB93R, WB97R, WB97S, WB98A |
| 426-15-16510 FILTER ASS'Y |
| 558, 568, D375A, D475A, D575A, GD805A, GD825A, HD325, HD465, HD785, LW250L, WA200, WA300, WA500, WA600, WA700, WA800, WA800L, WA900, WA900L, WD600, WD900, WF600T, WF650T, WS23S |
| JK652-21900 FILTER |
| HD785, S6D125E, S6D140E, SA12V140, SA6D140, SAA6D125E, SAA6D140E, SAA6D170E |
| 561-84-81510 FILTER ASS'Y |
| HD785 |
| 600-311-3240 FILTER ASS'Y |
| BR580JG, D375A, HD465, HD605, HM350, PC1250, PC1250SP, PC400, PC450, SA6D170E, SAA6D170E |
| 6754-71-7400 FILTER ASS'Y |
| PC200, PC210, PC220, PC230NHD, PC240, PC270, PC290, PC308, SAA6D107E, WA250PZ, WA320PZ, WA380 |
| 205-979-7080 FILTER |
| BP500, HD325, HD465, HD785, PC1000, PC1000SE, PC150, PC200, PC220, PC300, PC300HD, PC310, PC400, PC400HD |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
