705-51-20840 705-51-20841 Pump Assembly KOMATSU Bulldozer Spare Parts For D61EX-15
- 705-51-20840 705-51-20841 Pump Assembly KOMATSU Bulldozer Spare Parts For D61EX-15
- Specifiion
| Name | Pump Assembly |
| Parts No | 705-51-20840 705-51-20841 |
| Machine Model | D61EX D61PX |
| Category | Hydraulic Pump |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Key features & construction
| 1.Double Gear Design: Integrates two gear pump sections in a single housing, providing separate or combined fluid flow for different hydraulic circuits (e.g., one for transmission, one for implement control). |
| 2.High-Pressure Capability: Built to withstand the high operating pressures required for heavy-duty earthmoving. |
| 3.Precision Machining: Internal gears and components are manufactured to tight tolerances for efficient fluid delivery and minimal internal leakage. |
| 4.Rugged Housing: Cast iron construction for durability and resistance to vibration and shock in harsh working environments. |
| 5.Complete Assembly: Sold as a fully assembled unit, including the gear set, housing, shaft, seals, and mounting flanges, ready for installation. |
- Compatible models
BULLDOZERS D61EX D61PX Komatsu
- More other pump parts fit for KOMATSU machine
| 708-1S-00240 PUMP ASSEMBLY |
| D61EX, D61PX, D65EX, D65PX, D65WX, D85EX, D85MS, D85PX, DRAWBAR, |
| 708-1S-01930 PUMP SUB ASSEMBLY |
| D61EX, D61PX, D65EX, D65PX, D65WX, D85EX, D85MS, D85PX, DRAWBAR, |
| 705-21-32300 PUMP ASSEMBLY, (SAL40) |
| D61EX, D61PX |
| 705-51-20841 PUMP ASS'Y |
| D61EX, D61PX |
| 708-1L-00380 PUMP ASSEMBLY |
| D61EX, D61PX |
| 705-11-32240 PUMP ASSEMBLY, (SAL40) |
| D61EX, D61PX |
| 07950-10450 PUMP |
| AIR, BATTERY, BOOM,, BUCKET, CARRIER, D155A, D155AX, D275A, D31EX, D31PX, D375A, D37EX, D37PX, D39EX, D39PX, D65EX, D65PX, D65WX, FRONT, GD555, GD655, GD675, HM250, PC130, PC160, PC18MR, PC190, PC220,... |
| 14X-49-11600 PUMP ASS'Y |
| D60P, D61E, D61EX, D61PX, D63E, D65E, D65EX, D65P, D65PX, D65WX, D68ESS, D70LE, D85E, D85ESS, JT150 |
| 705-41-01200 PUMP |
| D61E, D61EX, D61PX, D65E, D65EX, D65P, D65PX, D68ESS, D70LE, D85E, D85ESS |

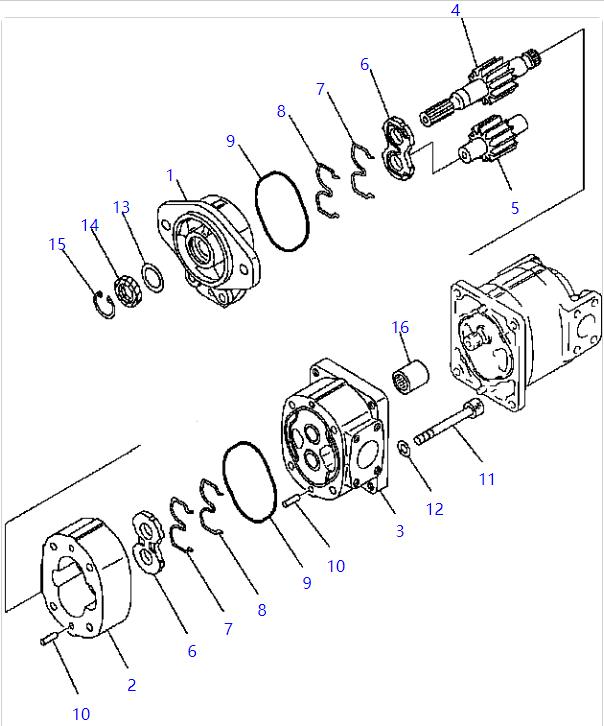

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 705-51-20840 | [1] | PUMP ASSEMBLY, (SAL40+40) Komatsu China | ||
| ["SN: B40001-UP"] analogs:["7055120841"] |1. | ||||
| 705-11-32240 | [1] | PUMP ASSEMBLY, (SAL40) Komatsu China | ||
| ["SN: B40001-UP"] |1. | ||||
| 1 | 705-17-02011 | [1] | BRACKET ASSEMBLY Komatsu | 1.467 kg. |
| ["SN: B40001-UP"] | ||||
| 705-17-02353 | [2] | BUSHING Komatsu | 0.025 kg. | |
| ["SN: B40001-UP"] |2. | ||||
| 2 | 705-17-32012 | [1] | CAASE, GEAR Komatsu | 1.282 kg. |
| ["SN: B40001-UP"] | ||||
| 3 | 705-17-02221 | [1] | CARRIER ASSEMBLY Komatsu | 2.68 kg. |
| ["SN: B40001-UP"] | ||||
| 4 | 705-17-32430 | [1] | GEAR, DRIVE Komatsu | 0.923 kg. |
| ["SN: B40001-UP"] | ||||
| 5 | 705-17-32512 | [1] | GEAR, DRIVEN Komatsu | 0.585 kg. |
| ["SN: B40001-UP"] | ||||
| 6 | 705-17-02612 | [2] | PLATE, SIDE Komatsu | 0.11 kg. |
| ["SN: B40001-UP"] analogs:["3EC6015270"] | ||||
| 7 | 705-17-02430 | [2] | RING, BACK-UP Komatsu | 0.002 kg. |
| ["SN: B40001-UP"] | ||||
| 8 | 705-17-02460 | [2] | RING, SEAL Komatsu | 0.002 kg. |
| ["SN: B40001-UP"] | ||||
| 9 | 705-17-02360 | [2] | O-RING Komatsu | 0.002 kg. |
| ["SN: B40001-UP"] | ||||
| 10 | 04020-01024 | [4] | PIN, DOWEL Komatsu | 0.015 kg. |
| ["SN: B40001-UP"] analogs:["PZF890001197"] | ||||
| 11 | 01253-61205 | [4] | BOLT Komatsu China | |
| ["SN: B40001-UP"] analogs:["0125371205", "7051702780", "7054180920"] | ||||
| 12 | 01643-51232 | [4] | WASHER Komatsu | 0.024 kg. |
| ["SN: B40001-UP"] | ||||
| 13 | 705-17-02870 | [1] | PLATE Komatsu | 0.01 kg. |
| ["SN: B40001-UP"] | ||||
| 14 | 705-17-02830 | [1] | SEAL, OIL Komatsu China | 0.012 kg. |
| ["SN: B40001-UP"] analogs:["7051702810"] | ||||
| 15 | 04065-04018 | [1] | RING, SNAP Komatsu | 0.005 kg. |
| ["SN: B40001-UP"] | ||||
| 16. | 705-17-02330 | [1] | COUPLING ASSEMBLY Komatsu | 0.093 kg. |
| ["SN: B40001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
