282-7569 2827569 High-Pressure Hydraulic Hose Excavator Spare Parts For C9 330D 336D
- 282-7569 2827569 High-Pressure Hydraulic Hose Excavator Spare Parts For C9 330D 336D
- Specifiion
| Name | Hose |
| Parts No | 282-7569 2827569 |
| Machine Model | 330D 330D FM 330D L 330D LN 336D 336D L |
| Category | High-Pressure Hydraulic Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Key details
| 1.Part Number: 2827569 |
| This is the OEM part number (original equipment manufacturer part number) for identification and replacement. |
| 2.Function: |
| Used to transport hydraulic oil, fuel, coolant, or lubricating oil in machinery. |
| 3.Application: |
| Mostly fitted on excavators and similar heavy equipment to connect hydraulic components, ensuring pressure resistance, oil resistance, heat resistance, and durability. |
- Compatible models
EXCAVATOR 330D 330D FM 330D L 330D LN 336D 336D L 336D LN 336D2 336D2 L 340D L 340D2 L
MOBILE HYD POWER UNIT 330D 330D L 336D L c.ater.pillar.
- More other hose parts fit for C A T machine
| 2352470 HOSE AS |
| 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L |
| 2181223 HOSE AS |
| 345C L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH |
| 2125334 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L, 365C L MH |
| 3402958 HOSE AS |
| 336E, 336E L, 336E LN, 390D, 390D L |
| 2181230 HOSE AS |
| 365B, 365B II, 365C, 365C L, 385B, 385C, 385C L |
| 2125540 HOSE AS |
| 375, 385B, 385C, 385C L |
| 2125539 HOSE AS |
| 375, 385B, 385C, 385C L |
| 2181227 HOSE AS |
| 328D LCR, 365B, 365B II, 365B L, 365C, 365C L |
| 2125330 HOSE AS |
| 330C, 365B, 365B II, 365B L, 365C L MH |
| 2125328 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L |
| 1960498 HOSE AS |
| 325C, 330C, 330C FM, 330C L |

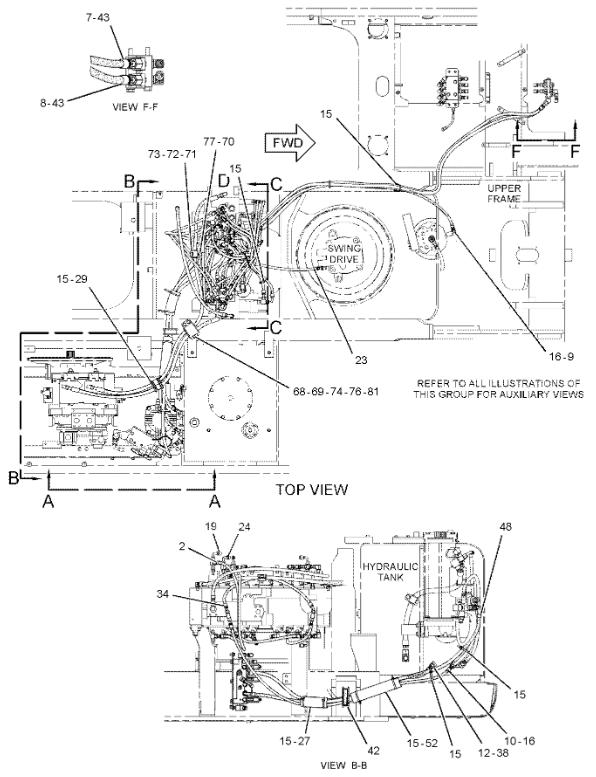

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4I-0836 I | [1] | HOSE AS | |
| 2 | 4I-0839 I | [1] | HOSE AS | |
| 3 | 4I-1739 I | [1] | HOSE AS | |
| 4 | 4I-5900 I | [1] | HOSE AS | |
| 5 | 4I-5906 I | [1] | HOSE AS | |
| 6 | 4I-9521 | [2] | BAND-MARKER (RED, L1) | |
| 7 | 4I-9522 | [6] | BAND-MARKER (YELLOW, L2) | |
| 8 | 4I-9523 | [4] | BAND-MARKER (BLUE, L3) | |
| 9 | 4I-9524 | [6] | BAND-MARKER (BROWN, L4) | |
| 10 | 4I-9525 | [2] | BAND-MARKER (ORANGE, R1) | |
| 11 | 4I-9527 | [4] | BAND-MARKER (GREEN, R3) | |
| 12 | 4I-9528 | [4] | BAND-MARKER (PURPLE, R4) | |
| 13 | 5I-4396 I | [1] | HOSE AS | |
| 14 | 5I-8708 I | [1] | HOSE AS | |
| 15 | 7K-1181 | [16] | STRAP-CABLE | |
| 16 | 7Y-4199 I | [2] | HOSE AS | |
| 17 | 087-4411 I | [1] | HOSE AS | |
| 18 | 087-4531 I | [2] | HOSE AS | |
| 19 | 087-4534 I | [1] | HOSE AS | |
| 20 | 087-5760 I | [1] | HOSE AS | |
| 21 | 087-5762 I | [1] | HOSE AS | |
| 22 | 087-5772 I | [1] | HOSE AS | |
| 23 | 087-5773 I | [1] | HOSE AS | |
| 24 | 087-5774 I | [1] | HOSE AS | |
| 25 | 087-5776 I | [1] | HOSE AS | |
| 26 | 104-8838 I | [1] | HOSE AS | |
| 27 | 104-8903 | [1] | GUARD | |
| 28 | 110-5496 I | [1] | HOSE AS | |
| 29 | 282-7092 | [2] | GROMMET | |
| 30 | 143-4254 I | [1] | HOSE AS | |
| 31 | 164-5558 | [1] | STOPPER AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 5I-4371 | [1] | STOPPER | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 32 | 164-6981 Y | [1] | ACCUMULATOR GP-HYDRAULIC (CHARGED) | |
| 33 | 164-8977 I | [1] | HOSE AS | |
| 34 | 164-8983 I | [1] | HOSE AS | |
| 35 | 176-4463 | [1] | PLATE | |
| 36 | 176-4469 | [1] | BLOCK | |
| 37 | 176-4768 I | [1] | HOSE AS | |
| 38 | 184-9144 I | [1] | HOSE AS | |
| 39 | 184-9593 I | [1] | HOSE AS | |
| 40 | 184-9595 I | [1] | HOSE AS | |
| 41 | 4I-6121 I | [1] | HOSE AS | |
| 42 | 202-4004 | [1] | GROMMET | |
| 43 | 207-6641 I | [2] | HOSE AS | |
| 44 | 215-5037 Y | [1] | MANIFOLD GP-CONTROL (PILOT OIL SUPPLY) | |
| 45 | 232-4102 Y | [1] | VALVE GP-PRESSURE REDUCING (BOOM, SWING PRIORITY) | |
| 46 | 239-9097 | [1] | PLUG AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 239-9117 | [1] | PLUG | ||
| 47 | 239-9098 | [1] | PLUG AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 239-9118 | [1] | PLUG | ||
| 48 | 275-1624 I | [1] | HOSE AS | |
| 49 | 282-7566 I | [1] | HOSE AS | |
| 50 | 282-7569 I | [1] | HOSE AS | |
| 51 | 099-3649 M | [2] | BOLT (M8X1.25X40-MM) | |
| 52 | 103-1384 | [1] | GUARD | |
| 53 | 105-3484 M | [2] | BOLT-SOCKET HEAD (M10X1.5X25-MM) | |
| 54 | 123-2430 Y | [1] | VALVE GP-SHUTTLE | |
| 55 | 148-8336 | [7] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-8636 | [1] | CONNECTOR | ||
| 56 | 148-8340 | [3] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8639 | [1] | CONNECTOR | ||
| 57 | 148-8353 | [5] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9001 | [1] | ELBOW | ||
| 58 | 148-8354 | [1] | ELBOW AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-9002 | [1] | ELBOW | ||
| 59 | 148-8364 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8625 | [1] | ELBOW | ||
| 60 | 148-8367 | [1] | ELBOW AS | |
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9850 | [1] | ELBOW | ||
| 61 | 148-8378 | [9] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-8724 | [1] | ELBOW | ||
| 62 | 148-8407 | [4] | PLUG AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9S-4191 | [1] | PLUG (9/16-18-THD) | ||
| 63 | 148-8433 | [3] | TEE AS | |
| (EACH INCLUDES) | ||||
| 6V-8397 | [2] | SEAL-O-RING | ||
| 6V-9836 | [1] | TEE-SWIVEL | ||
| 64 | 148-8435 | [4] | TEE AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [2] | SEAL-O-RING | ||
| 6V-8781 | [1] | TEE | ||
| 65 | 148-8439 | [2] | TEE AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [2] | SEAL-O-RING | ||
| 6V-8774 | [1] | TEE | ||
| 66 | 150-4044 | [3] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 8T-1779 | [1] | CONNECTOR | ||
| 67 | 164-5608 | [1] | CONNECTOR AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 8T-1687 | [1] | CONNECTOR | ||
| 68 | 3G-8054 | [1] | CLIP (TAB) | |
| 69 | 3G-8057 | [1] | CLIP (SLOT) | |
| 70 | 4K-8864 | [1] | CLIP (LOOP) | |
| 71 | 5P-7462 | [1] | CLIP (SLOT) | |
| 72 | 5P-7463 | [1] | CLIP (TAB) | |
| 73 | 6V-0683 | [1] | GROMMET | |
| 74 | 6V-0974 | [1] | GROMMET | |
| 75 | 6V-8397 | [4] | SEAL-O-RING | |
| 76 | 8T-4121 | [8] | WASHER-HARD (11X21X2.5-MM THK) | |
| 77 | 8T-4136 M | [1] | BOLT (M10X1.5X25-MM) | |
| 78 | 8T-4137 M | [4] | BOLT (M10X1.5X20-MM) | |
| 79 | 8T-4172 M | [2] | BOLT (M10X1.5X80-MM) | |
| 80 | 8T-4192 M | [3] | BOLT (M12X1.75X25-MM) | |
| 81 | 8T-4195 M | [2] | BOLT (M10X1.5X30-MM) | |
| 82 | 8T-4223 | [3] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
