708-7W-00130 7087W00130 Fan Motor ASS'Y KOMATSU Excavator Spare Parts For PC800-8E0
- 708-7W-00130 7087W00130 Fan Motor ASS'Y KOMATSU Excavator Spare Parts For PC800-8E0
- Specifiion
| Name | Fan Motor ASS'Y |
| Parts No | 708-7W-00130 7087W00130 |
| Machine Model | PC800-8 PC850-8 PC1250-8 PC2000-8 |
| egory | Cooling System, Inner Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATORS PC1250 PC1250SP PC2000 PC800 PC800SE PC850 PC850SE Komatsu
- More other motor parts fit for KOMATSU machine
| 706-75-30905 MOTOR ASS'Y,(KMFA090B) |
| PC200, PC220 |
| 20C-60-22100 MOTOR ASS'Y |
| PC12UU |
| 708-8H-00120 MOTOR ASS'Y |
| PC180, PC180L |
| 21E-60-12310 MOTOR ASS'Y,SWING (SEE FIG. 6311) |
| PW20, PW30, PW30T |
| 706-7G-01210 MOTOR ASS'Y |
| PC200, PC200LL, PC210, PC220, PC230NHD, PC240 |
| 706-77-10103 MOTOR ASS'Y |
| PC300 |
| 195-979-7910 MOTOR |
| D150A, D155A, D355A |
| 114-X11-2720 MOTOR,FRONT |
| D31A, D31P, D31PG, D31PL, D31PLL, D37P, D37PG |
| 234-950-3510 MOTOR ASS'Y,L.H. UPPER AND R.H. LOWER |
| GD305A, GD355A, GD405A, GD505A, GD605A, GD705A, GH320 |
| 706-77-01124 MOTOR ASSEMBLY, SWING |
| PC650, PC650SE, PC710, PC710SE |
| 706-7G-01130 MOTOR ASS'Y |
| PC200, PC210, PC220, PC230NHD, PC240, PC290 |
| 706-7K-03060 MOTOR SUB ASS'Y |
| PC300, PC400 |

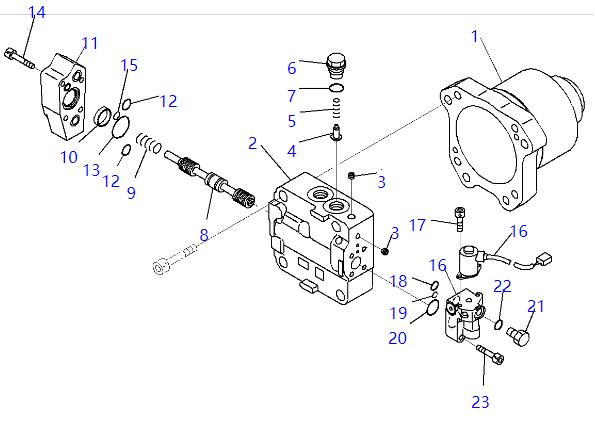

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 708-7W-00130 | [1] | Motor Assembly Komatsu | 38.003 kg. | |
| ["SN: K55001-UP"] |$0. | ||||
| 1. | 708-7W-11180 | [1] | CAASE Komatsu China | |
| ["SN: K55001-UP", "SCC: C2"] | ||||
| 708-7W-01050 | [1] | Cover Subassembly Komatsu | 6.5 kg. | |
| ["SN: K55001-UP", "SCC: C2"] |$2. | ||||
| 4. | 709-25-11650 | [1] | Valve, Check Komatsu | 0.02 kg. |
| ["SN: K55001-UP", "SCC: C2"] | ||||
| 5. | 709-25-11361 | [1] | Spring Komatsu | 0.005 kg. |
| ["SN: K55001-UP", "SCC: C2"] | ||||
| 6. | 708-7S-21610 | [1] | Plug Komatsu China | |
| ["SN: K55001-UP", "SCC: C2"] | ||||
| 7. | 07002-22434 | [1] | O-Ring Komatsu | 1.1 kg. |
| ["SN: K55001-UP"] analogs:["0700232434", "R0700222434"] | ||||
| 9. | 708-7W-18150 | [1] | Spring Komatsu China | |
| ["SN: K55001-UP", "SCC: C2"] | ||||
| 10. | 708-7W-18160 | [1] | Spacer Komatsu China | |
| ["SN: K55001-UP", "SCC: C2"] | ||||
| 11. | 708-7W-18170 | [1] | Cover Komatsu China | |
| ["SN: K55001-UP", "SCC: C2"] | ||||
| 12. | 07000-F2016 | [2] | O-Ring Komatsu | 0.001 kg. |
| ["SN: K55001-UP"] analogs:["0700022016"] | ||||
| 13. | 07000-F2035 | [1] | O-Ring Komatsu | 0.001 kg. |
| ["SN: K55001-UP"] | ||||
| 14. | 01252-60845 | [4] | Bolt Komatsu | 0.025 kg. |
| ["SN: K55001-UP"] analogs:["0125230845"] | ||||
| 15. | 07000-F2010 | [1] | O-Ring Komatsu | 0.008 kg. |
| ["SN: K55001-UP"] analogs:["0700022010"] | ||||
| 16. | 708-7W-01070 | [1] | Pilot Komatsu China | |
| ["SN: K55001-UP"] | ||||
| 17 | 01252-60616 | [2] | Bolt Komatsu | 0.007 kg. |
| ["SN: K55001-UP"] analogs:["0125230616"] | ||||
| 18 | 708-7S-18360 | [1] | O-Ring Komatsu China | |
| ["SN: K55001-UP"] | ||||
| 19 | 07000-F1008 | [1] | O-Ring Komatsu | 0.001 kg. |
| ["SN: K55001-UP"] | ||||
| 20 | 708-7S-18230 | [1] | O-Ring Komatsu | 0.001 kg. |
| ["SN: K55001-UP"] | ||||
| 21 | 07040-11007 | [1] | Plug Komatsu | 0.014 kg. |
| ["SN: K55001-UP"] | ||||
| 22 | 07002-21023 | [1] | O-Ring Komatsu | 0.22 kg. |
| ["SN: K55001-UP"] | ||||
| 23. | 01252-60835 | [4] | Bolt Komatsu | 0.021 kg. |
| ["SN: K55001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
