• 708-3T-14114 7083T14114 Piston Sub Assy Support For KOMATSU Excavator PC78MR PC78US

• ​Specifiion

• Compatible models

EXCAVATORS PC78MR PC78US PC78UU PC88MR Komatsu

• alog parts list

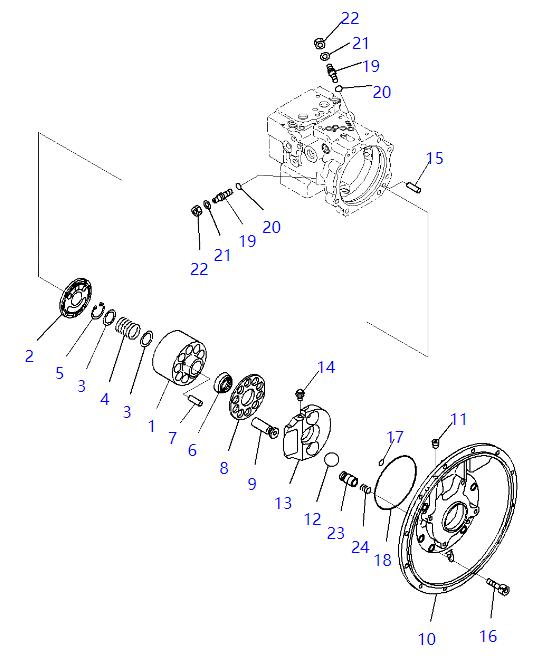

Pos.	Part No	Qty	Parts name	Comments
	708-3T-00260	[1]	Pump Assembly Komatsu	67 kg.
			["SN: 5001-5431", "SCC: A2"] |$0.
	708-3T-04210	[1]	Block Assembly Komatsu	4.08 kg.
			["SN: 5001-@"] |$1.
3	708-1W-23130	[2]	Seat Komatsu	0.016 kg.
			["SN: 5001-@", "SCC: C2"]
4	708-3T-13150	[1]	Spring Komatsu China
			["SN: 5001-@", "SCC: C2"]
5	04065-04218	[1]	Ring, Snap Komatsu	0.005 kg.
			["SN: 5001-@", "SCC: C2"]
6	708-3T-13351	[1]	Guide, Retainer Komatsu China
			["SN: 5001-@", "SCC: C2"]
7	708-3T-13360	[3]	Pin Komatsu	0.006 kg.
			["SN: 5001-@", "SCC: C2"]
8	708-3T-13340	[1]	Retainer, Shoe Komatsu China
			["SN: 5001-@", "SCC: C2"]
9	708-3T-13312	[10]	Piston Subassembly Komatsu	0.15 kg.
			["SN: 5001-@", "SCC: C2"]
	708-3T-04220	[1]	Flange Assembly Komatsu China
			["SN: 5001-5431"] |$11.
12	708-3T-13421	[2]	Ball Komatsu	0.42 kg.
			["SN: 5001-5431", "SCC: C2"]
13	708-3T-13412	[1]	Cam, Rocker Komatsu China
			["SN: 5001-@", "SCC: C2"]
14	708-3T-13451	[1]	Stud Komatsu China
			["SN: 5001-@", "SCC: C2"] analogs:["7083T13450"]
15	04020-01024	[1]	Pin, Dowel Komatsu	0.015 kg.
			["SN: 5001-@", "SCC: C2"] analogs:["PZF890001197"]
16	01252-61235	[8]	Bolt, Hexagon Socket Head Komatsu	0.048 kg.
			["SN: 5001-@"] analogs:["801105554", "0125231235"]
17	07000-B2012	[1]	O-ring Komatsu China	0.001 kg.
			["SN: 5001-@"]
18	708-7T-51210	[1]	O-ring Komatsu	0.01 kg.
			["SN: 5001-@"]
19	708-3T-14222	[2]	Plug Komatsu China
			["SN: 5001-5431"]
20	07000-12010	[2]	O-ring Komatsu	0.001 kg.
			["SN: 5001-@"] analogs:["YM24311240100", "0700002010"]
21	01643-51232	[2]	Washer Komatsu	0.024 kg.
			["SN: 5001-@"]
22	01582-11210	[2]	Nut Komatsu	0.015 kg.
			["SN: 5001-@"]
23	708-3T-14114	[2]	Piston Subassembly Komatsu	0.112 kg.
			["SN: 5001-5431", "SCC: C2"]
24	708-3T-14120	[2]	Spring Komatsu	0.002 kg.
			["SN: 5001-@", "SCC: C2"]
