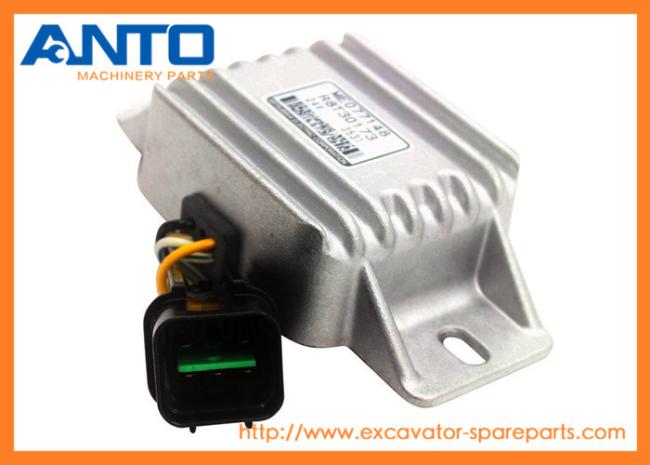

ME077148 R8T30173 Starter Safety Relay Applied To Kobelco SK200-6 SK235 Excavator Spare Parts
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- ME077148 R8T30173 Starter Safety Relay Applied To Kobelco SK200-6 SK235 Excavator Spare Parts
- Spec Sheet
| Excavator spare parts name | Starter Safety Relay |
| Equipment Model | Kobelco SK200-6E SK235-1 |
| Parts egory | Excavator electrical system |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Appliion
HEAVY EQUIPMENT SK200-6ES SK200LC-6ES SK235SR-1E SK235SR-1ES SK235SRLC-1E SK235SRLC-1ES SK235SRNLC-1E SK235SRNLC-1ES Kobelco

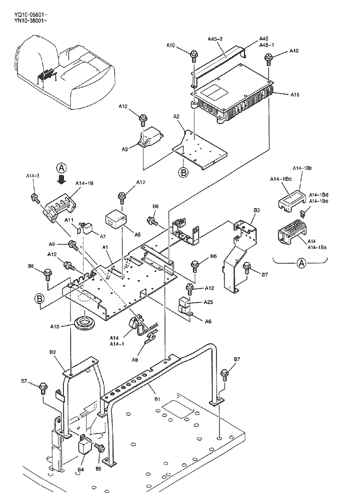

- Parts Diagram
| Pos. | Part No | Parts name | QTY | Comments |
| . . | YN22E00177F1 | [1] | CONTROLLER ASSY, Serial Range: YQ10-05501-YQ10-05611 | |
| . . | YN22E00212F1 | [1] | CONTROLLER ASSY, Start Serial: YQ10-05612 | |
| A1. | YN22E01147P2 | [1] | BOX | KOB |
| A2. | YN22E01141P1 | [1] | PLATE | KOB |
| A5. | YT24E00001F1 | [1] | RELAY | KOB ASSY (WIPER & WASHER) |
| A6. | EN24S00008P1 | [2] | RELAY | KOB (5 Spade Relay) |
| A7. | YX50E00002F1 | [1] | SWITCH | KOB ASSY (SWING PARKING RELEASE) |
| A8. | YN22E01139P1 | [1] | PLATE | KOB |
| A9. | ZM66C05016 | [2] | BOLT | KOB M05 x 0.8 x 16mm (Incls. Washer & Lockwasher) |
| A10. | ZM61C06030 | [4] | BOLT | KOB M06 x 1.0 x 30mm (Incls. Washer & Lockwasher) |
| A11. | YN22M01014P1 | [1] | LABEL | KOB Swing Parking Brake Release Lock and Normal |
| A12. | ZM61C06016 | [7] | BOLT | KOB M06 x 1.0 x 16mm (Incls. Washer & Lockwasher) |
| A13. | 2420Z699 | [1] | GROMMET | KOB |
| A14. | YN14E00046F1 | [1] | HARNESS | KOB HARNESS ASSY, CAB |
| A14-1. | YN14E01082P1 | [1] | HARNESS | KOB |
| A14-1B. | LQ73E00001F1 | [1] | FUSE | KOB ASSY |
| A14-1BA. | YN73E00001S001 | [1] | BASE | KOB |
| A14-1BA. | YN73E00001S002 | [1] | COVER | KOB |
| A14-1BC. | LQ73E01001P1 | [1] | LABEL | |
| A14-1BD. | 2479R655S8 | [10] | FUSE,10 Amp | KOB 10 Amp Superseded by part number: 87522597 |
| A14-1BE. | 2479R655S9 | [11] | FUSE,20 Amp | KOB 20 Amp |
| A14-2. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOB M06 x 1.0 x 16mm |
| A14-3. | ZM61C06020 | [8] | BOLT | KOB M06 x 1.0 x 20mm (Incls. Washer & Lockwasher) |
| A14-4. | YN03E01001D5 | [11] | CLIP | KOB 195mm Long (7-43/64 in) Black |
| A14-5. | ZW26X06000 | [2] | LOCK WASHER | KOB ID 06 x OD 07 x Th 1.5mm |
| A14-6. | ZW16X06000 | [2] | WASHER | KOB ID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| A16. | YN22E00142F2 | [1] | CONTROLLER ASSY (MECHA-TRO), Serial Range: YQ10-05501-YQ10-05611 | |
| . . | YN22E00142F3 | [1] | CONTROLLER ASSY (MECHA-TRO), Start Serial: YQ10-05612 | |
| A25. | LC24S00001P1 | [2] | RELAY | KOB (5 Spade Relay) - Travel Alarm |
| A45. | YN04E01001P1 | [1] | COVER | KOB BRACKET, Start Serial: YQ10-05612 |
| A45-1. | YN04E01002P1 | [1] | BRACKET | |
| A45-2. | YN04E01003P1 | [1] | RUBBER | |
| A3. | ME077148 | [1] | STARTER SAFETY RELAY | |
| . . | YN22E00140F1 | [1] | CONTROLLER INSTAL | |
| B1. | YN22E01121P1 | [1] | SUPPORT | KOB |
| B2. | YN22E01145P1 | [1] | SUPPORT | KOB |
| B3. | YN22E01149P2 | [1] | BRACKET | KOB |
| B4. | YN25S00001P1 | [1] | TIMER | KOB |
| B5. | ZM66C06025 | [1] | BOLT | KOB M06 x 1.0 x 25mm (Incls. Washer & Lockwasher) |
| B6. | ZM32C10025 | [5] | BOLT | KOB M10 x 1.50 x 25mm (Incls. Washer & Lockwasher) |
| B7. | ZM22C10030 | [6] | BOLT | KOB M10 x 1.50 x 30mm (Incls. Washer & Lockwasher) |

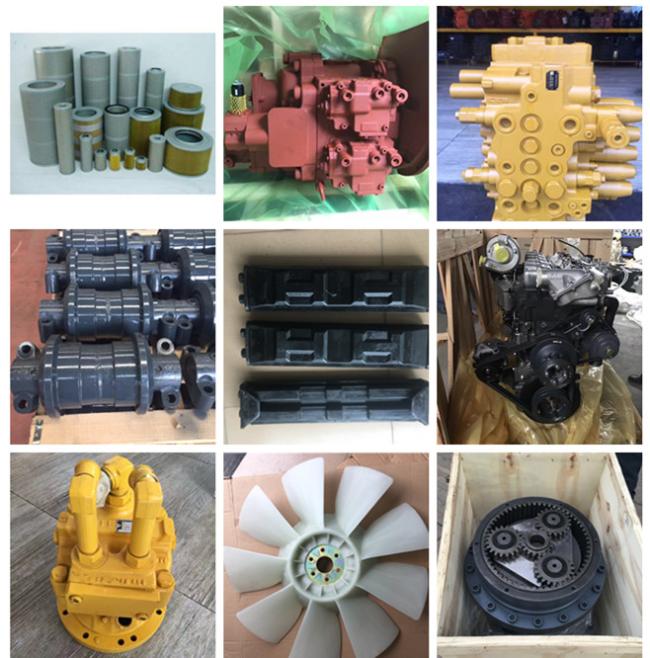

Other excavator parts we can supply
| Undercarriage parts | track chain, track shoe/pad, track roller, carrier roller, front idler, Sprocket, track recoil spring |
| Engine parts | Engine assembly, cylinder block, cylinder head, gasket kit, liner kit, fuel pump, water pump, oil pump, fuel injector, Exhaust Intake manifold, Turbocharger |
| Hydraulic parts | Hydraulic pump, Hydraulic motor, Main Control Valve, Hydraulic boom bucket stick cylinder |
| GET Parts | Bucket, tooth, Breaker.. |
| Filter | Air filter, hydraulic filter, oil filter, fuel filter, pilot filter |
| Electric parts | CPU Controller, wire harness, sensor, accel motor… |
| Gearbox system | Final drive, swing gearbox, travel motor, swing motor, slewing bearing |
- We are able to supply parts fitting for other brands of excavator
Warranty
1. Parts with quality problem can be replaced
2. Warranty Period:
Supply 3, 6, 12 months warranty for the products from the date of arrival. Customer should check the
items according to the order list after arrival. Contact with us and offer the data, photos of the problem
items.
3. You need to pay for the replacement charge for following condition
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation.
* The machine and the parts work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
