Final Drive Spare Parts 227-6133 Fit For Excavator 322C 324D
- Final Drive Spare Parts 227-6133 Fit For Excavator 322C 324D
- Product Specifiions
| Parts Name | 324D Final Drive |
| Appliion | |
| egory | Excavator Final Drive |
| Item Condition | Unused, undamaged, brand new |
| MOQ | 1 |

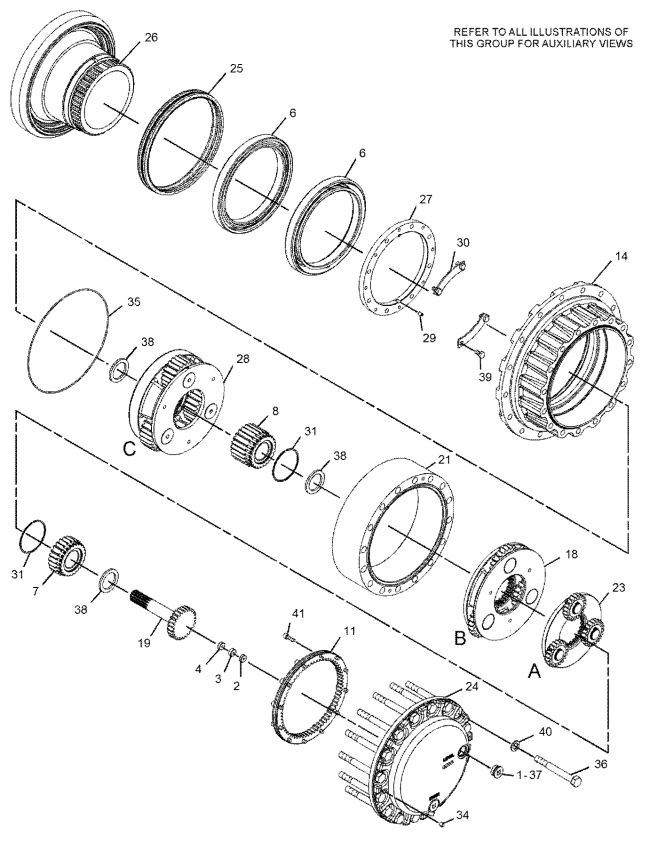

INDIVIDUAL PARTS:
PLUG-PIPE
2.094-0578[1] -
PLATE (8-MM THK)
3.094-0579[1] -
PLATE (9-MM THK)
4.094-0580[1] -
PLATE (10-MM THK)
5.094-1528 M[12] -
WASHER (53X84X1-MM THK)
6.168-8452 J[2] -
BALL BEARING
7.169-5589[1] -
GEAR-SUN (24-TEETH)
8.169-5590[1] -
GEAR-SUN (24-TEETH)
9.169-5592[3] -
GEAR-PLANETARY (23-TEETH)
10.169-5593[3] -
GEAR-PLANETARY (23-TEETH)
11.169-5594[1] -
GEAR-RING (65-TEETH)
12.169-5601[3] -
SHAFT-PLANETARY
13.169-5602[3] -
SHAFT-PLANETARY
14.169-5608 J[1] -
HOUSING
15.171-9297[6] -
WASHER (34.3X62X1-MM THK)
16.191-2569[3] -
BEARING AS (CAGED ROLLER)
17.191-2570[6] -
BEARING AS (CAGED ROLLER)
18.191-2571[1] -
CARRIER-PLANETARY
19.191-2674[1] -
GEAR-SUN (25-TEETH)
20.191-2675[3] -
GEAR-PLANETARY (20-TEETH)
21.191-2676[1] -
GEAR-RING (72-TEETH)
22.191-2677[3] -
BEARING AS (CAGED ROLLER)
23.191-2678[1] -
CARRIER AS
24.199-4503[1] -
COVER
25.207-1571 J[1] -
SEAL GP-DUO-CONE
214-3570[2] -
RING-TORIC
26.227-6117 J[1] -
HOUSING-MOTOR
27.227-6118 J[1] -
RETAINER
28.227-6119[1] -
CARRIER-PLANETARY
29.227-6123 J[2] -
DOWEL
30.227-6124 J[2] -
PLATE-WASHER
31.093-1731[2] -
RING-RETAINING
32.095-0891[6] -
PIN-SPRING
33.096-0433[3] -
RING-RETAINING
34.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
35.171-9298[1] -
SEAL-O-RING
36.179-8733 M[16] -
BOLT (M20X2.5X170-MM)
37.7M-8485[2] -
SEAL-O-RING
38.7Y-0595[3] -
SPACER (58X79.6X6-MM THK)
39.8T-0293 JM[4] -
BOLT (M12X1.75X20-MM)
40.8T-4123[16] -
WASHER (3.62X5.75X0.375-MM THK)
41.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)
- Description
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
- Advantage
-We have 8 years of experience in excavator parts, We know exactly the customers' needs.
-we can supply either China made good quality aftermarket parts, or for genuine original parts, imported parts for Korea and Japan.
- Warranty
1. Warranty Type:
We will replace the product that have quality problem.
2. Warranty Period:
Supply 3, 6, 12 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival. Contact with us and offer the data, photos of the problem items.
3. You need to pay for the replacement charge for following condition:
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation.
* The machine and the parts work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
4. Others
They are the product easy to be rust away, please wrap them well. If there is any problem about the products, installation or maintenance, please contact with us any time. We reserve the rights of final interpretation.

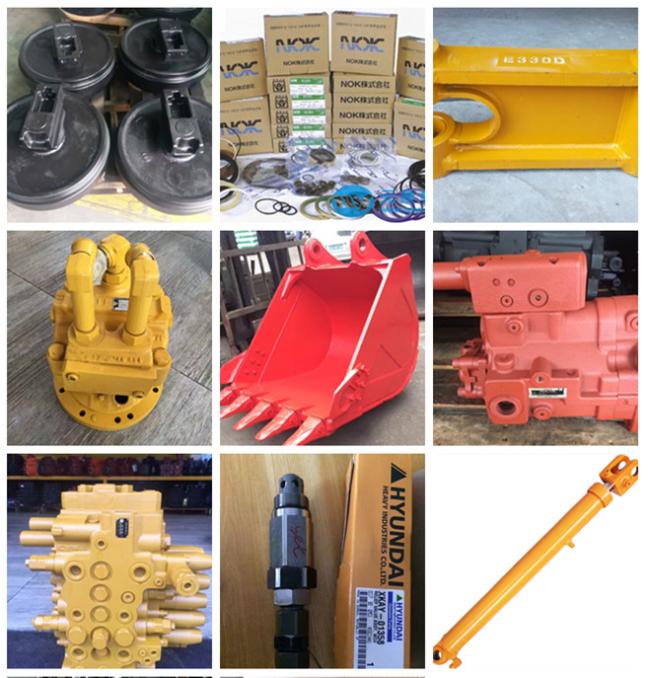

- Other parts we can supply
| Undercarriage parts | track chain, track shoe/pad, track roller, carrier roller, front idler, Sprocket, track recoil spring |
| Engine parts | Engine assembly, cylinder block, cylinder head, gasket kit, liner kit, fuel pump, water pump, oil pump, fuel injector, Exhaust Intake manifold, Turbocharger |
| Hydraulic parts | Hydraulic pump, Hydraulic motor, Main Control Valve, Hydraulic boom bucket stick cylinder |
| GET Parts | Bucket, tooth, Breaker.. |
| Filter | Air filter, hydraulic filter, oil filter, fuel filter, pilot filter |
| Electric parts | Controller, wire harness, sensor… |
| Gearbox system | Final drive, swing gearbox, travel motor, swing motor, slewing bearing |
